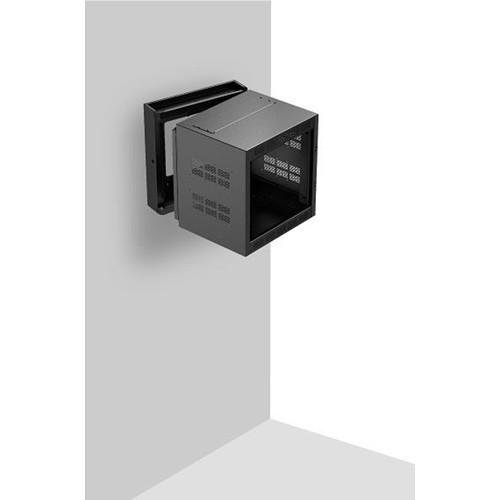

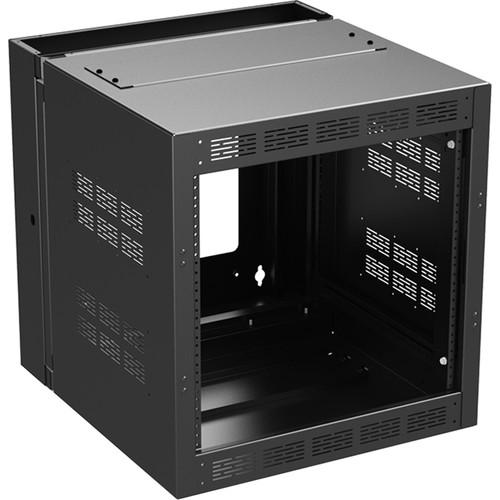

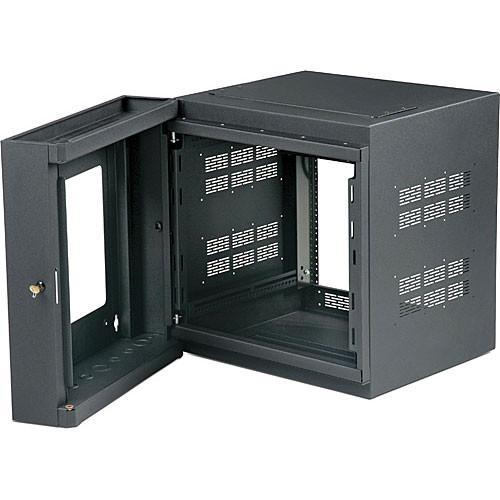

Product description The WMA-10-23 23.5" Deep Wall Cabinet (10U) from Atlas Sound is a wall-mount assembly (WMA) cabinet designed to accommodate deep components. The unit can be mounted on any structurally sound concrete wall or in steel or wood wall studs. Once mounted, the front section of the cabinet swings open for quick and easy access to the back panels of your equipment and its cabling.
The cabinet features the Atlas "alignment frame," which makes for a more solid design by providing support throughout the complete center section. Its side-lock security system also strengthens the cabinet with a design that joins the center section to the back pan. Rack rails in this unit can be fully adjusted from front to rear. Moreover, rack rails feature hash marks to indicate rack increments.
The back pan includes raised mounting embosses to accommodate power units and other accessories. It also features a knockout, allowing for easy cable access through the mounting surface. Internal braces and multiple knockouts on the bottom and top of the rack further facilitate cable management.
This unit can be customized with a wide range of add-on accessories, including solid or perforated front doors, rear rack rails, side-mount fans, and fan panels. The cabinet is constructed of steel and features a black electrostatic powder-coat finish. - Wall-Mount Enclosure
- Move your components from the floor or your desktop and mount them on the wall with this convenient unit, giving you more work area real estate and easier access to your equipment.
- Solid Construction
- This unit includes several unique design features to ensure its durability, including a specially aligned frame, a side-lock system, and internal braces.
- Cable Management
- The cabinet includes numerous knockouts to facilitate the management of abundant cabling.
- Customization
- A number of add-on accessories are available for this unit, allowing you to build a custom system that meets your exact needs.
UPC: 612079128990 In the Box Atlas Sound WMA-10-23 23.5" Deep Wall Cabinet (10U) Cabinet 2 x Front Rack Rails (One Pair) 100 x 10/32 x 3/4" Rack Screws with Captive Washers Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound WMA-10-23 23.5" Deep Wall Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound WMA10-23 Specs | Construction | Steel | | Finish | Black electrostatic powder coat | | Shelf | None | | Cabinet | 10U | | Mobility | None | | Dimensions (HxWxD) | 23-1/8 x 21-7/8 x 23-9/16" (58.74 x 55.56 x 59.84cm)
5-9/16" (rear section depth)
18" (center section depth)
17-1/2" (panel opening) | | Weight Capacity | 200 lbs | | Weight | 106 lbs (48.08kg) shipping weight |
