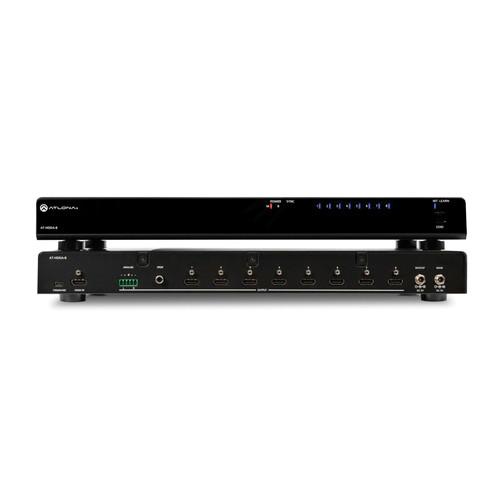

User Manual for Atlona 1 x 8 HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Atlona 1 x 8 HDMI Distribution
- Product category: Distribution Amplifiers (DA's) Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Distribution Amplifiers (DA's)
|
User manual for the Atlona 1 x 8 HDMI Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The Atlona 1 x 8 HDMI Distribution Amplifier supports resolutions up to 4K 4096 x 2160@24Hz and automatically de-embeds incoming audio for output via S/PDIF and Phoenix connectors. It also supports 3D video in up to 36 bit.
De-embedded audio isn't down-converted, so the S/PDIF output supports up to 5.1 Dolby Digital or 5.1 DTS formats and the Phoenix output supports up to 2 channels (front left/front right, or stereo). The S/PDIF output is also dependent on the capacity of the optional receiver required on its output end. The S/PDIF, Phoenix, and HDMI outputs can output audio at the same time.
Reference EDID is learned from the first connected output display and mirrored to all outputs, ensuring an uninterrupted A/V signal. Cascading is supported four levels deep in up to 1080p (4K x 2K cascading not supported). The HDMI input/outputs support locking HDMI cables. Two power supply ports are available, one for back-up and both supporting locking power supplies. One power supply is included. LED indicators on the front panel display I/O status and power status. - Key Features
-
- Supports resolutions up to 4K 4096 x 2160@24Hz and 3D video
- Automatically de-embeds incoming audio for output via S/PDIF and Phoenix connectors
- Learns reference EDID from the first connected output display and mirrors to all outputs
- Supports cascading four levels deep in up to 1080p
- Supports locking HDMI cables and power supplies
- Two power supply ports
- LED status indicators
UPC: 846352003746 In the Box Atlona 1 x 8 HDMI Distribution Amplifier 5V DC Locking Power Supply Dual Purpose Wall Mount/Rack Mount Brackets User Manual 10-Year Limited Warranty Brochure PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 1 x 8 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDDA-8 Specs | Input | 1x HDMI (3D, 4K, 1920 x 1200, Dolby TrueHD, DTS-HD Master Audio) (locking HDMI cables supported) | | Output | 8x HDMI (3D, 4K, 1920 x 1200, Dolby TrueHD, DTS-HD Master Audio) (locking HDMI cables supported)
1x Phoenix male (PCM 2 Ch L/R)
1x S/PDIF (PCM 2 Ch, LPCM 5.1, Dolby Digital, DTS 5.1) | | USB | Mini USB for firmware updating | | Resolutions Supported | 4096 x 2160@24 Hz
3840 x 2160@24/25/30 Hz
1080p@23.98/24/25/29.97/30/50/59.94/60 Hz
1080i@50/59.94/60 Hz
720p@50/59.94/60 Hz
576p@50 Hz
576i@50 Hz
480p@59.94/60 Hz
480i@60 Hz
VESA:
1600 x 1200@60 Hz
1600 x 900@60 Hz
1680 x 1050@60 Hz
1920 x 1200@60 Hz
800 x 600@60/75 Hz
1024 x 768@60/75 Hz
1280 x 768@60/75 Hz
1280 x 800@60 Hz
1280 x 1024@60/75 Hz
1366 x 768@60 Hz
1440 x 900@60/75 Hz
1400 x 1050@60 Hz | | Color Spaces Supported | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | | Color Depth Supported | 10-bit, 12-bit | | Audio Formats Supported | PCM 2 Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio | | Audio Sampling Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Transmission Distance Supported | HDMI Input: 50 ft (15 m) @ 1080p 8-bit
HDMI Output: 30 ft (9 m) @ 1080p 12-bit | | Bandwidth | 10.2 Gbps | | HDCP Compliant | Yes | | CEC Compliant | No | | Certification | Power Supply: CE, FCC, RoHS, cULus | | Power Supply | Input: 100 - 240 VAC 50/60 Hz
Output: 5 VDC / 3 A | | Power Consumption | 14.3 W | | Rack Height | 1 RU | | Dimensions | 1.7 x 17 x 10" (4 x 43 x 25 cm)
2.2 x 17 x 10" (5.6 x 43 x 25 cm) | | Weight | 6.1 lb (2.8 kg) | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 22.7 x 15.3 x 4.1" |
