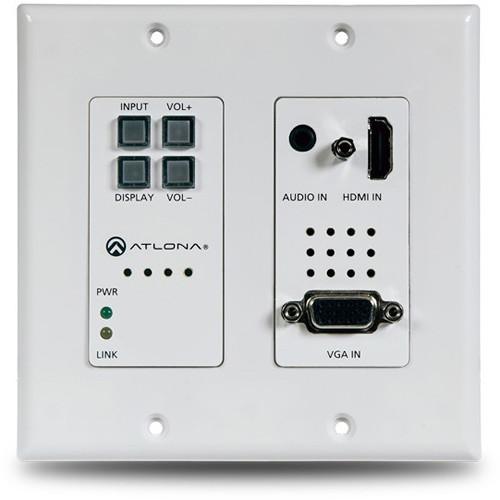

Product description The 2x1 HDMI & VGA Wall Plate Switcher from Atlona features a two-gang, Decora form factor with an HDMI and VGA input, and an always-on 3.5mm audio connector. Signal support includes HDMI up to 4K/UHD @ 60 Hz (YUV 4:2:0 color sub-sampling), VGA input signals up to 1920 × 1200, embedded audio, and control signals which can be extended up to 328’. The switcher receives power from the AT-HDVS-200-RX scaler via Power over Ethernet, and together they create a standalone AV switching and control system with scaling. Display control and volume commands are transmitted via CEC, IP, or RS-232 to any display, control system, switcher, or other controllable device.The wall plate switcher can be the central component of small, automated AV systems for classrooms and huddle rooms. The automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display turns off. Volume is controlled via the front panel or other control signals. Automatic input selection on the switcher works by sensing the presence of any video signal. With automatic input selection, manual control systems can be eliminated.Using the AT-PS-POE (not included), the switcher can connect directly to Atlona HDBaseT receivers, such as the AT-UHD-EX-100CE-RX, or projectors with HDBaseT inputs, enabling simplified control and adding legacy VGA inputs at the HDVS. - 2x1 HDBaseT Switcher
-
- Features one HDMI input, a VGA input, and 3.5mm audio connector
- Allows advanced HDMI display devices to be used with legacy VGA sources
- Automatic Display Control
-
- Automatically changes projector power state based on active or standby mode of switcher; control signals are transmitted via CEC, IP, or RS-232
- Eliminates need for complex control system in AV systems; CEC enables control of low-cost consumer displays
- Automatic Input Selection Using Video Detection Technology
-
- Selects active input when sources are connected
- Eliminates need for a complex control system in AV systems
- TCP/IP and RS-232 Control of Switcher
-
- Flexible control options for compatibility with third-party control systems; RS-232 controlled from HDBaseT connection
- Reduces integration time and costs
- Ethernet-Enabled, HDBaseT Extension
-
- One Ethernet connection connects both TS and RX for control and management; transmits IP and HDMI up to 328 ft
- Uses easy-to-integrate category cable for low-cost, reliable system installation; enables control of switchers (CLSO0824)
- Front Panel Input Select Button
-
- Overrides auto-switching when two active sources are present
- Simple manual control allows presenter to maintain control of AV system
- Front Panel Display On/Off Control
-
- Offers convenient user features to override auto-switching when two active sources are present
- Features display and volume control
- Simple manual controls allow presenter to maintain control of AV system
- Front Panel Volume Control
-
- Remotely controls audio volume using TCP/IP or RS-232, and provides ‘Mute’ mode
- Eliminates need for manual operation of display or use of IR remote control
- Works with Atlona AMS
-
- This IP-controllable product can be remotely managed by the Atlona Management System software
- Integrates product configuration, management, and updates to reduce installation time and enable remote support
UPC: 846352004644 In the Box Atlona 2x1 HDMI & VGA Wall Plate Switcher with HDBaseT Ethernet Output Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 2x1 HDMI & VGA Wall Plate Switcher with HDBaseT Ethernet Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-200-TX-WP Specs | Video Resolution | 4096 x 2160 @24/25/30/50/60 Hz, 3840 x 2160 @24/25/30/50/60 Hz, 2048 x 1080p, 1080p @23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @50/59.94/60 Hz,720p @50/59.94/60 Hz, 576p, 576i, 480p, 480i Supported 4096 x 2160 and 3840 x 2160 @ 50/60 Hz @ chroma sub-sampling 4:2:0 8-bit only. | | VESA | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900,1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480 (VGA input limited to a max of 1920 x 1200) | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported 4096 x 2160 and 3840 x 2160 @ 50/60 Hz @ chroma sub-sampling 4:2:0 8-bit only. | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | PCM 2-ch | | HDMI | PCM 2-ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
Cat6a/7 @ 4K: Up to 328' (100 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Yes
HDCP: 1.4 | | Certification | CE, FCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Dimension | Wall two-gang (US) | | Weight | 0.5 lb (0.2 kg) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.2 x 7.2 x 2.9" |
