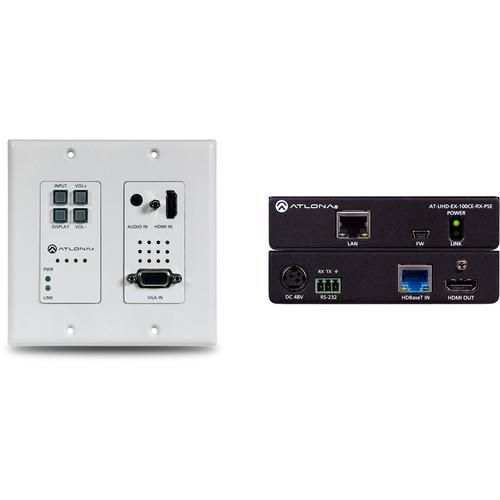

Product description The 4K HDMI/VGA over HDBaseT 2x1 Switch Wall Plate Extender Kit from Atlona consists of an HDBaseT switcher with HDMI and VGA input ports on a wall plate, and a DCI/UHD 4K HDMI over HDBaseT receiver. This switcher/transmitter and receiver combination delivers a 4K signal extension a distance up to 328', and offers automatic HDMI/VGA input switching and display control. - 2x1 HDMI & VGA Wall Plate Switcher with HDBaseT Ethernet Output The 2x1 HDMI & VGA Wall Plate Switcher from Atlona features a two-gang, Decora form factor with an HDMI and VGA input, and an always-on 3.5mm audio connector. Signal support includes HDMI up to 4K/UHD @ 60 Hz (YUV 4:2:0 color sub-sampling), VGA input signals up to 1920 × 1200, embedded audio, and control signals which can be extended up to 328’. The switcher receives power from the AT-HDVS-200-RX scaler via Power over Ethernet, and together they create a standalone AV switching and control system with scaling. Display control and volume commands are transmitted via CEC, IP, or RS-232 to any display, control system, switcher, or other controllable device.The wall plate switcher can be the central component of small, automated AV systems for classrooms and huddle rooms. The automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display turns off. Volume is controlled via the front panel or other control signals. Automatic input selection on the switcher works by sensing the presence of any video signal. With automatic input selection, manual control systems can be eliminated.Using the AT-PS-POE (not included), the switcher can connect directly to Atlona HDBaseT receivers, such as the AT-UHD-EX-100CE-RX, or projectors with HDBaseT inputs, enabling simplified control and adding legacy VGA inputs at the HDVS.
- 2x1 HDBaseT Switcher
-
- Features one HDMI input, a VGA input, and 3.5mm audio connector
- Allows advanced HDMI display devices to be used with legacy VGA sources
- Automatic Display Control
-
- Automatically changes projector power state based on active or standby mode of switcher; control signals are transmitted via CEC, IP, or RS-232
- Eliminates need for complex control system in AV systems; CEC enables control of low-cost consumer displays
- Automatic Input Selection Using Video Detection Technology
-
- Selects active input when sources are connected
- Eliminates need for a complex control system in AV systems
- TCP/IP and RS-232 Control of Switcher
-
- Flexible control options for compatibility with third-party control systems; RS-232 controlled from HDBaseT connection
- Reduces integration time and costs
- Ethernet-Enabled, HDBaseT Extension
-
- One Ethernet connection connects both TS and RX for control and management; transmits IP and HDMI up to 328 ft
- Uses easy-to-integrate category cable for low-cost, reliable system installation; enables control of switchers (CLSO0824)
- Front Panel Input Select Button
-
- Overrides auto-switching when two active sources are present
- Simple manual control allows presenter to maintain control of AV system
- Front Panel Display On/Off Control
-
- Offers convenient user features to override auto-switching when two active sources are present
- Features display and volume control
- Simple manual controls allow presenter to maintain control of AV system
- Front Panel Volume Control
-
- Remotely controls audio volume using TCP/IP or RS-232, and provides ‘Mute’ mode
- Eliminates need for manual operation of display or use of IR remote control
- Works with Atlona AMS
-
- This IP-controllable product can be remotely managed by the Atlona Management System software
- Integrates product configuration, management, and updates to reduce installation time and enable remote support
UPC: 846352004644 - 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328') The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.
- 4K/UHD Capability
- • Compatible with Ultra High Definition sources and displays
• Full support of 4K/UHD streaming services and playback devices - HDCP 2.2 Compliant
- • Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices - PSE - Power Sourcing Equipment
- • Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
• Eliminates the need for the receiver to be powered remotely or by a power-injection device - AV, Ethernet, Power, and Control over HDBaseT
- • Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display 1 Please Note: Note: Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX-PSE receiver when used with the UHD-PRO3 Series matrix switchers. close - Extended Distance HDMI Extension
- • Receives HDMI signals up to 328' @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation - Extends RS-232, CEC, and Ethernet Control Signals
- • Control signals travel over HDBaseT link to device for maximum control system flexibility
• Simplifies integration of source, control system, and display 2 Please Note: Note: The AT-UHD-EX-100CE-RX-PSE does not include I/O ports for IR control signals extended over HDBaseT. If IR over HDBaseT is required, please refer to the AT-UHD-EX-100CE-RX. close - Rear Panel I/O Connectors
- • Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter - Multi-Channel Audio Compliant
- • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
• Allows any multi-channel audio stream to be used within a professional audio system - Field Updatable Firmware
- • Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment - Front Panel Power and Link Status LEDs
- • LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting - Low-Profile 1" High Quarter-Rack Enclosure Width
- • Easy installation into confined spaces behind displays and above projectors
• Keeps devices out of sight when placed in public spaces UPC: 846352004910 In the Box Bundle Items 2x1 HDMI & VGA Wall Plate Switcher with HDBaseT Ethernet Output wfyfxbzwua 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328') Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K HDMI VGA over HDBaseT 2x1 Switch Wall Plate Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2x1 HDMI & VGA Wall Plate Switcher with HDBaseT Ethernet Output
| Video Resolution | 4096 x 2160 @24/25/30/50/60 Hz, 3840 x 2160 @24/25/30/50/60 Hz, 2048 x 1080p, 1080p @23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @50/59.94/60 Hz,720p @50/59.94/60 Hz, 576p, 576i, 480p, 480i Supported 4096 x 2160 and 3840 x 2160 @ 50/60 Hz @ chroma sub-sampling 4:2:0 8-bit only. | | VESA | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900,1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480 (VGA input limited to a max of 1920 x 1200) | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported 4096 x 2160 and 3840 x 2160 @ 50/60 Hz @ chroma sub-sampling 4:2:0 8-bit only. | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | PCM 2-ch | | HDMI | PCM 2-ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
Cat6a/7 @ 4K: Up to 328' (100 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Yes
HDCP: 1.4 | | Certification | CE, FCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Dimension | Wall two-gang (US) | | Weight | 0.5 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 11.2 x 7.2 x 2.9" | - 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328')
| Video Resolution | 4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60Hz
720p @ 50/59.94/60 Hz
576p, 576i, 480p, 480i Note: Support for 4096 x 2160 @ 50/60Hz and 3840 x 2160 @ 50/60Hz at chroma subsampling 4:2:0 8-bit only | | VESA | 2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YCbCr, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | Formats:
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass-through
HDCP: Supports up to 2.2 | | Certification | Unit: CE, FCC
Power Supply: CE, FCC, RoHS, cULus, RCM, CCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Power | Consumption: 15.2 W (When paired with TX)
Supply Input: 100~240 VAC, 50/60 Hz
Supply Output: 48 VDC /0.83 A | | Dimensions (H x W x D) | Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm)
With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 11.15 x 7.4 x 3.0" |
