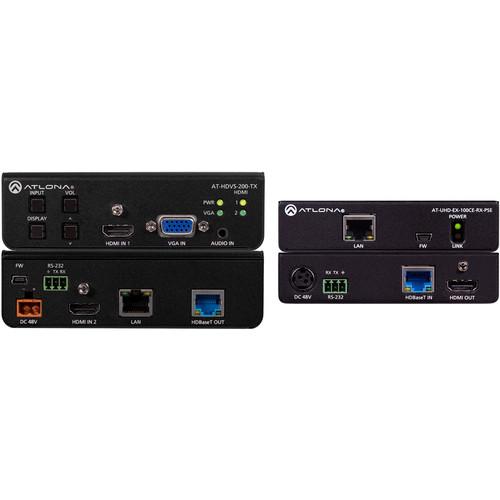

User Manual for Atlona 4K HDMI VGA over HDBaseT 3x1 Switch Extender Kit Click to enlarge the picture
Contents of the user manual for the Atlona 4K HDMI VGA over HDBaseT
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona 4K HDMI VGA over HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The 4K HDMI/VGA over HDBaseT 3x1 Switch Extender Kit from Atlona consists of an HDBaseT switcher with two HDMI inputs and one VGA input, and a DCI/UHD 4K over HDBaseT receiver. This 3x1 switcher/transmitter and receiver combination extends a 4K HDMI signal to a distance up to 328' over a Cat6a/7 cable, with automatic HDMI and VGA input switching and automatic display control. The transmitter is remotely powered by the receiver via PoE. - AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher (PoE) Make the Atlona AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher, with PoE, the center of a small automated A/V setup for a compact and versatile solution. Featuring two HDMI inputs and a VGA input with analog audio, the AT-HDVS-200-TX will accept video signals from most media players and computers and send them along an HDBaseT interface. HDBaseT carries video, audio, control, and other important signal types down a single category cable for reliable performance up to 328'. 4K video and surround-sound audio are supported via HDMI inputs. RS-232 and Ethernet ports offer options for advanced software control, in addition to the front panel buttons. No separate power supply is required as this device operates off 48V provided by the HDBaseT connection to the separately available receiver.
- General Features
-
- Auto-display control when using TCP/IP, RS-232, or CEC
- Auto-switching with video detection technology activated through RS-232, IP, or webGUI
- Control audio volume for HDBaseT output or display
- Analog audio embedding with standalone audio option
- Supports up to 4K resolutions at 60 Hz in 4:2:0 color space
- Ethernet pass-through for configuration, upgrading, and device management/control
- Supports Dolby TrueHD and DTS-HD Master Audio over HDMI
- HDCP and EDID management
UPC: 846352004637 - 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328') The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.
- 4K/UHD Capability
- • Compatible with Ultra High Definition sources and displays
• Full support of 4K/UHD streaming services and playback devices - HDCP 2.2 Compliant
- • Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices - PSE - Power Sourcing Equipment
- • Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
• Eliminates the need for the receiver to be powered remotely or by a power-injection device - AV, Ethernet, Power, and Control over HDBaseT
- • Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display 1 Please Note: Note: Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX-PSE receiver when used with the UHD-PRO3 Series matrix switchers. close - Extended Distance HDMI Extension
- • Receives HDMI signals up to 328' @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation - Extends RS-232, CEC, and Ethernet Control Signals
- • Control signals travel over HDBaseT link to device for maximum control system flexibility
• Simplifies integration of source, control system, and display 2 Please Note: Note: The AT-UHD-EX-100CE-RX-PSE does not include I/O ports for IR control signals extended over HDBaseT. If IR over HDBaseT is required, please refer to the AT-UHD-EX-100CE-RX. close - Rear Panel I/O Connectors
- • Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter - Multi-Channel Audio Compliant
- • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
• Allows any multi-channel audio stream to be used within a professional audio system - Field Updatable Firmware
- • Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment - Front Panel Power and Link Status LEDs
- • LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting - Low-Profile 1" High Quarter-Rack Enclosure Width
- • Easy installation into confined spaces behind displays and above projectors
• Keeps devices out of sight when placed in public spaces UPC: 846352004910 In the Box Bundle Items AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher (PoE) racexbxv 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328') Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K HDMI VGA over HDBaseT 3x1 Switch Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher (PoE)
| | | Resolution Support | Video:
4096 x 2160 24 / 25 / 30 / 50 / 60
3840 x 2160 24 / 35 / 30 / 50 / 60
2048 x 1080
1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i50 / 59.94 / 60
720p50 / 59.94 / 60
576p
480p
NTSC
PAL
VESA:
2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900 / 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | | | Analog | 2-Ch Stereo | | HDMI | PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio | | Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | | | Category | Cat5e/6 @ 4K: 230' (70 m)
Cat5e/6 @ HD: 328' (100 m)
Cat6a/7 @ 4K: 328' (100 m) | | HDMI | 4K: 15' (5 m)
HD: 30' (15 m) | | | | Bandwidth | 10.2 Gbps | | CEC | Yes | | HDCP | 1.4 | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 14°F (-20 to 60°C) | | Humidity | 20-90%, Non-condensing | | | | Power Consumption | 30 W | | Compliance | CE, FCC | | Dimensions | 1.5 x 5.0 x 4.0" (38 x 127 x 102 mm) | | Weight | 0.6 lb (290 g) | | | | Box Dimensions (LxWxH) | 8.8 x 7.35 x 2.95" | - 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328')
| Video Resolution | 4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60Hz
720p @ 50/59.94/60 Hz
576p, 576i, 480p, 480i Note: Support for 4096 x 2160 @ 50/60Hz and 3840 x 2160 @ 50/60Hz at chroma subsampling 4:2:0 8-bit only | | VESA | 2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YCbCr, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | Formats:
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass-through
HDCP: Supports up to 2.2 | | Certification | Unit: CE, FCC
Power Supply: CE, FCC, RoHS, cULus, RCM, CCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Power | Consumption: 15.2 W (When paired with TX)
Supply Input: 100~240 VAC, 50/60 Hz
Supply Output: 48 VDC /0.83 A | | Dimensions (H x W x D) | Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm)
With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 11.15 x 7.4 x 3.0" |
