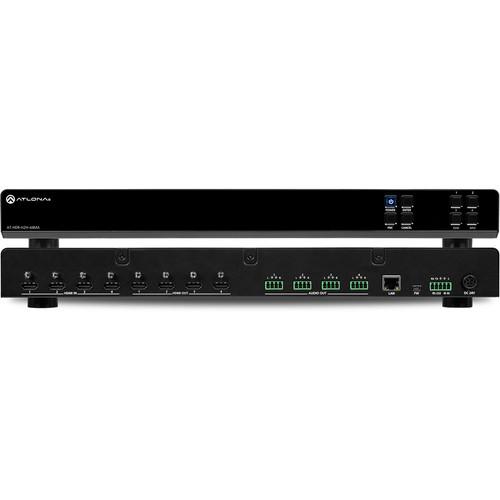

User Manual for Atlona 4K HDR 4 x 4 HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Atlona 4K HDR 4 x 4
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona 4K HDR 4 x 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The Atlona 4K HDR 4 x 4 HDMI Matrix Switcher is a 4 x 4 HDMI 2.0 switcher designed to facilitate HDR video content display. Suitable for residential and commercial applications, the AT-HDR-H2H-44MA's HDR10 and Dolby Vision compatibility enables you to view your HDR content in rich, full detail. It supports 4K, HD, and SD resolutions up to DCI 4K at 60 Hz with 4:4:4 sampling and HDMI data rates up to 18 Gb/s. Use this HDMI 2.0 switcher to route any source to any output with HDCP 2.2 content protection, EDID management, and independent CEC display control for each output.The switcher integrates with Ethernet, RS-232, or IR-based control systems and includes front-panel control buttons and an IR remote. A GUI-based integrated Web server enables easy system configuration, and provides HDCP/EDID reporting and device status. The Web GUI uses an easy, intuitive drop-down menu for fast setup and troubleshooting in the field.The AT-HDR-H2H-44MA features a 1 RU, rack-mountable form and includes rackmount brackets, and an external, international power supply. Note: The AT-HDR-H2H-44MA de-embeds HDMI two-channel PCM audio. For extracting and downmixing Dolby and DTS audio, Atlona recommends adding one or more AT-HDR-M2C audio converters. - 4 x 4 HDMI Matrix
-
- Each of the four sources can be simultaneously distributed to any or all four outputs
- Reduces redundant source equipment and integration costs; easily deployed in residential and commercial settings
- DCI 4K and UHD 4K 60 Hz Capability
-
- Compatible with 4K/UHD and HDR-capable sources and displays
- Adheres to HDCP 2.2 content protection specification
- HDR Format Support
-
- Compatible with 4K HDR10 and Dolby Vision at 60 Hz
- Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
- Integrated Web Server with GUI
-
- Provides system configuration, matrix switching, RS-232 settings, EDID and HDCP management, and audio setup
- Enables quick setup and trouble-shooting in the field using a PC or mobile device
- Ethernet, RS-232, and IR Control
-
- Flexible control options include third-party control system compatibility
- Includes a handheld IR remote control
- Front-Panel Button Controls and LCD Menu Display
-
- Control, configure, and monitor from the switcher's front panel
- HDMI Audio De-Embedding* for each Channel
-
- Extracts HDMI 2-channel PCM audio to an unbalanced analog audio output paired with a corresponding HDMI input
- Provides an additional integration option for whole-house and commercial audio systems
1 Please Note: * For extracting and downmixing Dolby and DTS audio, Atlona recommends adding one or more AT-HDR-M2C audio converters close - Multi-Channel Audio Compliant
-
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
- Enables a multi-channel audio stream to be used with a residential or professional audio system
- Field-Updatable Firmware
-
- Rear-panel USB port for easy updating of switcher
- EDID Management
-
- Manages EDID communications through a display's EDID or an internally stored EDID
- Ensures desired audio formats and video resolutions are provided to your AV system
- HDCP Management
-
- HDCP compliance can be disengaged through AMS or a control system
- Enables non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
- Rack Mountable 1 RU Enclosure
-
- Easily installs in rack-mounted systems with the included 19" rackmount brackets
- Reduces space needed for installation
In the Box Atlona 4K HDR 4 x 4 HDMI Matrix Switcher IR Remote Control 5-Pin Phoenix Connector 4 x 4-Pin Phoenix Connectors 2 x 19" Rackmount Brackets 24 VDC Power Supply 4 x Feet with Screws Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K HDR 4 x 4 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDR-H2H-44MA Specs | | | Input Connectors | HDMI: 4 x HDMI 2.0b | | Output Connectors | HDMI: 4 x HDMI 2.0b | | Video Resolution | UHD/HD/SD
4096 x 2160: 60/50/30/25/24
3840 x 2160: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i
VESA
2560 x 2048, 2560 x 1600, 2048 x 1536
1920 x 1200
1680 x 1050, 1600 x 1200, 1600 x 900
1440 x 900, 1400 x 1050
1366 x 768, 1360 x 768
1280 x 1024, 1280 x 800, 1280 x 768
1152 x 768
1024 x 768
800 x 600 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8- / 10- / 12-Bit | | HDR | HDR10 and Dolby Vision at 60 Hz | | | | HDMI Input / Output | PCM 2-Channel
LPCM 5.1, LPCM 7.1
Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
DTS-HD Master Audio, DTS:X | | Audio Connectors | Audio Out: 4 x 4-Pin Phoenix | | Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Maximum Bit Rate | 24-Bit | | | | Connectors | LAN: 1 x RJ45
RS-232: 1 x 5-Pin Phoenix
USB: 1 x USB Mini-B | | | | HDMI | In/Out at 4K: 16.4' / 5 m
In/Out at 1080p: 32.8' / 10 m | | | | Bandwidth | 18 Gb/s | | HDCP | 2.2 | | | | Certifications | CE, FCC, UL, LVD Level VI-Compliant | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Humidity (Non-Condensing) | 20 to 90% | | | | Consumption | Operating: 34.3 W
Idle: 11.1 W | | Input | 110 to 240 VAC, 50/60 Hz | | Output | 24 VDC, 2.7 A | | | | Dimensions | Unit Only: 17.2 x 10.0 x 1.7" / 438 x 254 x 44 mm
With Feet and Rack Ears: 18.9 x 10.2 x 2.2" / 481 x 260 x 55.5 mm
Rack Unit: 1 RU | | Weight | 6.1 lb / 2.77 kg |
