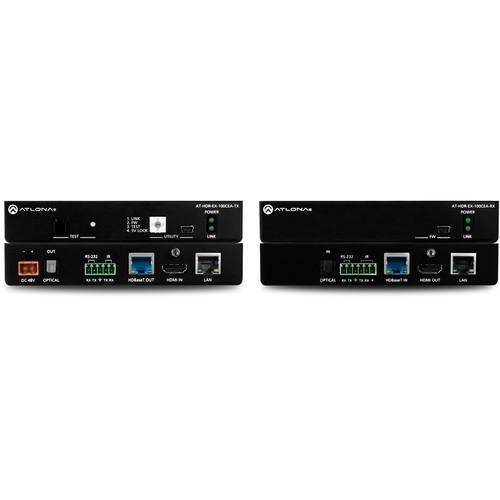

User Manual for Atlona 4K HDR HDMI HDBaseT Transmitter and Receiver Set with Ethernet, Control, PoE and Return Audio Click to enlarge the picture
Contents of the user manual for the Atlona 4K HDR HDMI HDBaseT Transmitter
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona 4K HDR HDMI HDBaseT Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Transmit up to DCI 4K/60 and HDR content with visually lossless compression using the Atlona 4K HDR HDMI HDBaseT Transmitter and Receiver Kit with Ethernet, Control, PoE and Return Audio. Suitable for use in residential, commercial, and professional AV applications. The extender applies minimal compression and carries content at data rates from 10 to 18 Gb/s. This allows transmission of DCI 4K video at 60 Hz and 4:4:4 sampling or 4K HDR10 video at 60 Hz over a single Cat 5e - Cat 7 cable, enabling you to connect 4K and HDR sources and displays. At the same time, the extender supports all audio and color space formats supported by the HDMI 2.0b specification.
The transmitter/receiver kit passes IR and RS-232 control, as well as passing Metadata for your HDR content. It can transmit up to 330' when using Cat 6 or better cable, distance is lessened when using Cat 5e cable. An optical audio return (TOSLINK) from television to an AV receiver is supported. The system requires only a single 48-volt power supply connected to the transmitter. - 4K / 4:4:4 Sampling / HDR
-
- DCI and UHD 4K capability at 60 Hz with 4:4:4 chroma sampling
- Compatible with 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
- Ideal for DCI/UHD and HDR-capable sources and displays
- Supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
- HDCP 2.2 Compliant
- Allows protected content streams to pass between devices
- Up to 330 ft Extension
- Extends 4K and 1080p video and audio up to 330'
- Visually Lossless Compression
- HDBaseT transmission of HDMI signals at up to 18 Gb/s using very light video compression with no latency
- Multi-Channel Audio Compliant
-
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
- Allows any multi-channel audio stream to be used within a professional audio system
- HDBaseT Link Status Testing
-
- Free software utility available for download to test the integrity of the HDBaseT cable link between the transmitter and the receiver
- Provides real-time link status, plus detailed HDBaseT and HDMI signal information
- Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality
- Rear Panel I/O Connectors
-
- Rear panel ports allow for simplified cable management and less clutter
- Field-Updatable Firmware
-
- Front panel USB port for device updates
- Power and Link Status LEDs
-
- LED indicators provide power and HDBaseT link status information
- Low-Profile
-
- 1"-high, quarter-rack-width enclosure
- Keeps devices out of sight when placed in public spaces
- 5 Volt and Hot Plug Detect emulation for HDMI source and sink communications
- Restores +5 volt and HPD signals lost due to issues at the source or display, as well as faulty or long cables. Enables the essential signal handshaking necessary for the source to deliver video content
- EDID Support
- Supports EDID emulation over the Ethernet cable
UPC: 846352005795 In the Box Atlona 4K HDR HDMI HDBaseT Transmitter and Receiver Set with Ethernet, Control, PoE and Return Audio (330') 4 x Mounting Brackets 8 x Mounting Screws 5-Pin Captive Screw Connector 6-Pin Captive Screw Connector 48 VDC Power Supply IR Emitter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K HDR HDMI HDBaseT Transmitter and Receiver Set with Ethernet, Control, PoE and Return Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDR-EX-100CEA-KIT Specs | Supported Resolutions | Video
4096 x 2160: 60/50/30/25/24
3840 x 2160: 60/50/30/25/24
2048 x 1080p
1920 x 1080p: 60/59.94/50/30/29.97/35/24/23.98
1920 x 1080i 60/59.94/50
1280 x 720p at 60/59.94/50
576p/576i
480p/480i
VESA
2560 x 2048
2560 x 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024
1280 x 800
1280 x 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-, 10-, 12-bit | | HDR | 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz | | Audio Formats | PCM 2 channel
LPCM 5.1
LPCM 7.1
Dolby Digital
DTS 5.1
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Dolby Atmos
DTS:X | | Audio Sample Rate | 32 kHz
44.1 kHz
48 kHz
88.2 kHz
96 kHz
176.4 kHz
192 kHz | | Audio Bit Rate | Up to 24-bit | | Distance | 4K/HD over Cat 6a/7: Up to 330' / 100.58 m
4K/HD over Cat 5e/6: Up to 295.00' / 89.92 m | | Bandwidth | 18 Gb/s | | HDMI | 2.0b | | CEC | Yes | | HDCP | 2.2 | | TMDS Clock Frequency | Max: 600 MHz | | Connectors | Transmitter
HDMI In: 1 x Type A
USB: 1 x Mini -A
RS-232 / IR: 1 x 5-pin captive screw
HDBaseT: 1 x RJ45
LAN: 1 x RJ45
Optical Out: 1 x TOSLINK
Power: 1 x 2-pin captive screw
Receiver
HDMI Out: 1 x Type A
USB: 1 x Mini -A
RS-232 / IR: 1 x 6-pin captive screw
HDBaseT: 1 x RJ45
LAN: 1 x RJ45
Optical In: 1 x TOSLINK | | Indicators & Controls | Test Button: 1 x Momentary, Tact-type
Test LED: 1 x Tri-color LED (green, amber, red)
Power LED: 1 x Green
Link LED: 1 x Amber | | Certification | CE, FCC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 20 to 90%, non-condensing | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Power Consumption | Transmitter: 5.25 W
Receiver: 7.55 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 48 VDC, 0.83 A
Certification: CE, FCC, cULus, RoHS, CCC, RCM | | Dimensions | Transmitter: 1.02 x 5.74 x 3.74" / 2.59 x 14.58 x 9.5 cm
Receiver: 1.02 x 5.74 x 3.81" / 2.59 x 14.58 x 9.68 cm | | Weight | Transmitter: 0.89 lb / 0.4 kg
Receiver: 0.87 lb / 0.4 kg | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 13.7 x 8.1 x 2.6" |
