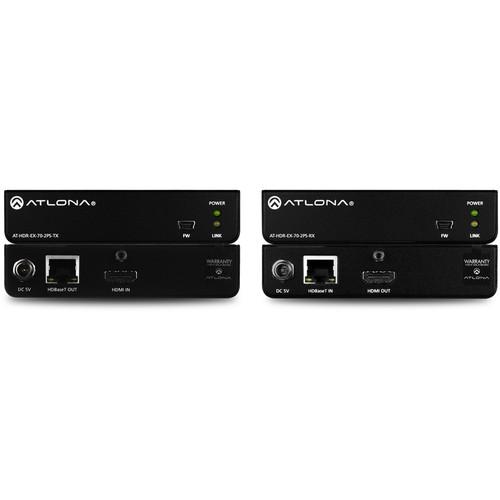

User Manual for Atlona 4K HDR HDMI Over HDBaseT Transmitter & Receiver Kit Click to enlarge the picture
Contents of the user manual for the Atlona 4K HDR HDMI Over HDBaseT
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona 4K HDR HDMI Over HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Transmit up to DCI 4K/60 and HDR content with visually lossless compression using the Atlona 4K HDR HDMI Over HDBaseT Transmitter & Receiver Kit. The extender applies minimal compression and carries content at data rates from 10 to 18 Gbps. This allows transmission of DCI 4K video at 60 Hz and 4:4:4 sampling or 4K HDR10 video at 60 Hz over a single Cat 5e - Cat 7 cable, enabling you to connect 4K and HDR sources and displays. At the same time, the extender supports all audio and color space formats supported by the HDMI 2.0b specification. Moreover, it is capable of passing metadata for HDR content. - 4K / 4:4:4 Sampling / HDR
-
- DCI and UHD 4K capability at 60 Hz with 4:4:4 chroma sampling
- Compatible with 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
- Ideal for DCI/UHD and HDR-capable sources and displays
- Supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
- HDCP 2.2 Compliant
-
- Allows protected content streams to pass between devices
- Up to 230 ft Extension
-
- Extend 4K video up to 130 ft and 1080p up to 230 ft
- Visually Lossless Compression
-
- HDBaseT transmission of HDMI signals at up to 18 Gbps using very light video compression with no latency
- Multi-Channel Audio Compliant
-
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
- Allows any multi-channel audio stream to be used within a professional audio system
- HDBaseT Link Status Testing
-
- Free software utility available for download to test the integrity of the HDBaseT cable link between the transmitter and the receiver
- Provides real-time link status, plus detailed HDBaseT and HDMI signal information
- Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality
- Rear Panel I/O Connectors
-
- Rear panel ports allow for simplified cable management and less clutter
- Field-Updatable Firmware
-
- Front panel USB port for device updates
- Power and Link Status LEDs
-
- LED indicators provide power and HDBaseT link status information
- Low-Profile
-
- 1"-high, quarter-rack-width enclosure
- Keeps devices out of sight when placed in public spaces
UPC: 846352005597 In the Box Atlona 4K HDR HDMI Over HDBaseT Transmitter & Receiver Kit Surface Mounting Brackets 2 x External Universal Power Supplies Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K HDR HDMI Over HDBaseT Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDR-EX-70-2PS Specs | Supported Resolutions | 4096 x 2160 at 24/25/30/50/60 Hz, 3840 x 2160 at 24/25/30/50/60 Hz, 2048 x 1080p, 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz, 1920 x 1080i at 50/59.94/60 Hz, 1280 x 720p at 50/59.94/60 Hz, 576p/576i, 480p/480i
VESA:
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | HDR | 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz | | Audio Formats | PCM 2 channel, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | | Audio Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Audio Bit Rate | Up to 24-bit | | Distance | 4K over Cat 6a/7: Up to 130 ft (40 m)
4K over Cat 5e/6: Up to 115 ft (35 m)
4K HDMI I/O: Up to 15 ft (5 m)
1080p over Cat 6a/7: Up to 230 ft (70 m)
1080p over Cat 5e/6: Up to 200 ft (60 m)
1080p HDMI I/O: Up to 30 ft (10 m) | | Bandwidth | 18 Gbps | | CEC | Yes | | HDCP | 2.2 | | Certification | CE, FCC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 20 to 90%, non-condensing | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Power Consumption | Transmitter: 4 W
Receiver: 5.9 W | | Idle Consumption | Transmitter: 1.32 W
Receiver: 3.55 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 5 VDC | | Dimensions | 1 x 4.3 x 3" (25 x 11 x 7.6 cm) | | Weight | 0.5 lb (0.22 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 11.2 x 7.2 x 3.2" |
