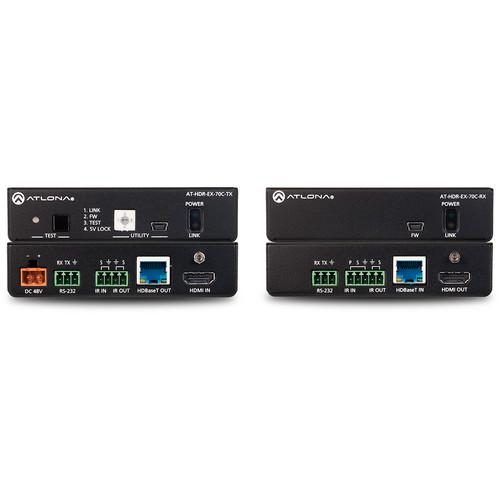

User Manual for Atlona 4K HDR Transmitter and Receiver Set with IR, RS-232, and PoE Click to enlarge the picture
Contents of the user manual for the Atlona 4K HDR Transmitter and Receiver
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona 4K HDR Transmitter and Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Provided by third party: The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/Ultra HD video, 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides transmission of HDMI, as well as bidirectional IR and RS-232 control signals for 1080p and 4K HDR video over CAT 6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-KIT delivers a cost-effective solution for HDMI and control signal extension. The HDR-EX-70C-KIT is ideal for residential and commercial applications with the emerging 4K/Ultra HD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content.
- Key Features
-
- 4K/Ultra HD capability, 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
- HDBaseT extender kit for HDMI, power, and control
- Receiver powered by transmitter via PoE (Power over Ethernet)
- Extends RS-232, IR, and CEC control signals over HDBaseT
- HDBaseT link status testing
- Supports HDR and 4K/60 4:4:4 video content
- The HDR-EX-70C-KIT is cost-effective and ideal for applications requiring the emerging 4K/Ultra HD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-70C-KIT supports 4K HDR10, 60 Hz and Dolby Vision, 30 Hz.
- An innovative yet practical solution for 4K HDR over HDBaseT
- HDR and 4K/60 4:4:4 video content requires data rates exceeding 10 Gbps and up to 18 Gbps - a significant challenge for extending signals over HDBaseT. The HDR-EX-70C-KIT provides the answer with visually lossless video compression technology that applies extremely light compression with no latency. This enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring very high, pristine image quality.
UPC: 846352005764 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K HDR Transmitter and Receiver Set with IR, RS-232, and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDR-EX-70C-KIT Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | RS-232, HDMI, HDBaseT | | Max Resolution | 4096 x 2160 @ 60 Hz | | Max Transfer Distance | 230 ft | | Features | HDCP compliant, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS support, LPCM 5.1 support, Dolby Atmos support, DTS:X support, Dolby Digital support, HDR support | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female
1 x IrDA (output) - terminal block
1 x IrDA (input) - terminal block
1 x RS-232 - terminal block
1 x HDMI (output) - 19 pin HDMI Type A female
1 x USB - mini-USB Type B | | | | Compliant Standards | CCC, FCC, RoHS, cULus, RCM | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 13 Watt | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
