User Manual for Atlona 4K UHD 2x1 HDBaseT Wall Plate Switcher with Dual HDMI Inputs Click to enlarge the picture
Contents of the user manual for the Atlona 4K UHD 2x1 HDBaseT Wall
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
 |
User manual for the Atlona 4K UHD 2x1 HDBaseT Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|

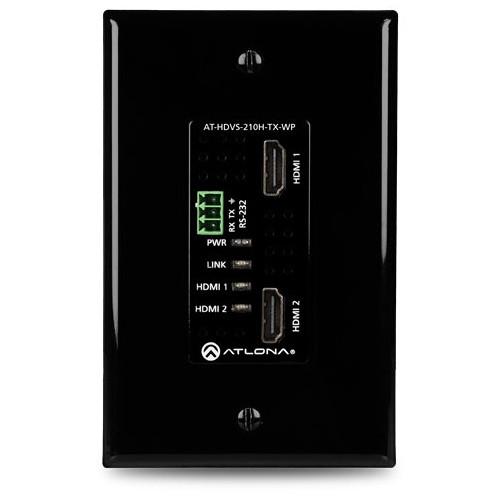

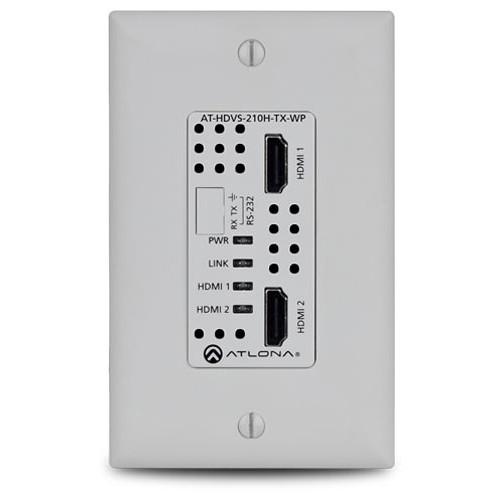

Product description Provided by third party: The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wall plate form factor, and includes interchangeable black and white wall plates and faceplates. Video signals up to 4K/UHD with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted. The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control.

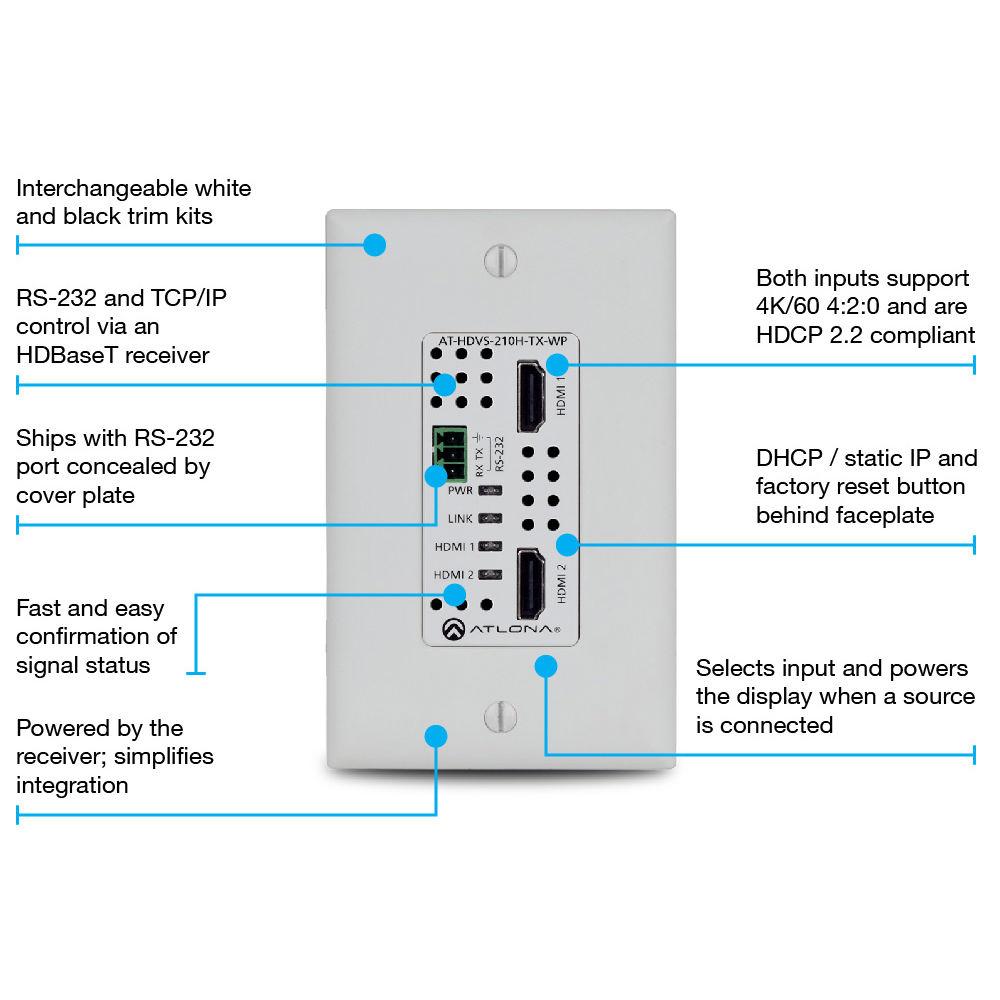

- Key Features
-
- 2x1 HDBaseTTM switcher with HDMI inputs
- HDBaseT transmitter for AV, power, and control
- 4K/UHD capability with 4:2:0 chroma subsampling
- Remotely powered via PoE
- Automatic input selection and automatic display control
- TCP/IP and RS-232 control
- All-in-one switcher, controller, and extender
- The HDVS-210H-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210H-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
- Automatic display control
- The HDVS-210H-TX-WP provides control to a display through RS-232 or CEC, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-210H-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-210H-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-210H-TX-WP display control capability can also be triggered by an external control system.
- Reliable auto-switching
- The HDVS-210H-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt "high" state but may not be delivering active video.
UPC: 846352005245 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD 2x1 HDBaseT Wall Plate Switcher with Dual HDMI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-210H-TX-WP Specs | | | Device Type | Video/audio/serial extender | | Form Factor | In-wall mountable | | Color | Black, white | | | | Connectivity Technology | Wired | | Data Link Protocol | RS-232, HDMI, HDBaseT | | Max Resolution | 4096 x 2160 @ 60 Hz | | Max Transfer Distance | 328 ft | | Features | HDCP compliant, HDBaseT technology | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 2 x HDMI (input) - 19 pin HDMI Type A
1 x HDBaseT
1 x RS-232 - terminal block | | | | Included Accessories | Faceplate | | Compliant Standards | FCC | | | | Min Operating Temperature | 32
