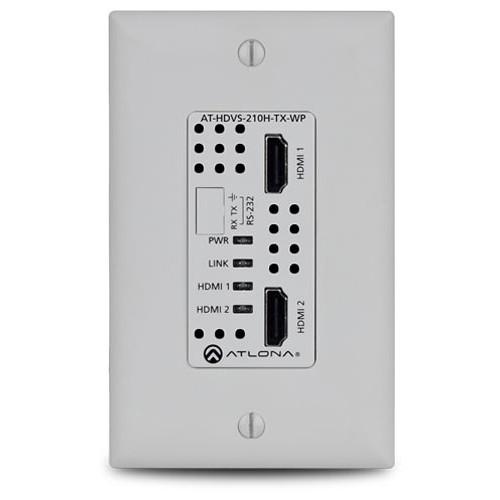

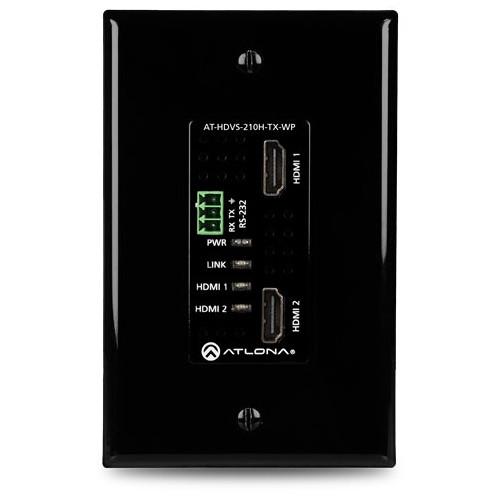

Product description Provided by third party: The Atlona AT-HDVS-210U-TX-WP is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features the one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. The USB-C input is ideal for AV interfacing with PCs, as well as smartphones and tablets. Video signals up to 4K/UHD with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted. The HDVS-210U-TX-WP is HDCP 2.2 compliant. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control.
- Key Features
-
- 2x1 HDBaseT switcher with HDMI and USB-C inputs
- HDBaseT transmitter for AV, power
- 4K/UHD capability with 4:2:0 chroma subsampling
- Remotely powered via PoE
- Automatic input selection and automatic display control
- TCP/IP and RS-232 control
- All-in-one switcher, controller, and extender

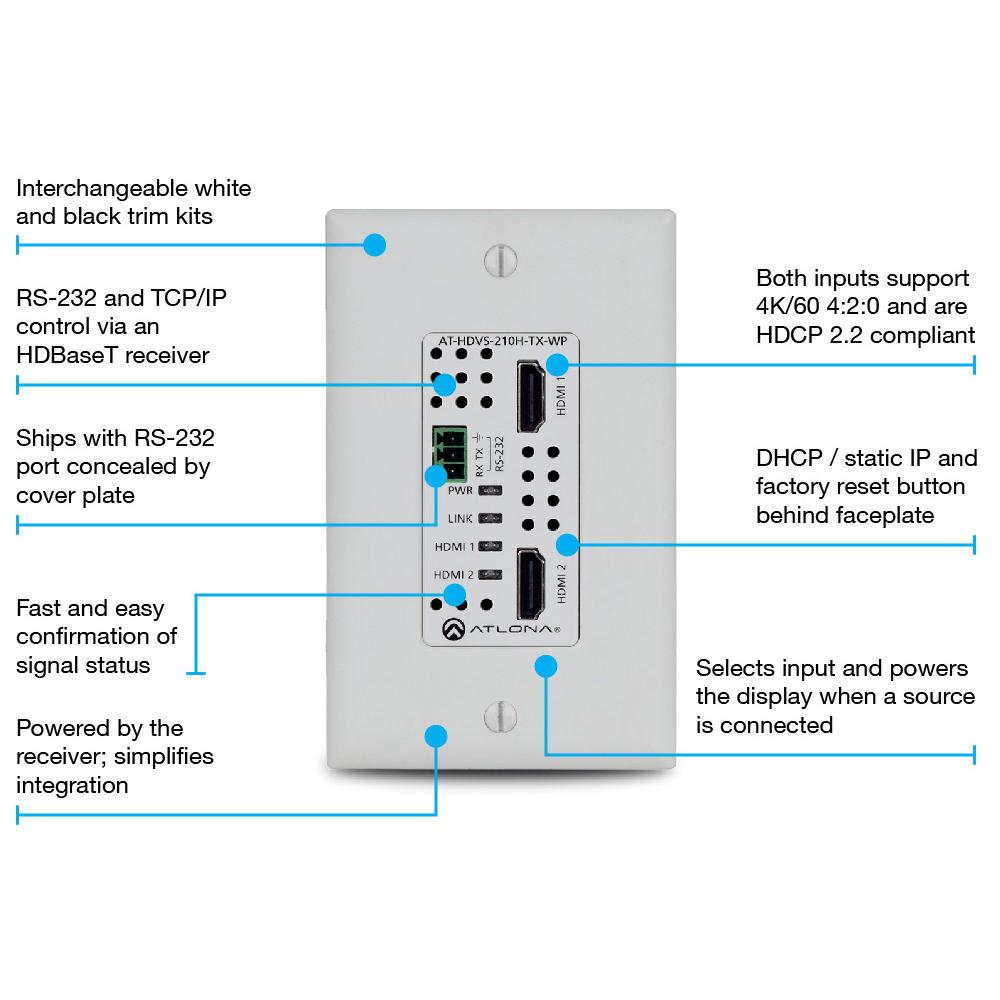

- The HDVS-210U-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210U-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
- Automatic display control
- The HDVS-210U-TX-WP provides control to a display through RS-232 or CEC, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-210U-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-210U-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-210U-TX-WP display control capability can also be triggered by an external control system.
- Reliable auto-switching
- The HDVS-210U-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt "high" state but may not be delivering active video.
UPC: 846352005252 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD 2x1 HDBaseT Wall Plate Switcher with HDMI and USB Type-C Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-210U-TX-WP Specs | | | Device Type | Video/audio/USB/serial extender | | Form Factor | In-wall mountable | | Color | Black, white | | Localization | United States | | | | Connectivity Technology | Wired | | Data Link Protocol | USB, RS-232, HDMI, HDBaseT | | Data Transfer Rate | 10.2 Gbps | | Max Resolution | 4096 x 2160 @ 60 Hz | | Max Transfer Distance | 328 ft | | Status Indicators | Power, status | | Features | Switching, power over Ethernet (PoE), firmware upgradable, HDCP compliant, 4K resolution support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, EDID Management, DTS support, LPCM 5.1 support, Dolby Digital support | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A female
1 x USB - Type C female
1 x RS-232 - terminal block
1 x HDBaseT - RJ-45 female | | | | Included Accessories | 2 faceplates (black, white), 2 wall plates (black, white) | | Compliant Standards | EN55024, FCC, FCC CFR47 Part 15 B, CEC, IEC 61000-4-2:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-3-3:2013, EMC 2014/30/EU, EN 61000-3-2:2014, EN 55024:2010+A1:2015, ANSI C63.4-2014, CISPR 32, EN 55032, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, EN 55032:2015+AC:2016, EN 61000-4-3:2006+A1:2007+A2:2010 | | | | Width | 1.8 in | | Depth | 2.6 in | | Height | 4.1 in | | Weight | 6.35 oz | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
