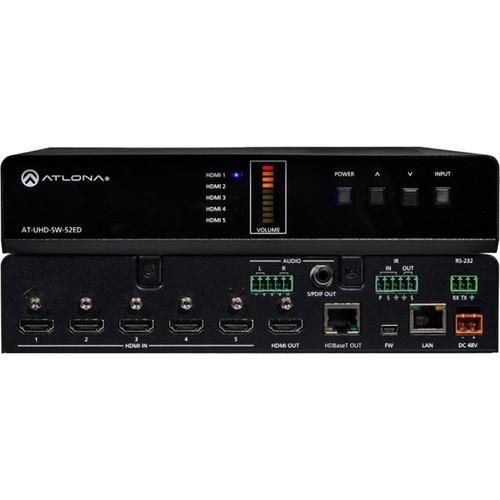

Product description The Atlona AT-UHD-SW-52ED with Mirrored HDMI and HDBaseT Outputs and PoE is a 5 x 1 HDMI switcher with mirrored HDMI and HDBaseT outputs, balanced audio outputs, auto-switching and control capabilities. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be used as a standalone switcher. It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 328' from the switcher to PoE-powered HDBaseT receivers or HDBaseT displays.
The switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD and DTS-HD Master Audio; as well as an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with 19" rack mount brackets (sold separately). Two units can be mounted side-by-side. - 4K/UHD Capability
- Compatible with Ultra High Definition sources and displays
Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting - Auto-Switching
- Reduces complexity or eliminates control system completely
- TCP/IP, RS-232, and IR Control
- Flexible control options compatible with 3rd-party control systems
- EDID Management
- Manages EDID communications between source and destination; allows integrators to force sources to preferred resolution
Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device - HDCP Management
- HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted - GUI-Based Configuration Using Integrated Web Server
- Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID, and HDCP management and audio
Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field - Multi-Channel Audio Compliant
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
Allows any multi-channel audio stream to be used within a professional audio system - 1RU Rackmountable, Half-Rack Width Enclosure
- Installs easily in rack-mounted systems with 19" rack mount brackets (sold separately)
Simplifies installations; allows two units to be mounted together. - Mirrored, Dual Outputs on HDMI and HDBaseT
- Supports dual display environments with local and extended distance 328' displays
- Volume Controls
- Volume Up and Volume Down button adjust output level to sound system
Provides quick level adjustment - Volume Indicator
- Displays volume level of the switcher
Provides quick indication of level during setup - Balanced Line Level Output
- Reduces noise and requirement for external components
Matches requirements of commercial sound systems - AV, Ethernet, Power and Control over HDBaseT
- Delivers 4K/UHD video, audio, 100Base-T Ethernet, power and control through a single cable
- Display Control
- Powers-up display when a source is connected or activated; Powers-down display when a source is disconnected or deactivated; Allows switcher's front panel volume controls to adjust display's audio levels
- IR, RS-232 and Ethernet HDBaseT Insertion
- Adds internally-generated or externally-generated display control signals to the HDBaseT transmission
Simplifies display control from third-party control systems - Power over Ethernet for Remote-Powered HDBaseT Receivers
- Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT
No local AC outlet required UPC: 846352004330 In the Box Atlona 4K/UHD 5-Input HDMI Switcher with Mirrored HDMI and HDBaseT Outputs and PoE Desktop Power Supply IR Handheld Remote Control Rackmount Bracket Kit Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD 5-Input HDMI Switcher with Mirrored HDMI and HDBaseT Outputs and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-SW-52ED Specs | Video Resolutions | 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i | | VESA Configuration | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Colorspace Standards | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Audio | HDMI IN/OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
S/PDIF: PCM 2Ch, Dolby Digital, DTS 5.1
L/R Audio: Maximum analog output: Balanced +5 dBu @ 0 dBfs, 2Ch PCM only
Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Distance | HDMI IN/OUT @ 4K up to 15' (5 m)
HDMI IN/OUT @ 1080p up to 30' (10 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass through
HDCP: Switchable - Compliant/Non-compliant | | Connectors | 1 x Mini USB type B, firmware
5 x HDMI type A, HDMI input
1 x HDMI type A, HDMI output
1 x RJ45, HDBaseT output
1 x S/PDIF, digital audio output
1 x 5-pin captive screw, analog audio output
1 x RJ45, LAN TCP/IP control
1 x 3-pin captive screw, RS-232
1 x 5-pin captive screw, IR input/output
1 x 2-pin captive screw, 5 V power input | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90% non-condensing | | Certifications | Power Supply: CE, FCC, cULus, RCM
Unit: CE, FCC | | Power Consumption | 7.5 W | | Idle Consumption | 1.7 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 5 VDC, 3.6 A | | Dimensions | 1.73 x 8.75 x 10.28" (44 x 222.25 x 261 mm) | | Weight | 1.44 lb (3.15 kg) | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 16.7 x 12.1 x 3.8" |
