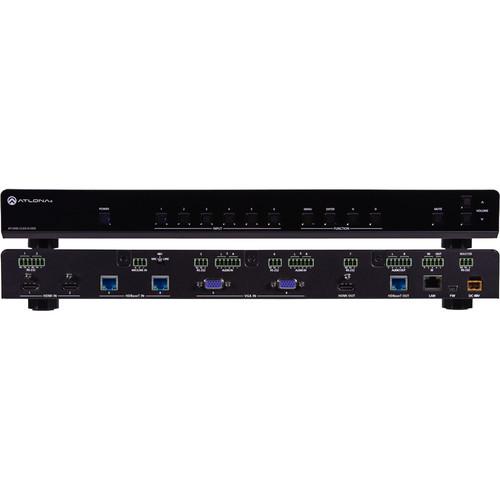

Product description The 4K/UHD 6-Input Multi-Format Switcher from Atlona comes with 4K scaling, and Ethernet-enabled HDBaseT and PoE capabilities. It simplifies classroom and small office system integration by providing two HDBaseT inputs, two HDMI inputs, two multi-function analog inputs, plus mirrored HDBaseT and HDMI outputs. Advanced Automatic System Control (AASC) features on the switcher provide automatic display control and automatic input selection. Ethernet pass-through on the switcher enables control signal pass-through and internet distribution. The switcher contains a full RS-232 signal distribution system to route control signals to local sources and displays. Professional audio features, such as a microphone input with 48V phantom power and ducking, eliminate additional voice-lift audio needs. The switcher is configured and managed by Atlona Management System software to reduce installation time and enable remote support. The switcher addresses a wide array of AV switching and processing needs often encountered in classrooms, conference rooms, boardrooms, training rooms, and other presentation settings.It is designed to be the central component of an automated AV system. Automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display is turned off. Volume is controlled by using the front panel buttons and by RS-232 or TCP/IP commands. With automated input selection for active input selection, third-party control systems can be eliminated. The six-input switcher combines the benefits of a scaling switcher with Advanced Automatic System Control and the advantages of Ethernet-enabled HDBaseT signal transmission to extend AV and control signals over a single cable. In addition to automated input selection, the switcher can be controlled via the Atlona AT-ANC-108D 8-Button Network Control Panel. - Two Ethernet-Enabled HDBaseT Inputs
-
- Supports two HDVS-150 or HDVS-200 series transmitters for placement at remote sources near lecterns, conference tables, and instructor desks
- Simplifies integration of remote sources by eliminating power supplies when used with PoE-powered transmitters; single category cable carries AV signals, control, and power
- Two HDMI Inputs
-
- Digital inputs to support two DVI, HDMI, or DisplayPort sources
- Works with PCs, Blu-ray players, document cameras, teleconference systems, and wireless solutions with industry standard digital AV outputs
- Two Multi-Function Analog Inputs on 15-Pin HD Connectors
-
- Accepts RGBHV, component, S-video, or composite signals using common adapters and breakout cables
- Provides input options for legacy analog sources
- Automatic Display Control
-
- Automatically changes projector power state based on active or standby mode of switcher; control signals are transmitted via CEC, IP, or RS-232
- Enables display and volume control directly; CEC enables control of low-cost consumer displays
- Any product that has mirrored output with HDMI and HDBaseT will have CEC functionality through the HDBaseT output
- Automatic Input Selection Using Video Detection Technology
-
- Selects active input when sources are connected or if there is a change in source power status
- Eliminates need for complex control system in AV systems
- RS-232 Control Signal Distribution
-
- Dedicated RS-232 connections for all local sources and destinations, plus transmission over HDBaseT, allow the switcher to be used as an RS-232 distribution system to all local and remote sources and displays
- Lowers the cost of control system integration by reducing the number of RS-232 interfaces on the processor
- 4K/UHD @ 30 Hz Capability
-
- Compatible with Ultra High Definition sources and displays
- Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
- Built-In 4K Scaler
-
- Scales to and from most resolutions up to 4K to optimize content from any source to any monitor/projector up to 4K; downscaling allows 4K sources to be displayed at 1080p or less
- Eliminates the need for external scaling components. Preferred input resolution can be easily set for best results
- Mirrored, Dual Outputs on HDBaseT and HDMI
-
- Supports dual display applications with both local and extended distance displays up to 328'; designed to work directly with HDBaseT-capable displays and Atlona AT-UHD-EX-100CE-RX receivers
- Eliminates cost associated with extra distribution and extension components; simplifies installation. HDMI output allows for additional HDBaseT transmitter for dual long distance applications
- AV & Control over HDBaseT
-
- Delivers 4K/UHD video, audio, Ethernet, and control through a single cable
- Eliminates multiple cable runs between source, control system, and display
- PoE for Remote-Powered HDBaseT Receivers & Transmitters
-
- Provides remote power to Atlona EX-100CE-TX-PD and HDVS-150/200 series of transmitters, and UHD-EX-100CE-RX receivers over the same category cable used for AV and control signals
- Eliminates local AC outlet required for extender device, cleans up the installation behind displays, and saves time and integration costs
- TCP/IP, RS-232, & IR Control of Switcher
-
- Compatibility with third-party control systems provides flexible control options, RS-232 controlled from HDBaseT connection
- Reduces integration time and costs
- EDID Management
-
- Manages EDID communications between source and switcher; allows integrators to force sources to preferred resolution
- Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
- HDCP Management
-
- Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems, while protected content is not transmitted
- HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
- Balanced Line/Mic Input with 48V Phantom Power
-
- Provides professional audio input for wired and wireless microphones
- Saves installation costs by eliminating external audio mixer
- Microphone Ducking with Advanced Controls
-
- Automatically reduces program audio levels when mic is used
- Ensures optimized voice-over performance
- Audio De-Embedding
-
- De-embeds PCM audio from HDMI inputs to analog audio output
- Provides audio signal routing to sound system
- Independent Audio Input Switching
-
- Switches analog audio inputs separately from video sources; allows analog audio signal embedding for DVI sources
- Simplifies audio signal management from DVI sources
- Balanced, Stereo Audio Output on 6-Pin Captive Screw Connector
-
- +4 DB nominal audio interfaces with analog commercial sound systems
- Maintains proper audio gain structure; eliminates adapters
- Adjustable Volume and EQ
-
- Features independent gain control for each input, master audio level control, and bass/treble EQ adjustment
- Optimizes audio signals, eliminating the need for an external mixer
- Front Panel Volume & Mute Controls
-
- Volume up and volume down buttons adjust output level to sound system
- Provides quick level adjustment for operators
- Easy GUI-Based Configuration Using Integrated Web Server
-
- Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID, and HDCP management and audio
- Allows fast configuration of internal product settings and troubleshooting from a tablet, smartphone, or PC in the field
- IP to RS-232 Translation
-
- Converts TCP/IP commands to RS-232 commands for output to external devices
- Enables single IP connection to control processor, for control of both IP and RS-232 connected devices, allowing for faster installation
- Nine RS-232 I/O Ports
-
- Six RS-232 ports and three HDBaseT RS-232 ports to control other devices in the system
- Reduces cost associated with complex control processors
- RS-232 & IR HDBaseT Insertion
-
- Adds control signals to the HDBaseT transmission, including RS-232 and bidirectional IR
- Simplifies display control from third-party control systems
- Rack-Mountable 1 RU, Full Rack Width Enclosure
-
- Installs easily in rack-mounted systems with included 19" rack and wall mount brackets
- Reduces installation time and cost
- Works with AMS
-
- This IP-controllable product can be remotely managed by the Atlona Management System software
- Integrates product configuration, management, and updates to reduce installation time and enable remote support
UPC: 846352004859 In the Box Atlona 4K/UHD 6-Input Multi-Format Switcher with Mirrored HDMI & HDBaseT Outputs IR Handheld Remote Control Rackmount Bracket Kit Desktop Power Supply Detachable Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD 6-Input Multi-Format Switcher with Mirrored HDMI & HDBaseT Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-CLSO-612ED Specs | Video Resolution | 4096 x 2160 @ 24/25/30 Hz
3840 x 2160 @ 24/25/30 (UHD)
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60 Hz
720p @ 50/59.94/60 Hz
576p, 576i
480p, 480i | | VESA | 2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800
1280 x 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2 | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | PCM 2-Ch (De-embedded) | | HDMI | PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m) | | Signal | Bandwidth: 10.2 Gbps
CEC Compliant
HDCP Switchable - Compliant/Non-Compliant - 1.4 | | Certification | Unit: CE, FCC Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Power | Consumption: 43 W
Idle Consumption: 4 W
Supply:
Input: 100 to 240 VAC ~ 50/60 Hz
Output: 48 VDC / 3.125 A | | Dimensions (H x W x D) | 1.7 x 17.2 x 10.0" (44 x 438 x 254 mm) | | Weight | 7.1 lb (3.2 kg) | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 22.6 x 15.3 x 4.1" |
