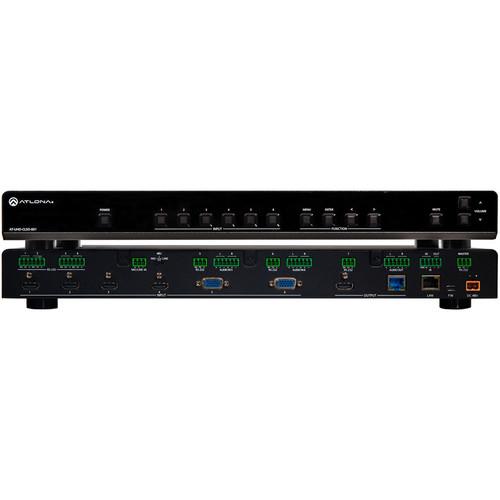

Product description The Atlona AT-UHD-CLSO-601 is a six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It is designed to simplify classroom and small office system integration by providing four HDMI and two multi-function analog inputs, to enable the use of both new and legacy sources with HDMI displays. Professional audio features such as a microphone input with 48V phantom power and ducking are also included, allowing the switcher to address a wide array of AV switching and processing needs often encountered in classrooms, conference rooms, boardrooms, training rooms and other presentation settings. - Four HDMI Inputs
- Digital inputs to support up to four DVI, HDMI and DisplayPort sources
Works with PCs, Blu-ray players, document cameras, teleconference systems, and other wireless solutions with industry standard digital audio/video outputs - Two Multi-Function Analog Inputs
- Accepts RGBHV, component, S-video, or composite signals using common adaptors and break-out cables
Provides input options for legacy analog sources - Mirrored Dual HDBaseT & HDMI Outputs
- Supports dual display applications with both local and extended distance displays up to 328'
HDMI output allows additional HDBaseT transmitter for dual long distance applications - 4K/UHD @ 30 Hz Capability
- Compatible with Ultra High Definition sources and displays
Supports high resolution applications such as CAD, desktop publishing, and detailed financial reporting - Built-In 4K Scaler
- Scales to and from most resolutions up to 4K to optimize content from any source to any monitor or projector up to 4K
Eliminates the need for external scaling components - AV, Ethernet, and Control over HDBaseT
- Delivers 4K/UHD video, audio, 100BaseT Ethernet, and control through a single cable
Eliminates multiple cable runs between source, control system router and display - Power over Ethernet for Remote-Powered HDBaseT Receiver
- Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT
No local AC outlet required, which saves time and integration costs 1 Please Note: Receiver sold separately close - Auto-Switching
- Selects last connected HDMI or VGA source
- TCP/IP, RS-232, and IR Control
- Compatibility with third-party control systems provides flexible control options
- EDID Management
- Manages EDID communications between source and switcher; allows you to force sources to preferred resolution
Ensures desired audio formats and video resolutions are provided to the AV system - HDCP Management
- Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs - Balanced Line/Mic Input with 48V Phantom Power
- Provides professional audio input for wired and wireless microphones
- Microphone Ducking with Advanced Controls
- Automatically reduces program audio levels when microphone is used
Ensures optimized voice-over performance - Audio De-Embedding
- De-embeds PCM audio from HDMI inputs to analog audio output
Provides audio signal routing to sound system - Independent Audio Input Switching
- Switches analog audio inputs separately from video sources; allows analog audio signal embedding for DVI sources
Simplifies audio signal management from DVI sources - Balanced Stereo Audio Output
- Interfaces with analog commercial sound systems
Maintains proper audio gain structure; eliminates adaptors - Adjustable Volume and EQ
- Volume Up and Volume Down buttons adjust output level to sound system
Provides quick level adjustment for operators - GUI-Based Configuration Using Integrated Web Server
- Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID and HDCP management and audio
Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone or PC in the field - IP to RS-232 Translation
- Converts TCP/IP commands to RS-232 commands for output to external devices
Enables single IP connection to control processor to control both IP and RS-232 connected devices. Faster installation - Eight RS-232 Ports
- Multiple bidirectional, RS-232 ports to control other devices in the system
- Ethernet, RS-232 and IR HDBaseT Insertion
- Adds control signals to the HDBaseT transmission including Ethernet, RS-232 and bi-directional IR
Simplifies display control from third-party control systems - 1RU Rackmountable
- Installs easily in rack mounted systems with included 19" rack and wall mount brackets
UPC: 846352004415 In the Box Atlona 4K/UHD 6-Input Multi-Format Switcher with Mirrored HDMI/HDBaseT/PoE/Auto-Switching Desktop Power Supply IR Handheld Remote Control Rackmount Bracket Kit Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD 6-Input Multi-Format Switcher with Mirrored HDMI HDBaseT PoE Auto-Switching in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-CLSO-601 Specs | Video Resolutions | 4096 x 2160 @ 24/25/30 Hz, 3840 x 2160 @ 24/25/30 Hz (UHD), 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i | | VESA Configuration | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480 | | Composite/S-Video | NTSC, NTSC4, PAL, PAL-M, PAL-N, SECAM | | Audio | Analog Output: PCM 2Ch (de-embedded)
HDMI/HDBaseT Output: PCM 2Ch, supports up to DTS-HD Master Audio and Dolby TrueHD on pass through | | Distance | Up to 230' (70 m) via CAT5e/6 @ 4K
Up to 328' (100 m) via CAT6a/7 @ 4K
Up to 328' (100 m) via CAT5e/6 @ 1080p
Up to 15' (5 m) via HDMI IN/OUT @ 4K
Up to 30' (10 m) via HDMI IN/OUT @ 1080p | | Signal | Bandwidth: 10.2 Gbps
HDCP: Switchable - Compliant / Non complaint | | Connectors | 1 x Mini USB type B, firmware
1 x RJ45, HDBaseT
4 x HDMI type A, HDMI input
1 x HDMI type A, HDMI output
1 x RJ45, HDBaseT output
2 x 15-pin Sub D, VGA
1 x RJ45, LAN, TCP/IP control
1 x 5-pin captive screw, IR
8 x 3-pin captive screw, RS-232
1 x 5-pin captive screw, audio
1 x 2-pin 48V captive screw, power | | Certifications | Power Supply: CE, FCC, cULus, RoHS, CCC, RCM
Unit: CE, FCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90% non-condensing | | Power Consumption | 33 W | | Idle Consumption | 3.1 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 48 VDC, 3.125 A | | Dimensions | With Feet: 2.17 x 17.08 x 10.04" (55.15 x 433.8 x 255 mm)
Without Feet: 1.73 x 17.08 x 10.04" (44 x 433.8 x 255 mm) | | Weight | 6.9 lb (3.12 kg) | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 22.7 x 15.5 x 4.0" |
