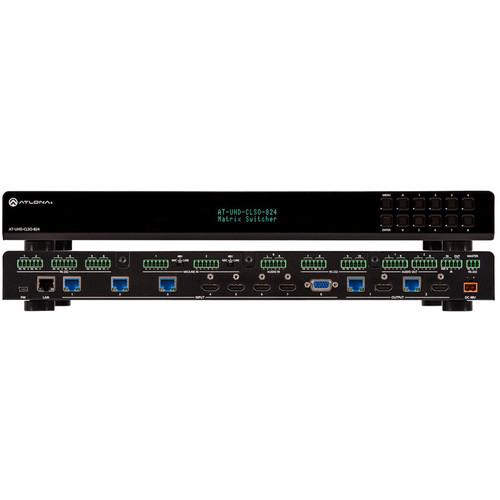

User Manual for Atlona 4K UHD 8x2 Multi-Format Matrix Switcher with Dual HDBaseT Mirrored HDMI Click to enlarge the picture
Contents of the user manual for the Atlona 4K UHD 8x2 Multi-Format Matrix
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona 4K UHD 8x2 Multi-Format Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description This Atlona 8x2 is a multi-format matrix switcher supporting DCI 4K and Ultra HD 4K resolutions at 60 Hz (4096 x 2160 and 3840 x 2160). Designed for use in classrooms and small offices, it features a mix of inputs supporting remote sources at lecterns and conference room tables via HDBaseT transmission, as well as local sources in the equipment rack. The matrix serves a wide array of room configurations with two HDBaseT video outputs, each featuring a mirrored HDMI port to provide an additional output for a local display or an Atlona Extender Kit. - 8x2 with HDBaseT/HDMI per Output
-
- Eight different sources may be switched to either of two outputs with mirrored HDBaseT/HDMI signals
- Serves a wide array of room configurations
- 3 HDBaseT Inputs
-
- Works with optional Atlona AT-HDVS-150 or AT-HDVS-200 transmitters for placement at remote sources near lecterns, conference tables, and instructor's desks
- Simplifies integration of remote sources by eliminating power supplies when used with PoE-powered transmitters; single CAT cable carries AV signals, control, and power
- 4 HDMI Inputs
-
- Digital inputs to support up to four HDMI sources or DisplayPort and DVI sources with appropriate adapters
- Ideal for sources located at the equipment rack
- Multi-Function Analog Input on 15-Pin HD Connector
-
- Accepts RGBHV and component signals using common adapters and breakout cables
- Provides input options for legacy analog sources
- 2 Ethernet-Enabled, HDBaseT Outputs
-
- Extends control signals from third party control processors via HDBaseT along with 4K/UHD video, and audio through a single cable with 328 ft performance
- Network connections simplify control system design
- Eliminates multiple cable runs between source, control system router, and display
- Audio Output Matrix Mixer
-
- Mixes de-embedded digital audio along with analog mic/line level inputs and routes to analog outputs or re-embed to video outputs
- Eliminates the need for complex external audio routing systems
- 2 Balanced Stereo Audio Outputs on 6-Pin Captive Screw Connectors
-
- Maintains proper audio gain structure between commercial line level devices; eliminates adapters
- Designed for use with analog commercial sound systems
- Mirrored Outputs on HDBaseT and HDMI
-
- Each matrix output supports dual display applications for a local display and extended distance displays up to 328 ft (100m)
- Eliminates cost associated with extra extension components; simplifies installation
- HDMI output allows additional HDBaseT transmitter for dual, long distance applications
- 4K/UHD @ 60 Hz Capability
-
- Compatible with Ultra HD sources and displays up to 4K at 60 Hz with 4:2:0 color subsampling
- Supports high resolution applications such as CAD, desktop publishing, and detailed financial reporting
- PoE for Remote-Powered HDBaseT Receivers
-
- Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT
- No local AC outlet required -- saves time and integration costs
- TCP/IP, RS-232, and IR Control
-
- Compatibility with third-party control systems provides flexible control options
- Reduces integration time and costs
- EDID Management
-
- Manages EDID communications between source and switcher; allows integrators to force sources to preferred resolution
- Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
- HDCP Management
-
- Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
- HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
- 2 Balanced Line/Mic Inputs with 48V Phantom Power
-
- Provides professional audio input for wired and wireless microphones
- Saves installation costs by eliminating external audio mixer
- Microphone Ducking with Advanced Controls
-
- Automatically reduces program audio levels when mic is used
- Ensures optimized voice-over performance
- Audio De-Embedding
-
- De-embeds PCM audio from HDMI inputs to audio out matrix
- Provides audio signal routing to sound system
- Adjustable Volume and EQ
-
- Independent gain control for each input, master audio level controls 5 band EQ adjustment
- Optimizes audio signals, eliminating the need for an external mixer
- Front Panel Volume and Mute Controls
-
- Volume Up and Volume Down through menu to adjust output level to sound system
- Provides quick level adjustment for operators
- GUI-Based Configuration using Integrated Web Server
-
- Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID and HDCP management and audio
- Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field
- IP to RS-232 Translation
-
- Converts TCP/IP commands to RS-232 commands for output to external devices
- Enables single IP connection to control processor to control both IP and RS-232 connected devices
- Ten RS-232 Ports
-
- Multiple, bi-directional, RS-232 ports to control other devices in the system
- Reduces cost associated with complex control processors
- Ethernet, RS-232, and IR HDBaseT Insertion
-
- Adds control signals to the HDBaseT transmission including Ethernet, RS-232, and bi-directional IR
- Simplifies display control from third-party control systems
- Multi-Channel Audio Compliant
-
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio in pass-through mode
- Allows any 2-channel audio stream to be used within a professional audio system
- Rack Mountable 1U, Full-Rack Width Enclosure
-
- Installs easily in rack mounted systems with included 19" rack and wall mount brackets
- Reduces installation time and cost
UPC: 846352004354 In the Box Atlona 4K/UHD 8x2 Multi-Format Matrix Switcher with Dual HDBaseT/Mirrored HDMI Desktop Power Supply Detachable Power Cable IR Handheld Remote Control Rackmount Bracket Kit User Guide Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD 8x2 Multi-Format Matrix Switcher with Dual HDBaseT Mirrored HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-CLSO-824 Specs | Resolution | 4096 x 216 at 24/25/30/50/60 Hz
3840 x 2160 at 24/25/30/50/60 Hz
2048 x 1080p
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz
1920 x 1080i at 50/59.94/60 Hz
1280 x 720p at 50/59.94/60 Hz
576p
576i
480p
480i
*4096 x 2160 at 50/60 Hz and 3840 x 2160 at 50/60 Hz supported at chroma sub-sampling 4:2:0 8-bit only
VESA:
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Audio I/O | Analog Output: PCM 2-Ch (de-embedded)
HDMI Input / Output: PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio | | Audio Sampling Rate | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | | Bit Rate | Up to 24-bit | | Transmission Distance | CAT5e/6 at 4K: up to 230 ft (70 m)
CAT5e/6 at 1080p: up to 328 ft (100 m)
CAT6a/7 at 4K: up to 328 ft (100 m)
HDMI In/Out at 4K: up to 15 ft (5 m)
HDMI In/Out at 1080p: up to 30 ft (10 m) | | Bandwidth | 10.2 Gbps | | CEC | Pass-through | | HDCP | Switchable between Compliant/Non-Compliant | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90% non-condensing | | Power Supply | Input: 100-240 VAC 50/60 Hz
Output: 48 VDC, 3.125 A | | Power Consumption | 78.54 W
Idle Consumption: 3.52 W | | Certification | CE, FCC, cULus, CCC, RCM
Power Supply: CE, FCC | | Rack Height | 1 U | | Dimensions | 1.7 x 17 x 10" (4.4 x 43.4 x 25.5 cm)
With Feet: 2.2 x 17 x 10" (5.5 x 43.4 x 25.5 cm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 22.7 x 15.4 x 4.1" |
