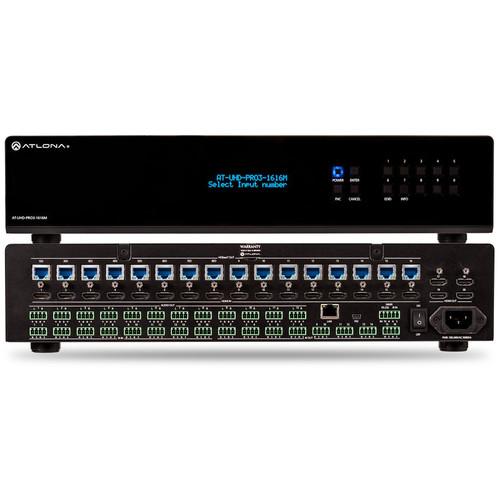

User Manual for Atlona 4K UHD Dual-Distance 16x16 HDMI to HDBaseT Matrix Switcher with PoE Click to enlarge the picture
Contents of the user manual for the Atlona 4K UHD Dual-Distance 16x16 HDMI
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona 4K UHD Dual-Distance 16x16 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The Atlona 4K/UHD Dual-Distance 16x16 HDMI to HDBaseT Matrix Switcher with PoE supports 4K/UHD 60 Hz video signals with Power over Ethernet (PoE) for receivers and analog audio breakout. The matrix provides both extended distance (328') and long distance (230') HDBaseT transmission over category cable. It also provides convenient bidirectional extension of both RS-232 and IR control. An HDMI output is provided as a mirrored out designed for routing HDMI-based audio to an AVR, or as an additional matrix output. The matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control system-friendly and integrates with any TCP/IP, RS-232, or IR-based control signals. Designed for multi-zone residential or commercial distribution applications, this switcher features a 1 RU, rack-mountable enclosure with an internal, international power supply. - Sixteen HDBaseT Outputs
-
- Eight extended distance (328') and eight long distance (230') outputs offer bidirectional extension of RS-232 and IR control plus remote power
- Compatible receivers are the AT-UHD-EX-100CE-RX (328’) and AT-UHD-EX-70C-RX (230’)
- Ensures distance and value requirements are addressed to meet the needs of the installation and budget
- Four HDMI out with Independently Selectable Mirror and Matrix Modes
-
- Switchable HDMI output can mirror any HDBaseT output for routing HDMI-based audio signals to an AVR
- In matrix mode, the HDMI output can become an additional matrix output
- Provides output flexibility to facilitate a variety of output needs and destinations
- 4K/UHD Capability with HDCP 2.2 Copy Protection
-
- Compatible with UHD PCs and other sources and displays, and adheres to latest content protection specification
- Future-proofs AV systems in preparation for technology improvements, 4K/UHD streaming services, and playback devices
- PoE for Remote-Powered Receivers
-
- Industry standard IEEE 802.3af PoE supplied by the matrix over HDBaseT
- No local AC outlet required; saves time and integration costs
- Audio de-embedding
- Stereo, line level audio breakout with volume, mute, and five-band EQ on captive screw connectors for three output zones
- TCP/IP, RS-232, and IR Control
-
- Flexible control options compatible with all third-party control systems
- Reduces integration time and costs
UPC: 846352004590 In the Box Atlona 4K/UHD Dual-Distance 16x16 HDMI to HDBaseT Matrix Switcher with PoE IR Remote Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD Dual-Distance 16x16 HDMI to HDBaseT Matrix Switcher with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-PRO3-1616M Specs | | | Video | 4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
2048 x 1080p
1920 x 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60 Hz
720p @ 50/59.94/60 Hz
576p
576i
480p
480i 4096 x 2160 @ 50/60 Hz and 3840 x 2160 @ 50/60 Hz supported at chroma subsampling 4:2:0 8-bit only. | | VESA | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | | | Output | Analog Output: PCM 2-Channel (de-embedded)
HDMI/HDBaseT Output: PCM 2-Channel, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos | | Sample Rate | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Ports 1-8:
Cat5e/6 at 4K: Up to 230' (70 m)
Cat6a/7 at 4K: Up to 328' (100 m)
Cat5e/6 at 1080p: Up to 328' (100 m)
Ports 9-16:
Cat5e/6 at 4K: Up to 115' (35 m)
Cat6a/7 at 4K: Up to 130' (40 m)
Cat5e/6 at 1080p: Up to 197' (60 m)
Cat6a/7 at 1080p: Up to 230' (70 m)
HDMI In/Out at 4K: Up to 15' (5 m)
HDMI In/Out at 1080p: Up to 30' (10 m) | | | | Bandwidth | 10.2 Gb/s | | HDCP Compliance | Supports up to 2.2 | | | | Operating | 32 to 104°F (0 to 40°C) | | Storage | -40 to 158°F (-40 to 70°C) | | Humidity | 20 to 90%, Non-condensing | | | | Consumption | 115 W | | Idle Consumption | 60 W | | Supply | 100 to 240 VAC @ 50/60 Hz | | | | Certifications | CE, FCC, RoHS, RCM, TUV | | Rack Units | 1 RU | | Dimensions (H x W x D) | With Feet: 3.9 x 17.3 x 11.9" (9.9 x 43.9 x 30.2 cm)
With Rack Ears: 3.5 x 19.0 x 11.9" (8.9 x 48.3 x 30.2 cm) | | Weight | 13.7 lb (6.2 kg) |
