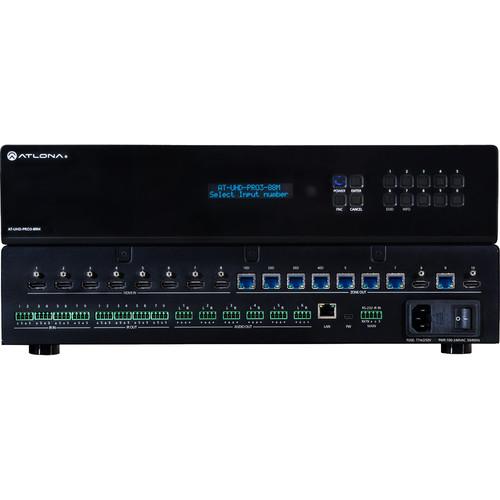

User Manual for Atlona 4K UHD Dual-Distance 8x8 HDMI to HDBaseT Matrix Switcher with PoE Click to enlarge the picture
Contents of the user manual for the Atlona 4K UHD Dual-Distance 8x8 HDMI
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona 4K UHD Dual-Distance 8x8 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description This Atlona 8x8 is a 2RU dual-distance HDBaseT matrix switcher supporting DCI 4K and Ultra HD 4K resolutions at 60 Hz (4096 x 2160 and 3840 x 2160). It's designed for multi-zone residential or commercial distribution applications and features 8 HDMI inputs and 8 HDBaseT outputs, as well two HDMI mirrored outputs. Route up to 328 over 4 HDBaseT outputs, and up to 230 ft over the other four, along with bidirectional RS-232 and IR control in both cases. The two HDMI mirrored outputs are designed for carrying HDMI-based audio to an AVR or as additional matrix outputs. Power over Ethernet capability is available for optional receivers.
This matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control-system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Incorporate the optional AT-IR-CS-TX IR emitter cable for AV system control. - 8 HDBaseT Outputs
-
- 4 328 ft outputs and 4 230 ft outputs
- Compatible Receivers
-
- AT-UHD-EX-100CE-RX (328 ft)
- AT-UHD-EX-70C-RX (230 ft)
- 2 HDMI Outputs
-
- Independently selectable mirror and matrix modes
- Switchable HDMI outputs can mirror any HDBaseT output for routing HDMI based audio signals to AVRs; in matrix mode, HDMI outputs can become additional matrix outputs
- Provides output flexibility to facilitate a variety of output needs and destinations
- PoE for Remote Powered Receivers
-
- Industry standard IEEE 802.3af PoE supplied by the matrix over HDBaseT
- No local AC outlet required; saves time and integration costs
- Audio De-Embedding with Volume, Mute, and 5-Band EQ
-
- Stereo, line level audio breakout with volume, mute, and 5-band EQ on captive screw connectors for the long-distance output zones
- HDMI audio de-embedding with analog stereo and HDMI outputs, with or without a video display connection
- Provides audio signal routing to sound system
- TCP/IP, RS-232, and IR control
-
- Flexible control options compatible with 3rd-party control systems
- Reduces integration time and costs
- Easy, GUI-Based Configuration using Integrated Web Server
-
- Offers status reporting of EDID, HDCP, and I/O routing; offers control of volume, mute, and 5-band EQ for analog outputs plus I/O labeling
- Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field
- EDID Management
-
- Manages EDID communications between source and switcher; allows integrators to force a source to transmit preferred video resolution and audio format
- Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
- Multi-Channel Audio Compliant
-
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
- Allows any multi-channel audio stream to be used within a professional audio system
- Support for 192 kHz/24-Bit Digital Audio
-
- Enables high-resolution digital audio content to pass-through the matrix switcher
- Provides compatibility with all high resolution, HDMI-based audio signals
- Independent Audio Control for De-Embedded Outputs
-
- Independent volume control, mute, and 5-band EQ for each de-embedded audio output
- Provides easier integration with zone control systems and for multi-channel amps without DSP functionality on board
- Eliminates external processing and higher costs associated with this functionality
- Quiet, Active Cooling
-
- Temperature-based fans maintain low internal temperature while never allowing fan noise to rise above -20 dBSPL at 3.3 ft (1 m)
- Eliminates noise objections when matrix switcher is used within the meeting or entertainment space
- Other Features
-
- 19" rack-mountable 2U, full rack width enclosure
- Internal, international power supply
UPC: 846352004583 In the Box Atlona 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT Matrix Switcher with PoE Set of Rackmount Brackets IR Handheld Remote Control Detachable Power Cable User Guide Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD Dual-Distance 8x8 HDMI to HDBaseT Matrix Switcher with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-PRO3-88M Specs | Inputs | 8 x HDMI | | Outputs | 8 x HDBaseT RJ45
2 x mirrored HDMI | | Connectors | Firmware: LAN port
HDBaseT: RJ45
HDMI: HDMI type A
Audio: 4-pin captive screw
LAN: RJ45, TCP/IP control
IR: 2-pin captive screw
RS-232: 3-pin captive screw
Power: Internal, 100-240 VAC, 50/60 Hz | | Resolutions | 4096 x 2160 at 24/25/30/50/60 Hz
3840 x 2160 at 24/25/30/50/60 Hz
2048 x 1080p
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz
1920 x 1080i at 50/59.94/60 Hz
1280 x 720p at 50/59.94/60 Hz
576p
576i
480p
480i
*4096 x 2160 at 50/60 Hz and 3840 x 2160 at 50/60 Hz supported at chroma subsampling 4:2:0 8-bit only
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Audio Output | Analog Output: PCM 2-Ch (de-embedded)
HDMI/HDBaseT Output: PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos | | Sample Rate | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | | Bit Rate | Up to 24-bit | | Distance | HDBaseT Ports 1-4:
CAT5e/6 at 4K: up to 230 ft (70 m)
HDBaseT Ports 1-4:
CAT6a/7 at 4K: up to 328 ft (100 m)
HDBaseT Ports 1-4:
CAT5e/6 at 1080p: up to 328 ft (100 m)
Remaining HDBaseT Ports:
CAT5e/6 at 4K: up to 115 ft (35 m)
CAT6a/7 at 4K: up to 130 ft (40 m)
CAT5e/6 at 1080p: up to 197 ft (60 m)
CAT6a/7 at 1080p: up to 230 ft (70 m)
HDMI In/Out at 4K: up to 15 ft (5 m)
HDMI In/Out at 1080p: up to 30 ft (10 m) | | Bandwidth | 10.2 Gbps | | CEC | Pass-through | | HDCP Compliance | Supports up to 2.2 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 20 to 90%, non-condensing | | Power Consumption | 225 W
Idle Consumption: 100 W | | Power Supply | 100 - 240 VAC, 50/60 Hz | | Certifications | CE, FCC, RoHS, RCM, TUV | | Dimensions | With Feet: 3.9 x 17.3 x 11.9" (10 x 44 x 30 cm)
With Rack Ears: 3.5 x 19 x 11.9" (9 x 48 x 30 cm) | | Weight | 11.4 lb (5.2 kg) | | | | Package Weight | 18.9 lb | | Box Dimensions (LxWxH) | 24.5 x 19.1 x 9.3" |
