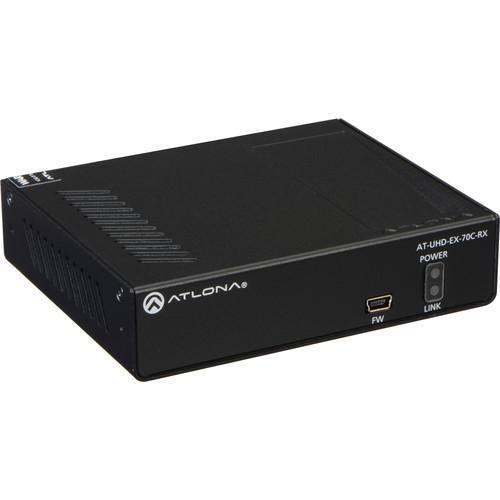

Product description Use the Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) to convert an incoming HDBaseT signal to HDMI and connect it to a display or projector. This receiver offers connections for HDMI video and audio, bidirectional IR control, and RS-232 control all over a single HDBaseT connection. HDBaseT is advantageous as it allows for longer cable distances than HDMI alone, while carrying other important signals along a single cable. 4K HDMI resolutions are supported, as is HDCP 2.2 in order to play protected high-resolution content. As this receiver accepts downstream power using the HDBaseT connection, no separate power supply is required. - 4K/UHD Capability
- Compatible with Ultra High Definition sources and displays
Prepares AV systems for technological improvements, 4K/UHD streaming services, and playback devices - HDCP 2.2 Compliant
- Adheres to latest specification for High-bandwidth Content Protection
Allows protected content stream to pass between devices - Remote-Powered Receiver
- Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
- Bidirectional Extension of RS-232 and IR Control Commands
- Control signals travel over HDBaseT link for maximum control system flexibility
- Extended Distance HDMI Extension
- Receives HDMI signals up to 230' @ 1080p and 130' @ 4K/UHD using Cat 6a/7 cable
- Flexible Bidirectional IR Control Capabilities
- IR input designed to work with 12V IR receivers for source control
- Rear Panel I/O Connectors
- Placement of ports on rear panel simplifies wire management
- Multi-Channel Audio Compliant
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
Allows any multi-channel audio stream to be used within a professional audio system - Field Updatable Firmware
- Front panel USB port provides an easy means for kit upgrades
Ensures long term system return on investment - Front Panel Power and Link Status LEDs
- LED indicators provide power and HDBaseT link status information
Provides easy setup and troubleshooting - Low-profile, 1" high quarter-rack width enclosure
- Easy installation in confined spaces behind displays and above projectors
UPC: 846352004507 In the Box Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) Mounting Ears IR Emitter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD HDMI Over HDBaseT Receiver with Control and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-EX-70C-RX Specs | Video Resolutions | 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i | | VESA Configuration | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Colorspace Standards | YCbCr, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Audio | Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate: Up to 24-bit | | Distance | Cat 5e/6 @ 4K up to 115' / 35 m
Cat 6a/7 @ 4K up to 130' / 40 m
Cat 5e/6 @ 1080p up to 197' / 60 m
Cat 6a/7 @ 1080p up to 230' / 70 m
HDMI IN/OUT @ 4K up to 15' / 5 m
HDMI IN/OUT @ 1080p up to 30' / 10 m | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass through
HDCP: Supports up to 2.2 | | Connectors | 1 x Mini-USB type B, firmware
1 x RJ45, HDBaseT
1 x HDMI type A, HDMI output
1 x 5-pin captive screw, IR
1 x 3-pin captive screw, RS-232
1 x PoE from TX | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Humidity: 20 to 90%, non-condensing | | Power Consumption | 10.89 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 48 VDC, 0.83 A | | Certifications | Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
Receiver: CE, FCC | | Dimensions | With Ears: 1.1 x 4.7 x 3.5" / 27 x 119 x 89 mm
Without Ears: 1 x 4.3 x 3.5" / 25 x 109 x 89 mm | | Weight | 0.7 lb / 330 g | | | | Package Weight | 1.135 lb | | Box Dimensions (LxWxH) | 8.65 x 7.45 x 2.9" |
