Product description

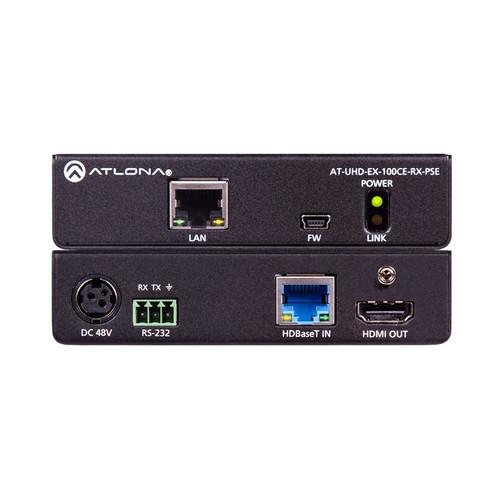

The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.
    4K/UHD Capability
  • • Compatible with Ultra High Definition sources and displays
    • Full support of 4K/UHD streaming services and playback devices
    HDCP 2.2 Compliant
  • • Adheres to latest specification for High-bandwidth Digital Content Protection
    • Allows protected content stream to pass between devices
    PSE - Power Sourcing Equipment
  • • Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
    • Eliminates the need for the receiver to be powered remotely or by a power-injection device
    AV, Ethernet, Power, and Control over HDBaseT
  • • Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
    • Eliminates multiple cable runs between source, control system, router, and display 1
    Please Note:
    Note: Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX-PSE receiver when used with the UHD-PRO3 Series matrix switchers. close
    Extended Distance HDMI Extension
  • • Receives HDMI signals up to 328' @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
    Extends RS-232, CEC, and Ethernet Control Signals
  • • Control signals travel over HDBaseT link to device for maximum control system flexibility
    • Simplifies integration of source, control system, and display 2
    Please Note:
    Note: The AT-UHD-EX-100CE-RX-PSE does not include I/O ports for IR control signals extended over HDBaseT. If IR over HDBaseT is required, please refer to the AT-UHD-EX-100CE-RX. close
    Rear Panel I/O Connectors
  • • Placement of ports on rear panel simplifies wire management
    • Saves installation time and eliminates clutter
    Multi-Channel Audio Compliant
  • • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
    • Allows any multi-channel audio stream to be used within a professional audio system
    Field Updatable Firmware
  • • Front panel USB port provides an easy means for kit upgrades
    • Ensures long term system return on investment
    Front Panel Power and Link Status LEDs
  • • LED indicators provide power and HDBaseT link status information
    • Provides easy setup and troubleshooting
    Low-Profile 1" High Quarter-Rack Enclosure Width
  • • Easy installation into confined spaces behind displays and above projectors
    • Keeps devices out of sight when placed in public spaces
UPC: 846352004910 In the Box Atlona 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328')
  • Desktop Power Supply
  • Mounting Brackets
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Atlona 4K UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Atlona AT-UHD-EX-100CE-RX-PSE Specs

    Video Resolution 4096 x 2160 @ 24/25/30/50/60 Hz
    3840 x 2160 @ 24/25/30/50/60 Hz
    2048 x 1080p
    1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
    1080i @ 50/59.94/60Hz
    720p @ 50/59.94/60 Hz
    576p, 576i, 480p, 480i Note: Support for 4096 x 2160 @ 50/60Hz and 3840 x 2160 @ 50/60Hz at chroma subsampling 4:2:0 8-bit only
    VESA 2560 x 2048 / 1600
    2048 x 1536
    1920 x 1200
    1680 x 1050
    1600 x 1200 / 900
    1440 x 900
    1400 x 1050
    1366 x 768
    1360 x 768
    1280 x 1024 / 800 / 768
    1152 x 768
    1024 x 768
    800 x 600
    640 x 480
    Color Space YCbCr, RGB
    Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    Color Depth 8-bit, 10-bit, 12-bit
    Analog Audio Input Formats:
    PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
    Bit Rate Up to 24-bit
    Distance Cat5e/6 @ 4K: Up to 230' (70 m)
    Cat6a/7 @ 4K: Up to 328' (100 m)
    Cat5e/6 @ 1080p: Up to 328' (100 m)
    HDMI In/Out @ 4K: Up to 15' (5 m)
    HDMI In/Out @ 1080p: Up to 30' (10 m)
    Signal Bandwidth: 10.2 Gbps
    CEC: Pass-through
    HDCP: Supports up to 2.2
    Certification Unit: CE, FCC
    Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
    Temperature Operating: 32 to 122°F (0 to 50°C)
    Storage: -4 to 140°F (-20 to 60°C)
    Humidity: 20 to 90%, Non-condensing
    Power Consumption: 15.2 W (When paired with TX)
    Supply Input: 100~240 VAC, 50/60 Hz
    Supply Output: 48 VDC /0.83 A
    Dimensions (H x W x D) Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm)
    With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm)
    Weight 0.9 lb (0.4 kg)
    Package Weight 2.285 lb
    Box Dimensions (LxWxH) 11.15 x 7.4 x 3.0"
