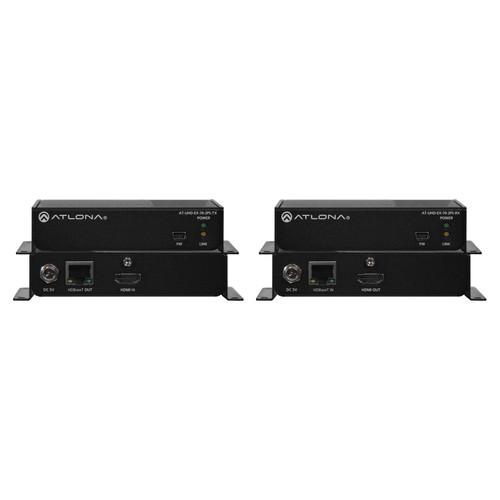

Product description The Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI over HDBaseT TX/RX Kit is comprised of an HDBaseT transmitter unit and a receiver unit. It supports HDMI transmission up to 230' over a Cat 6a/7 cable. The kit supports video signals up to DCI 4K @ 60p with embedded multi-channel audio. HDCP 2.2 compliance and EDID communication support ensure that 4K content is displayed properly. Both the transmitter and receiver fit in a quarter-rack space and feature metal enclosures for durability and easy rack mounting. Rear panel I/O ports provide uncluttered wire management. This kit is ideal for use in residential and commercial point-to-point applications that can leverage HDBaseT for signal transmission over greater distances than conventional HDMI solutions can support. Furthermore, the kit is compatible with the H2H matrix switcher series or HDDA distribution amplifier series for long distance AV signal extension without PoE capability or control signal extension requirements. - 4K/UHD Capability
-
- Compatible with Ultra High Definition sources and displays
- Supports 4K/UHD streaming services and playback devices
- HDCP 2.2 Compliant
-
- Allows protected content stream to pass between devices
- Long Distance HDMI Extension
-
- Transmits HDMI signals up to 230' @ 1080p and 130' @ 4K/UHD using Cat 6a/7 cable
- Field Updatable Firmware
-
- Front panel USB port provides an easy means for kit upgrades
- Rear Panel I/O Connectors
-
- Placement of ports on rear panel simplifies wire management
- Front Panel Power and Status LEDs
-
- LED indicators provide power and status information
- Low-Profile, 1" High Quarter Rack-Width Enclosure
-
- Easy installation into racks and confined spaces behind displays
UPC: 846352004514 In the Box Atlona 4K/UHD HDMI over HDBaseT Transmitter/Receiver Kit Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD HDMI over HDBaseT Transmitter Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-EX-70-2PS Specs | | | Video Resolution | 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i | | VESA | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 | | Color Space | YCbCr, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | | | Audio Format | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | | | Distance | Cat 5e/6: @ 4 K up to 115' (35 m)
Cat 6a/7: @ 4 K up to 130' (40 m)
Cat 5e/6: @ 1080p up to 197' (60 m)
Cat 6a/7: @ 1080p up to 230' (70 m)
HDMI IN/OUT: @ 4 K up to 15' (5 m)
HDMI IN/OUT: @ 1080p up to 30' (10 m) | | Bandwidth | 10.2 Gbps | | Standard | CEC pass through | | HDCP | Supports up to 2.2 | | Connectors | 1 x Mini-B USB, Firmware
1 x RJ45 (8P8C), HDBaseT
1 x HDMI, Type A
1 x 5 VDC locking connector, power | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90% non-condensing | | Power Consumption | 1.55 W | | Idle Consumption | 0.58 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 5 VDC, 1.2 A | | Certification | Transmitter and Receiver Units: CE, FCC
Power Supply: CE, FCC, RoHS, cULus, RCM, CCC | | Dimensions | Without Ears: 1 x 4.3 x 3" (25 x 109 x 76 mm)
With Ears: 1.06 x 5.08 x 3" (27 x 129 x 76 mm) | | Weight | Transmitter Unit: 0.49 lb (0.22 kg)
Receiver Unit: 0.53 lb (0.24 kg) | | | | Package Weight | 2.22 lb | | Box Dimensions (LxWxH) | 11.15 x 7.5 x 3.05" |
