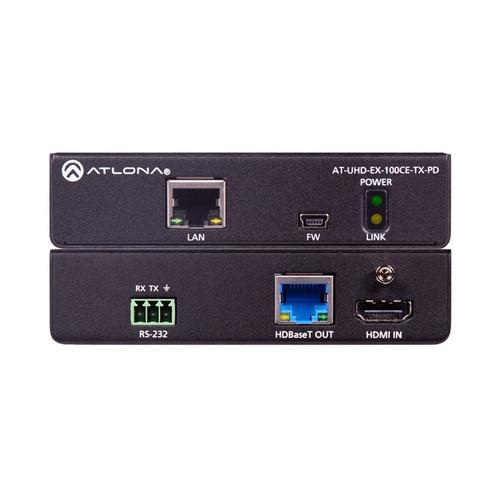

Product description The remote powered 4K/UHD HDMI over HDBaseT Transmitter from Atlona is designed for HDMI transmission up to 328’ over category cable with Ethernet pass-through and RS-232 control. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 color subsampling, plus embedded multi-channel audio. The transmitter is HDCP 2.2 compliant and supports EDID communication. It features a quarter-rack width metal enclosure for easy rack mounting, with rear panel I/O ports for uncluttered wire management. This device is externally powered via Power over Ethernet (PoE), and can be used with Atlona switchers with PoE-equipped HDBaseT inputs, including the AT-UHD-CLSO-612ED, AT-UHD-CLSO-824, and AT-UHD-SW-5000ED.The transmitter simplifies system design when powered by an Atlona switcher with HDBaseT inputs, reducing cost and complexity by eliminating the need for a power supply. It can also be paired with the AT-UHD-EX-100CE-RX-PSE receiver and AT-HDVS-200-RX scaling receiver, both delivering PoE. The transmitter’s installation-friendly features include a rack-mountable form factor that allows four transmitters to share a single 1 RU rack tray, and a front mounted USB port for easy firmware updates. - 4K/UHD Capability
- • Compatible with Ultra High Definition sources and displays
• Full support of 4K/UHD streaming services and playback devices - HDCP 2.2 Compliant
- • Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices - Remote-Powered Transmitter
- • Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT
• Saves time and integration costs - AV, Ethernet, Power, and Control over HDBaseT
- • Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display 1 Please Note: Note: The transmitter does not include I/O ports for IR control signals extended over HDBaseT. If IR control over HDBaseT is required, please refer to the AT-UHD-EX-100CE-TX. close - Extended Distance HDMI Extension
- • Transmits HDMI signals up to 328' @ 1080p and 328' @ 4K/UHD using Cat6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation - Rear Panel I/O Connectors
- • Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter - Multi-Channel Audio Compliant
- • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
• Allows any multi-channel audio stream to be used within a professional audio system - Field Updatable Firmware
- • Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment - Front Panel Power and Link Status LEDs
- • LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting - Low-Profile 1" High Quarter-Rack Enclosure Width
- • Easy installation into racks and confined spaces behind displays
• Keeps devices out of sight when placed in public spaces UPC: 846352004903 In the Box Atlona 4K/UHD HDMI over HDBaseT Transmitter with Ethernet, Control, & PoE (328') Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD HDMI over HDBaseT Transmitter with Ethernet, Control, & PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-EX-100CE-TX-PD Specs | Video Resolution | 4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60Hz
720p @ 50/59.94/60 Hz
576p, 576i, 480p, 480i Note: Support for 4096 x 2160 @ 50/60Hz and 3840 x 2160 @ 50/60Hz at chroma subsampling 4:2:0 8-bit only | | VESA | 2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YCbCr, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | Formats:
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass-through
HDCP: Supports up to 2.2 | | Certification | Unit: CE, FCC
Power Supply: CE, FCC, RoHS, cULus, RCM, CCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Power | Consumption: 15.2 W (When paired with RX)
Supply Input: 100 to 240 VAC, 50/60 Hz
Supply Output: 48 VDC /0.83 A | | Dimensions (H x W x D) | Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm)
With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.6 x 7.4 x 2.9" |
