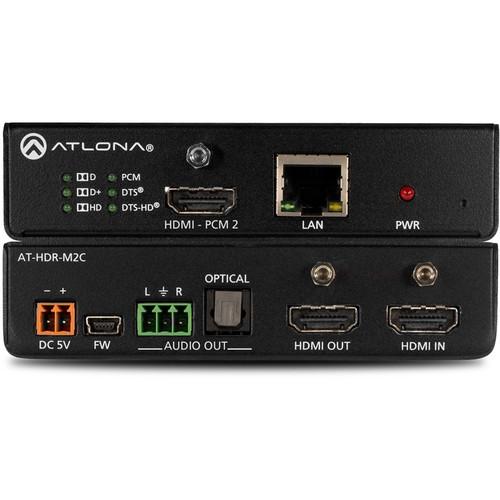

User Manual for Atlona 4K UHD HDR Multi-Channel Digital to Two-Channel Audio Converter Click to enlarge the picture
Contents of the user manual for the Atlona 4K UHD HDR Multi-Channel Digital
- Product category: Embedders & De-Embedders Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Embedders & De-Embedders
|
User manual for the Atlona 4K UHD HDR Multi-Channel Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Provided by third party: The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. It features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as analog unbalanced and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.
The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content.
- Key Features
-
- HDMI audio de-embedding and multi-channel audio downmixing
- Downmixes multi-channel audio to stereo audio
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
- Delivers downmixed audio to HDMI, TOSLINK digital audio, and analog audio outputs
UPC: 846352005122 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona 4K UHD HDR Multi-Channel Digital to Two-Channel Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDR-M2C Specs | | | Device Type | Audio converter | | Form Factor | External | | | | Connectivity Technology | Wired | | Max Range Indoors | 49 ft | | Max Resolution | 4096 x 2160 @ 60 Hz | | Status Indicators | Power, status | | Features | Firmware upgradable, 4K resolution support, 12-bit Deep Color support, Dolby TrueHD support, Dolby Digital Plus support, EDID Management, built-in audio de-embedder, DTS Digital Surround 5.1 support, multi-channel audio downmixing | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A female
1 x management - RJ-45 female
1 x micro-USB (management)
1 x audio (output) - terminal block
1 x TOSLINK (output) - TOSLINK female
1 x HDMI (output) - 19 pin HDMI Type A female
1 x HDMI (input) - 19 pin HDMI Type A female | | | | Included Accessories | Mounting brackets | | Compliant Standards | CCC, FCC, RoHS, cULus, CEC, RCM | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 6.6 Watt | | | | Width | 5 in | | Depth | 4.3 in | | Height | 1 in | | Weight | 12.7 oz | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
