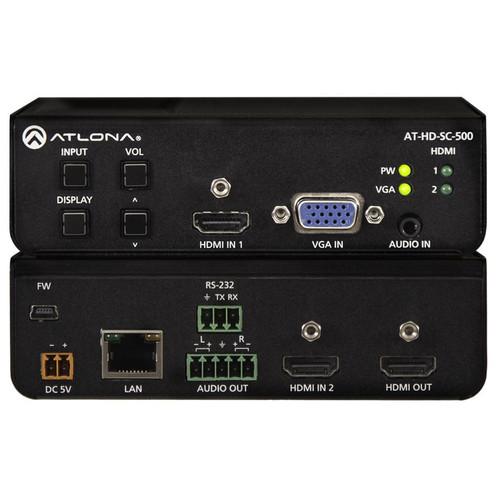

User Manual for Atlona AT-HD-SC-500 3-Input Switcher and Scaler Click to enlarge the picture
Contents of the user manual for the Atlona AT-HD-SC-500 3-Input Switcher and Scaler
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona AT-HD-SC-500 3-Input Switcher and Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Set up an A/V space in your office, boardroom, classroom, or theater with the Atlona AT-HD-SC-500 3-Input Switcher and Scaler. With dual HDMI inputs and a VGA input that can be routed to a single HDMI output, the AT-HD-SC-500 is best for smaller A/V applications. Set the output resolution to fit your television, monitor, or projector, and the AT-HD-SC-500 will automatically scale the incoming SD, HD, or VESA signal to fit the selected resolution. This functionality ensures that output video will be compatible with the display in use with minimal to no handshake time. Professional integration connections include balanced analog audio outputs on captive screw connections for de-embedding audio as well as RS-232 and Ethernet for machine and IP control, respectively. A power supply is included and rack ears are provided for installation in equipment rooms. - Scales incoming signals up to 1920x1200
- 3 input, 1 output switcher
- Auto-switching (activated through RS-232 or web GUI)
- HDMI inputs support DVI and DisplayPort signals (with separately available adapters)
- Audio input for embedding audio onto video signals
- Brightness, contrast, hue, saturation, and sharpness controls
- Adjustable bass and treble output
- Balanced analog audio output for de-embedding audio for sending to amplifiers or audio systems
- Control via RS-232, TCP/IP, web GUI, and OSD
- Switchable HDCP compliance
- Firmware upgradable for easy field service through USB or web GUI
UPC: 846352004668 In the Box Atlona AT-HD-SC-500 3-Input Switcher and Scaler Power Supply 3 x Captive Screw Connectors Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-HD-SC-500 3-Input Switcher and Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HD-SC-500 Specs | Input Resolutions | TV:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
576p
480p
NTSC
PAL
VESA:
1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480
Preferred Resolutions: 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1366 x 768, 1920 x 1080, 1920 x 1200 | | Output Resolutions | TV:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 25/29.97/30/50/59.94/60
VESA:
1920 x 1200, 1680 x 1050, 1600 x 900, 1400 x 1050, 1366 x 768, 1280 x 1024, 1280 x 800, 1024 x 768, 800 x 600 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2 | | Color Depth | 8/10/12-bit | | Inputs | 2 x HDMI Type A
1 x VGA
1 x 3.5mm analog stereo audio
1 x RJ-45 Ethernet
1 x Captive screw RS-232
1 x USB Micro-B firmware
1 x Captive screw DC Power | | Outputs | 1 x HDMI Type A
1 x Captive screw balanced stereo analog audio | | Audio Sampling Frequency | 32/44.1/48/88.2/96/176.4/192 kHz | | Audio Bit Depth | Up to 24-bit | | Transmission Distance | HDMI: Up to 30' / 10 m | | HDMI Specification | Bandwidth: 6.75 Gbps
CEC: Power On/Off (Supported under HDMI 1.2A equipment)
HDCP: Switchable | | Power Supply | Input: 110-240 VAC, 0.5 A, 50/60 Hz
Output: 5 VDC, 3.6 A | | Power Consumption | 10.4 W | | Environmental | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 20-90%, non-condensing | | Dimensions | 1.5 x 5 x 4" / 38 x 127 x 102 mm | | Weight | 0.6 lb / 270 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 11.2 x 7.3 x 2.9" |
