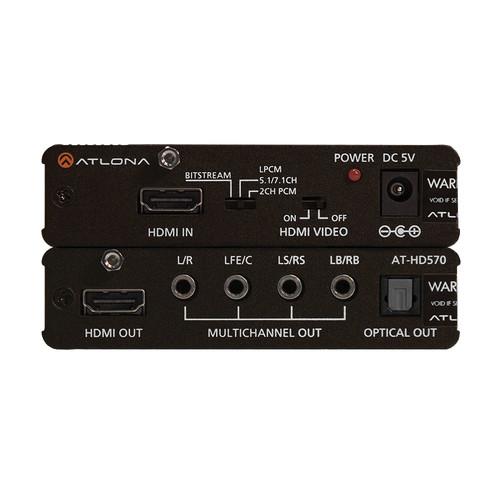

Product description Send embedded HDMI audio out to an optical or legacy analog receiver for surround sound with the Atlona AT-HD570 HDMI Audio De-Embedder. The unit features HDMI in and out, and does not effect the video quality of the HDMI signal. Audio embedded in the incoming HDMI signal is de-embedded by the AT-HD570 and sent out via optical digital or converted to analog and output via multi-channel 3.5mm outputs. Many multi-channel formats are supported including 5.1 and 7.1-channel LPCM as well as Dolby Digital and DTS varieties. UPC: 878248008399 In the Box Atlona AT-HD570 HDMI Audio De-Embedder Power Supply Limited 10-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-HD570 HDMI Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HD570 Specs | | | Resolution Support | Video:
1080p
1080i
720p
576p
480p
NTSC
PAL
VESA:
640 x 480
800 x 600
1024 x 768
1280 x 1024
1360 x 768
1600 x 1200
1920 x 1200 | | Color Space | YCbCr 4:4:4, xvYCC | | Color Depth | 24-bit pass-through | | Inputs | 1 x HDMI Type A | | Outputs | 1 x HDMI Type A | | | | Format Support | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio | | Bit Depth | Up to 24-bit pass-through | | Sample Rates | 32 kHz
44.1 kHz
48 kHz
88.2 kHz'
96 kHz
176.4 kHz
192 kHz | | THD + N | -95 dB | | Outputs | 1 x Multi-channel output over 4 3.5mm jacks
1 x Optical output | | | | Transmission Distance | HDMI: 50' / 15 m | | Signal | Bandwidth: 6.75 Gbps
CEC: Yes
HDCP: Compliant | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% non-condensing | | Power | Consumption: 6 W (1 W, idle)
Supply: 5 VDC, 2.6 A | | Dimensions | 1 x 4 x 5.9" / 25 x 102 x 150 mm | | Weight | 0.7 lb / 320 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.1 x 7.3 x 2.9" |
