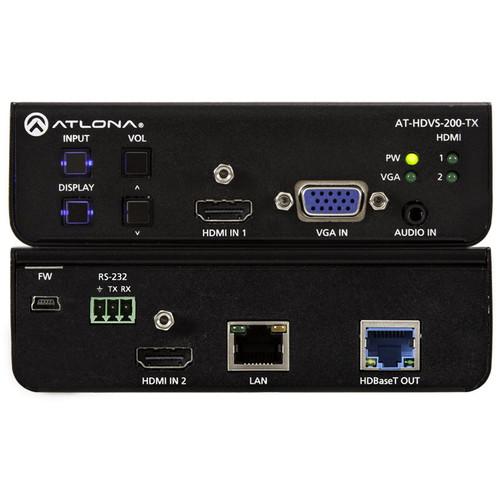

Product description Make the Atlona AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher, with PoE, the center of a small automated A/V setup for a compact and versatile solution. Featuring two HDMI inputs and a VGA input with analog audio, the AT-HDVS-200-TX will accept video signals from most media players and computers and send them along an HDBaseT interface. HDBaseT carries video, audio, control, and other important signal types down a single category cable for reliable performance up to 328'. 4K video and surround-sound audio are supported via HDMI inputs. RS-232 and Ethernet ports offer options for advanced software control, in addition to the front panel buttons. No separate power supply is required as this device operates off 48V provided by the HDBaseT connection to the separately available receiver. - General Features
-
- Auto-display control when using TCP/IP, RS-232, or CEC
- Auto-switching with video detection technology activated through RS-232, IP, or webGUI
- Control audio volume for HDBaseT output or display
- Analog audio embedding with standalone audio option
- Supports up to 4K resolutions at 60 Hz in 4:2:0 color space
- Ethernet pass-through for configuration, upgrading, and device management/control
- Supports Dolby TrueHD and DTS-HD Master Audio over HDMI
- HDCP and EDID management
UPC: 846352004637 In the Box Atlona AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher (PoE) Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-HDVS-200-TX Three-Input HDMI VGA to HDBaseT Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-200-TX Specs | | | Resolution Support | Video:
4096 x 2160 24 / 25 / 30 / 50 / 60
3840 x 2160 24 / 35 / 30 / 50 / 60
2048 x 1080
1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i50 / 59.94 / 60
720p50 / 59.94 / 60
576p
480p
NTSC
PAL
VESA:
2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900 / 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | | | Analog | 2-Ch Stereo | | HDMI | PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio | | Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | | | Category | Cat5e/6 @ 4K: 230' (70 m)
Cat5e/6 @ HD: 328' (100 m)
Cat6a/7 @ 4K: 328' (100 m) | | HDMI | 4K: 15' (5 m)
HD: 30' (15 m) | | | | Bandwidth | 10.2 Gbps | | CEC | Yes | | HDCP | 1.4 | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 14°F (-20 to 60°C) | | Humidity | 20-90%, Non-condensing | | | | Power Consumption | 30 W | | Compliance | CE, FCC | | Dimensions | 1.5 x 5.0 x 4.0" (38 x 127 x 102 mm) | | Weight | 0.6 lb (290 g) | | | | Package Weight | 1.085 lb | | Box Dimensions (LxWxH) | 8.8 x 7.35 x 2.95" |
