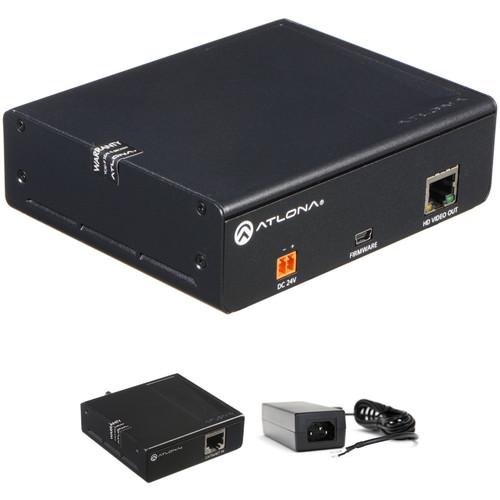

User Manual for Atlona AT-HDVS-TX HDBaseT Extender with AT-HDRX Receiver Kit Click to enlarge the picture
Contents of the user manual for the Atlona AT-HDVS-TX HDBaseT Extender with AT-HDRX
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona AT-HDVS-TX HDBaseT Extender with AT-HDRX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Send HDMI or VGA signals over HDBaseT with this Atlona AT-HDVS-TX HDBaseT Extender with Receiver Kit from . Included in this three-piece kit are a transmitter, a receiver, and a power supply. The transmitter can connect to two HDMI sources as well as a VGA source with a separate stereo analog audio input. Any of the video sources can be sent losslessly over HDBaseT to the receiver, where it is output as an HDMI signal. The included power supply connects to the transmitter and powers the receiver as well over HDBaseT. See below for more information on the items included in this kit. - Atlona AT-HDVS-TX VGA/Audio + Two HDMI to HDBaseT Extender Switcher with Display The AT-HDVS-TX VGA/Audio plus Two HDMI to HDBaseT Extender Switcher with Display Control from Atlona allows you to transmit HDMI and VGA signals over HDBaseT with resolutions up to 1080p and 1920 x 1200. It features two HDMI inputs and one VGA input with analog audio. A single HDBaseT output lets you send one of the input signals to any Atlona HDBaseT receiver or display with an HDBaseT input at distances up to 230'. The transmitter can be powered using a separately available power supply, or from compatible receivers using power of category cable. It can also supply power to receivers over category cable when connected to the power supply.
When used with the optional AT-HDVS-RX Receiver, you gain RS-232 display control and input selection of any of the three input sources. It can also de-embed the two channels of balanced audio on output to send to an amplifier. The transmitter is firmware-upgradeable via a USB port and includes a pair of mount ears for attaching underneath a table, desk, or stand. A captive screw connector for the power input is also included, allowing you to cut the cable to a desired length, reducing cable clutter.
Note: A 5V hot plug event is used to trigger input selection on optional receiver. If a 5V signal is not detected, the source will not change.
Note: It is possible that some displays may have issues with VGA sources that don't have the same timings as HDMI sources used with the same displays. -
- Two HDMI inputs
- VGA input with 3.5mm analog audio
- Embeds analog audio with VGA onto HDBaseT output
- Auto-switching for easy input management
- Extends resolutions of 1080p and 1920 x 1200 up to 230' over Cat6a/7 cable
- Supports RS-232 display control and input selection from optional AT-HDVS-RX Receiver
- Can be powered via separately available power supply or compatible receivers over catX cable
- Cable provides power over catX cable to receiver when connected to a power supply
- Firmware upgrade via USB for easy field service
- Includes mounting ears for attaching underneath a table, desk, or stand
UPC: 846352004118 - Atlona HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver The Atlona HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver provides your high-definition display systems with Full HD 1080p video feeds via an HDMI connection. This unit is capable of receiving signals from a compatible transmitter (sold separately) for a distance of up to 230’ (70.1m). It provides pass-through support for 1080p and 1920 x 1200 video signals, as well as lossy and lossless audio signals.
- Allows you to combine audio, video, and power in a single CAT5e/6/7 cable
- PoCc (Power over Category cable) enables reception of power from a compatible transmitter; simply connect your receiver to a compatible transmitter to power on
- Using the correct CAT cable and a compatible transmitter, the HDRX can receive signals for a distance up to 230' (70m)
- Pass-through support of all 3D formats
- DTS-HD Master Audio and Dolby TrueHD audio pass-through
- Small form factor and single line feature allow you to mount the HDRX behind a TV or rack for a clean and clutter-free setup
- Field serviceable firmware port
- Includes dual purpose wall/rack mount ears for wall or rack mounting
- Pass-through support for 1080p and 1920 x 1200 video signals and lossy and lossless audio signals
UPC: 846352003814 - Atlona 24V 2.7 Amp Captive Screw Power Supply The Atlona 24V 2.7 Amp Captive Screw Power Supply is a replacement power supply for the following Atlona transmitters and receivers: AT-HDTX, AT-HDRX-IR, AT-HDTX-IR, AT-HDRX-RSNET, and AT-HDTX-RSNET.
-
- Input AC: 100-240V, 50-60Hz, 1.5A
- Output DC: 24V - 2.7A
- Certifications: FCC, RCM, cULus, CE, RoHS
- Rated for indoor use only
UPC: 846352004873 In the Box - AT-HDVS-TX VGA/Audio + Two HDMI to HDBaseT Extender Switcher with Display zvzzsxsucfbydxre
- Captive Screw Connector (Power)
- 2 x Under-Table Mount Ears
- Limited 10-Year Warranty
- HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver
- 24V 2.7 Amp Captive Screw Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-HDVS-TX HDBaseT Extender with AT-HDRX Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atlona AT-HDVS-TX VGA/Audio + Two HDMI to HDBaseT Extender Switcher with Display
| Bandwidth | 4.95 Gbps | | Video Input | 1 x VGA
2 x HDMI | | Video Output | 1 x RJ45, HDBaseT | | Audio Input | 1 x 3.5 mm Mini analog audio (VGA only) | | Firmware Updates | 1 x Mini USB | | Power Connector | 1 x Captive screw | | Power Consumption | 6 W (15 W when paired with optional HDVS-RX Receiver) | | Audio | Passes two-channel PCM | | Resolution | Video: Up to 1080p
Computer Graphics: Up to 1920 x 1200 | | Transmission Distance | 230' (70 m) @ 1080p over Cat6a/7
197' (60 m) @ 1080p over Cat5e/6 | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (20 to 60°C) | | Certifications | CE, FCC, RoHS, and cULus for power supply | | Dimensions | 1.5 x 5.1 x 3.9" (3.8 x 12.7 x 10.2 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 11.3 x 7.45 x 2.85" | - Atlona HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver
| Bandwidth | 10.2 Gbps | | Video | Resolution: Up to 4K x 2K, VESA up to 1920 x 1200 | | Audio | Passes through up to Dolby TrueHD or DTS-HD Master Audio | | Distance | 230.0' (70.1 m) @ 1080p over CAT6a/7
197' (60 m) @ 1080p over CAT5e/6
130.00' (39.62 m) @ 4K x 2K | | Wall Mountable | Yes | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Power Consumption | 9.1 W | | Dimensions (H x W x D) | 0.95 x 2.87 x 2.72" (24.13 x 72.89 x 69.09 mm) | | Weight | 0.25 lb (0.11 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 4.85 x 2.3" | - Atlona 24V 2.7 Amp Captive Screw Power Supply
| | | Box Dimensions (LxWxH) | 8.3 x 6.4 x 4.8" |
