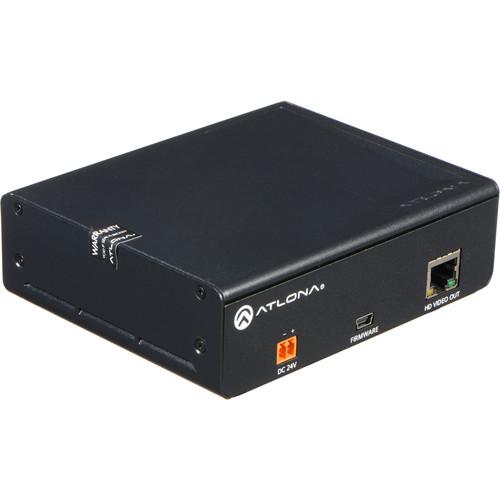

User Manual for Atlona AT-HDVS-TX VGA Audio Two HDMI to HDBaseT Extender Switcher with Display Click to enlarge the picture
Contents of the user manual for the Atlona AT-HDVS-TX VGA Audio Two HDMI
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona AT-HDVS-TX VGA Audio Two HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The AT-HDVS-TX VGA/Audio plus Two HDMI to HDBaseT Extender Switcher with Display Control from Atlona allows you to transmit HDMI and VGA signals over HDBaseT with resolutions up to 1080p and 1920 x 1200. It features two HDMI inputs and one VGA input with analog audio. A single HDBaseT output lets you send one of the input signals to any Atlona HDBaseT receiver or display with an HDBaseT input at distances up to 230'. The transmitter can be powered using a separately available power supply, or from compatible receivers using power of category cable. It can also supply power to receivers over category cable when connected to the power supply.
When used with the optional AT-HDVS-RX Receiver, you gain RS-232 display control and input selection of any of the three input sources. It can also de-embed the two channels of balanced audio on output to send to an amplifier. The transmitter is firmware-upgradeable via a USB port and includes a pair of mount ears for attaching underneath a table, desk, or stand. A captive screw connector for the power input is also included, allowing you to cut the cable to a desired length, reducing cable clutter.
Note: A 5V hot plug event is used to trigger input selection on optional receiver. If a 5V signal is not detected, the source will not change.
Note: It is possible that some displays may have issues with VGA sources that don't have the same timings as HDMI sources used with the same displays. -
- Two HDMI inputs
- VGA input with 3.5mm analog audio
- Embeds analog audio with VGA onto HDBaseT output
- Auto-switching for easy input management
- Extends resolutions of 1080p and 1920 x 1200 up to 230' over Cat6a/7 cable
- Supports RS-232 display control and input selection from optional AT-HDVS-RX Receiver
- Can be powered via separately available power supply or compatible receivers over catX cable
- Cable provides power over catX cable to receiver when connected to a power supply
- Firmware upgrade via USB for easy field service
- Includes mounting ears for attaching underneath a table, desk, or stand
UPC: 846352004118 In the Box Atlona AT-HDVS-TX VGA/Audio + Two HDMI to HDBaseT Extender Switcher with Display Captive Screw Connector (Power) 2 x Under-Table Mount Ears Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-HDVS-TX VGA Audio Two HDMI to HDBaseT Extender Switcher with Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-TX Specs | Bandwidth | 4.95 Gbps | | Video Input | 1 x VGA
2 x HDMI | | Video Output | 1 x RJ45, HDBaseT | | Audio Input | 1 x 3.5 mm Mini analog audio (VGA only) | | Firmware Updates | 1 x Mini USB | | Power Connector | 1 x Captive screw | | Power Consumption | 6 W (15 W when paired with optional HDVS-RX Receiver) | | Audio | Passes two-channel PCM | | Resolution | Video: Up to 1080p
Computer Graphics: Up to 1920 x 1200 | | Transmission Distance | 230' (70 m) @ 1080p over Cat6a/7
197' (60 m) @ 1080p over Cat5e/6 | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (20 to 60°C) | | Certifications | CE, FCC, RoHS, and cULus for power supply | | Dimensions | 1.5 x 5.1 x 3.9" (3.8 x 12.7 x 10.2 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Package Weight | 0.98 lb | | Box Dimensions (LxWxH) | 11.3 x 7.45 x 2.85" |
