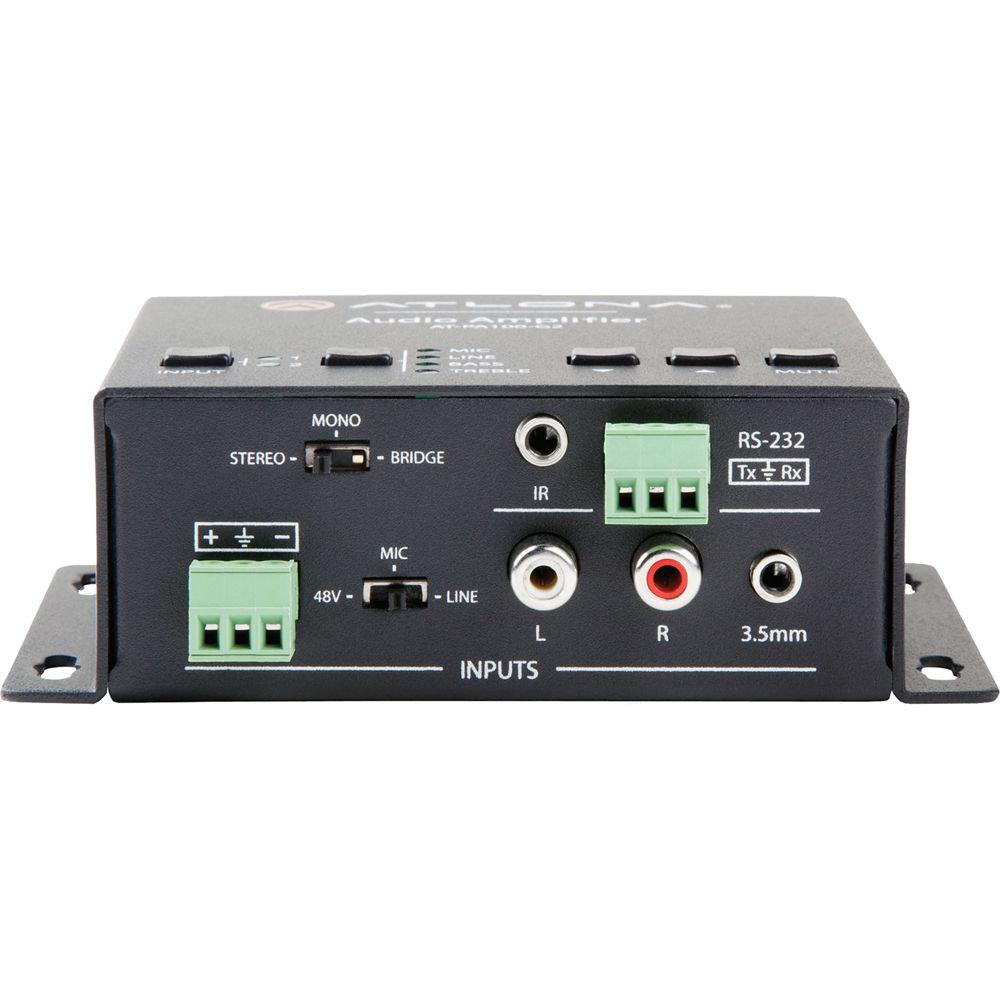

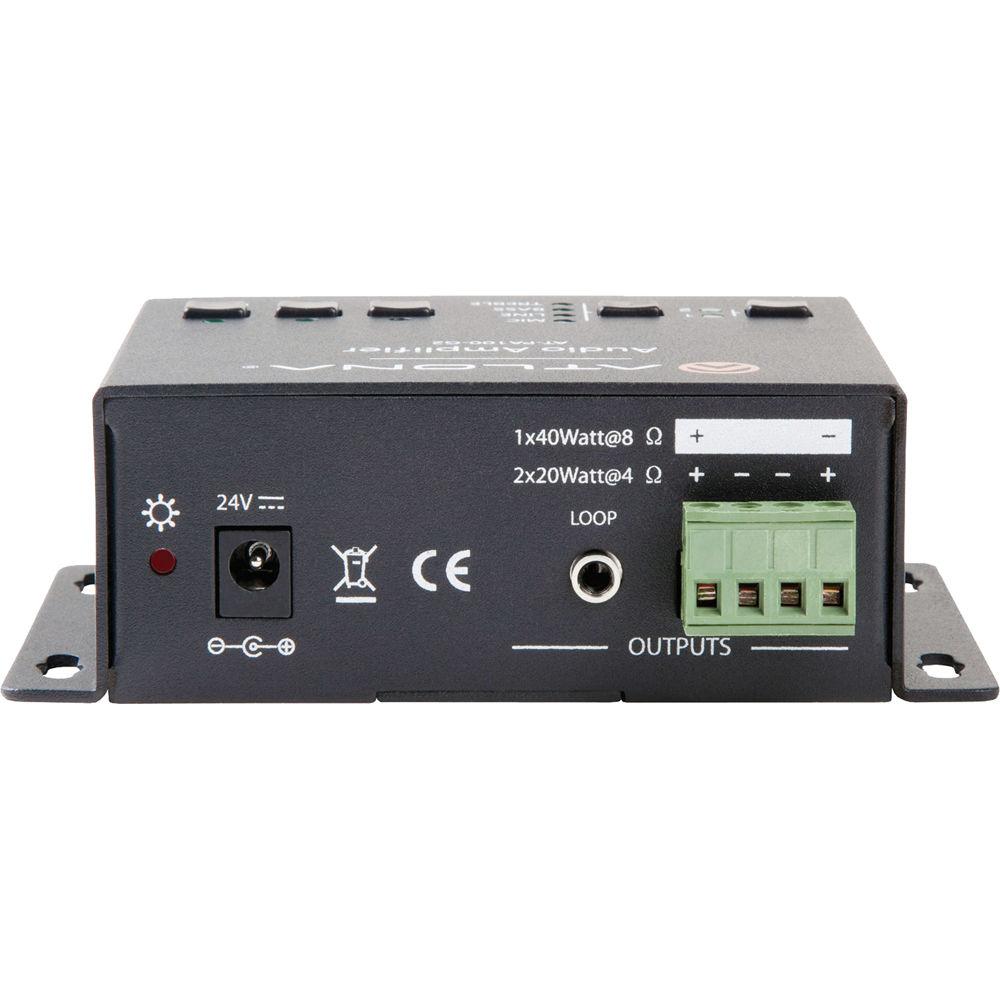

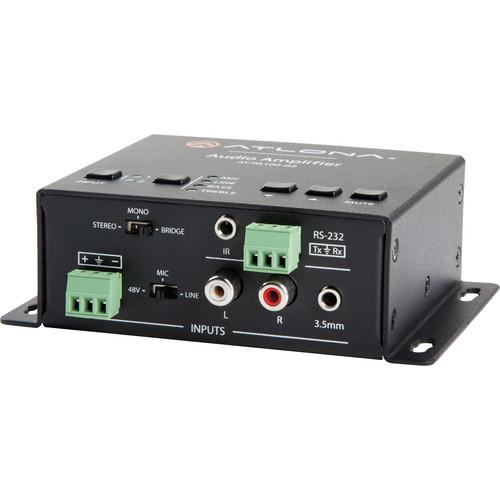

Product description The Atlona AT-PA100-G2 Stereo / Mono Audio Amplifier is a small, energy efficient amplifier well suited for classrooms, offices, and other smaller system environments. Available with 2 x 20W outputs or a single bridged 40W output, the AT-PA100-G2 can work in mono or stereo configurations. For inputs, the front panel features a stereo RCA, stereo 1/8", and microphone via Euroblock connectors. The system can be controlled via infrared remote or from the RS-232 connector. A loop output allows the unit to be connected to an additional amplifier. The Atlona AT-PA100-G2 ships with a locking power adapter. -
- Energy Efficient: Requiring less power, Class-D amplifiers use an efficient design that reduces size and cost. By removing the need for large heat sinks and power regulators, the PA100-G2 is easy to integrate with a small size that fits into most spaces
- Use Any Microphone:
- Featuring a balanced 3-pin captive screw connector, it’s easy to attach any mic or line level source
- 3-position input switch offers settings for 48V, which provides phantom power for condenser mics, Mic for dynamic and battery-powered mics, and Line for line-level wireless mics
- Line Level Inputs:
- Unbalanced line level inputs are provided on stereo RCA and 3.5mm TRS mini connectors
- Top-mounted input selection button toggle between the RCA input and 3.5mm audio input
- Independent Adjustment of Microphone and Line Level Inputs
- Top-mounted selector and adjustment controls allow gain to be matched between microphone and unbalanced line level inputs
- Ensures proper balance between sources
- RS-232 Control
- The AT-PA100-G2 has three control options: RS-232, IR, and Panel Buttons so it can be integrated into any control system
- Controllable functions include: Volume (microphone and line input,) bass, or treble levels
- Audio Output Format Switch: Use to switch between stereo, dual channel mono, and bridged audio outputs
- Loop Output: Loop out to another AT-PA100-G2 or audio amplifier with a 3.5mm stereo audio connector
- Limited 10-Year Warranty
- Ensures long-term product reliability and performance in residential and commercial systems
- Specify, purchase, and install with confidence
UPC: 846352003913 In the Box Atlona AT-PA100-G2 Stereo / Mono Audio Amplifier AC Adapter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-PA100-G2 Stereo Mono Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-PA100-G2 Specs | | | Rated Output | 2 x 20 W
1 x 40 W (bridged operation) | | Gain | 32 dB | | Frequency Range | 20 Hz to 20 kHz | | S/N Ratio | 80 dB (at maximum output) | | Total Harmonic Distortion | 1% (1 kHz), 0.3% (20 kHz) at nominal levels | | Input Impedance | Input 1 & 2: >10 kOhms | | Mic | Input Impedance
48 V: 35 kOhms
Mic: 10 kOhms
Line: 75 kOhms
Audio Detection Delay: 1 ms | | Output Impedance | 3.5 mm Loop Out: 50 Ohms stereo
Speaker Out: 4 to 8 Ohms amplifier | | Stereo Channel Separation | >75 dB from 20 Hz to 20 kHz | | Common Mode Rejection Ratio | >70 dB from 20 Hz to 20 kHz | | Audio Detection | Mic Audio Detection Delay: 1 ms | | | | Input Ports | 2 x RCA connectors
1 x 1/8" / 3.5 mm audio
1 x 1/8" / 3.5 mm IR
1 x Captive screw mic
1 x Captive screw RS-232 | | Output Ports | 1 x Captive screw audio
1 x 1/8" / 3.5 mm loop out | | Power | Consumption: 40 W
Idle Consumption: 4 W
Power Supply Input: 100 to 240 VAC 50/60 Hz
Output: 24 VDC, 5 A | | Temperature & Humidity | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Humidity: 20% to 90% (non-condensing) | | Certification | CE, FCC, RoHS, cULus | | Dimensions (H x W x D) | 1.5 x 3.8 x 3.4" (38.0 x 96.0 x 87.0 mm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.4 x 8.0 x 2.8" |
