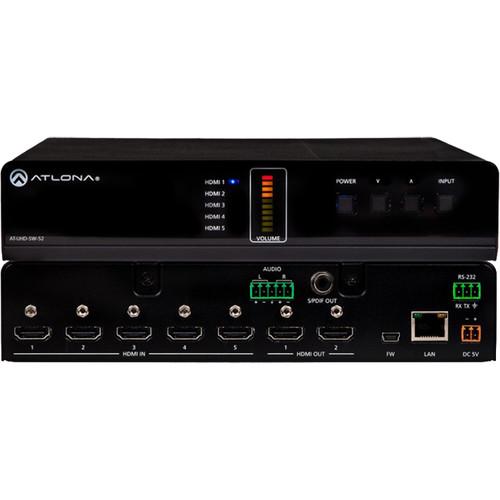

User Manual for Atlona AT-UHD-SW-52 4K UHD 5-Input HDMI Switcher with Mirrored HDMI Outputs Click to enlarge the picture
Contents of the user manual for the Atlona AT-UHD-SW-52 4K UHD 5-Input HDMI
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona AT-UHD-SW-52 4K UHD 5-Input HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Switch any of five HDMI inputs to display on two outputs simultaneously with the Atlona AT-UHD-SW-52 4K/UHD 5-Input HDMI Switcher with Mirrored HDMI Outputs. Accepting of video resolutions up to DCI 4K (4096 x 2160), the AT-UHD-SW-52 can handle high-resolution video and graphics for use in professional presentations and A/V integration.Multichannel audio can be passed through to both HDMI outputs or de-embedded and output via the digital S/PDIF connection. A balanced analog stereo output via a 5-pin captive screw connector is also available for de-embedding stereo LPCM audio, useful for connecting to conventional professional audio equipment.The HDMI output has switchable HDCP 1.4 compliance and EDID management for compatibility with a variety of content sources and displays. This unit can be configured via the OSD using the included remote control or RS-232 connection. Front panel controls can be used for input selection and volume adjustment. The LAN connection offers web-based GUI configuration if you have Atlona's AMS software installed. For use in a standard 19" equipment rack, rack ears are included. - 4K/UHD Capability
-
- Compatible with Ultra High Definition sources and displays
- Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
- Supports up to HDCP 1.4
- Auto-Switching
-
- Selects active input when sources are connected or if there is a change in source power status
- Reduces complexity or eliminates control system completely
- TCP/IP, RS-232, and IR Control
- Flexible control options compatible with third-party control systems
- EDID Management
-
- Manages EDID communications between source and destination; allows integrators to force sources to preferred resolution
- Ensures that desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
- HDCP Management
-
- HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
- Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems, while protected content is not transmitted
- GUI-Based Configuration Using Integrated Web Server
-
- Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID, and HDCP management and audio
- Allows fast configuration of internal product settings and troubleshooting from a tablet, smartphone, or PC in the field
- Volume Controls
-
- Volume Up/Down button adjusts output level to sound system
- Provides quick level adjustment
- Volume indicator for simple level display
- Balanced Line-Level Stereo Output
-
- Reduces noise and requirement for external components
- Matches requirements of commercial sound systems
- Multichannel Audio Compliant
-
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
- Allows any multichannel audio stream to be used within a professional audio system
- 1 RU Rack-Mountable, Half-Rack Width Enclosure
-
- Installs easily in rack-mounted systems with the included 19" rack mount brackets
- Simplifies installations; allows two units to be mounted together
UPC: 846352004323 In the Box Atlona AT-UHD-SW-52 4K/UHD 5-Input HDMI Switcher with Mirrored HDMI Outputs Power Supply IR Remote Control Rackmount Bracket Kit Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona AT-UHD-SW-52 4K UHD 5-Input HDMI Switcher with Mirrored HDMI Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-SW-52 Specs | | | Resolution Support | Video:
4096 x 2160 24/25/30/50/60
3840 x 2160 24/25/30/50/60
2048 x 1080p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
576p
480p
NTSC / PAL
VESA:
2560 x 2048
2560 x 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024
1280 x 800
1280 x 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Colorspace Standards | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | | | Format Support | HDMI In/Out:
LPCM stereo, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
S/PDIF:
LPCM stereo, Dolby Digital, DTS 5.1 | | Sample Rates | 32/44.1/48/88.2/96/176.4/192 kHz | | Analog Audio Output | Maximum Output: Balanced +18 dBu @ 0 dBfs; stereo LPCM only | | | | Transmission Distance | HDMI In/Out @ 4K: 15' / 5 m
HDMI In/Out @ 1080p: 30' / 10 m | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass-through
HDCP: Switchable (compliant/non-compliant) | | Connectors | 1 x Mini USB type B, firmware
5 x HDMI type A, HDMI input
2 x HDMI type A, HDMI output
1 x S/PDIF, digital audio output
1 x 5-Pin captive screw L/R, analog audio output
1 x RJ45, LAN TCP/IP control
1 x 3-pin captive screw, RS-232
1 x 2-pin captive screw, 5 V power input | | Environmental | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 140°F / -20 to 60°C
Humidity: 20 to 90% Non-condensing | | Certifications | Power Supply: CE, FCC, cULus, RCM
Unit: CE, FCC | | Power Consumption | 5.9 W | | Idle Consumption | 1.6 W | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 5 VDC, 3.6 A | | Dimensions | 1.7 x 8.8 x 10.3" / 44 x 222 x 261 mm
1 RU, 1/2 rack | | Weight | 3.2 lb / 1.4 kg | | | | Package Weight | 5.68 lb | | Box Dimensions (LxWxH) | 17.1 x 12.1 x 4.0" |
