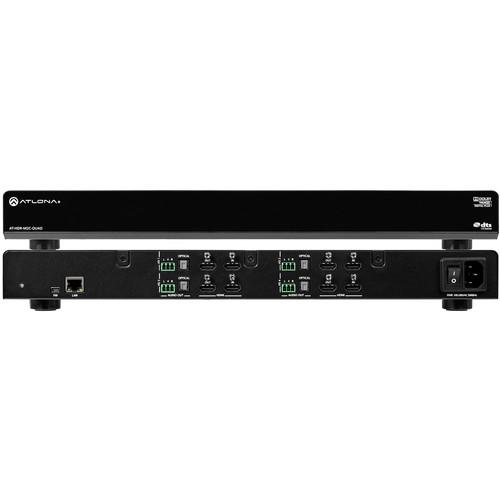

Product description Provided by third party: The Atlona AT-HDR-M2C-QUAD is an audio converter for extracting and downmixing multi-channel PCM and DTS audio from HDMI. The HDR-M2C-QUAD provides simultaneous audio conversion for four HDMI sources. Each HDMI input features pass-through on its associated HDMI output. This quad HDMI audio conversion device includes EDID management features.
- Key Features
-
- HDMI audio de-embedding and multi-channel audio downmixing for four HDMI sources
- Provides easy integration of HDMI audio sources into whole-house and other audio systems
- Extracts, decodes, downmixes, and converts digital multi-channel bitstreams to two-channel signals
- Allows protected content stream to pass between devices
- Adjustment of output volume, plus bass and treble settings via AMS and the web GUI
- Manages EDID communications with the source through a display's EDID or internally stored EDID
- Offers menu-based configuration of network settings, audio, and EDID management
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona Dolby DTS Quad HDMI to 2-Channel Down-Converter with 4K and HDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDR-M2C-QUAD Specs | | | Device Type | Audio converter | | Form Factor | Rack-mountable - 1U | | | | Connectivity Technology | Wired | | Max Resolution | 4096 x 2160 @ 60 Hz | | Status Indicators | Reset | | Features | Firmware upgradable, 4K resolution support, HDMI Pass-Through, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, EDID Management, built-in audio de-embedder, LPCM 5.1 support, Dolby Atmos support, DTS:X support, DTS Digital Surround 5.1 support, multi-channel audio downmixing, Dolby Digital support, HDR support, 10-bit Deep Color support, 8-bit Deep Color support, HDR10 support, Dolby Vision HDR support | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 4 x HDMI (input) - 19 pin HDMI Type A female
4 x HDMI (output) - 19 pin HDMI Type A female
4 x audio (output) - TOSLINK female
4 x audio (output) - 3 pin terminal block
1 x network - RJ-45 female
1 x firmware upgrade - mini-USB Type B female | | | | Included Accessories | Mounting brackets, 4 x 3-pin terminal block | | Compliant Standards | CCC, FCC, RoHS, cULus, RCM | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 28.6 Watt | | | | Width | 17.2 in | | Depth | 10 in | | Height | 1.7 in | | Weight | 7.14 lbs | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
