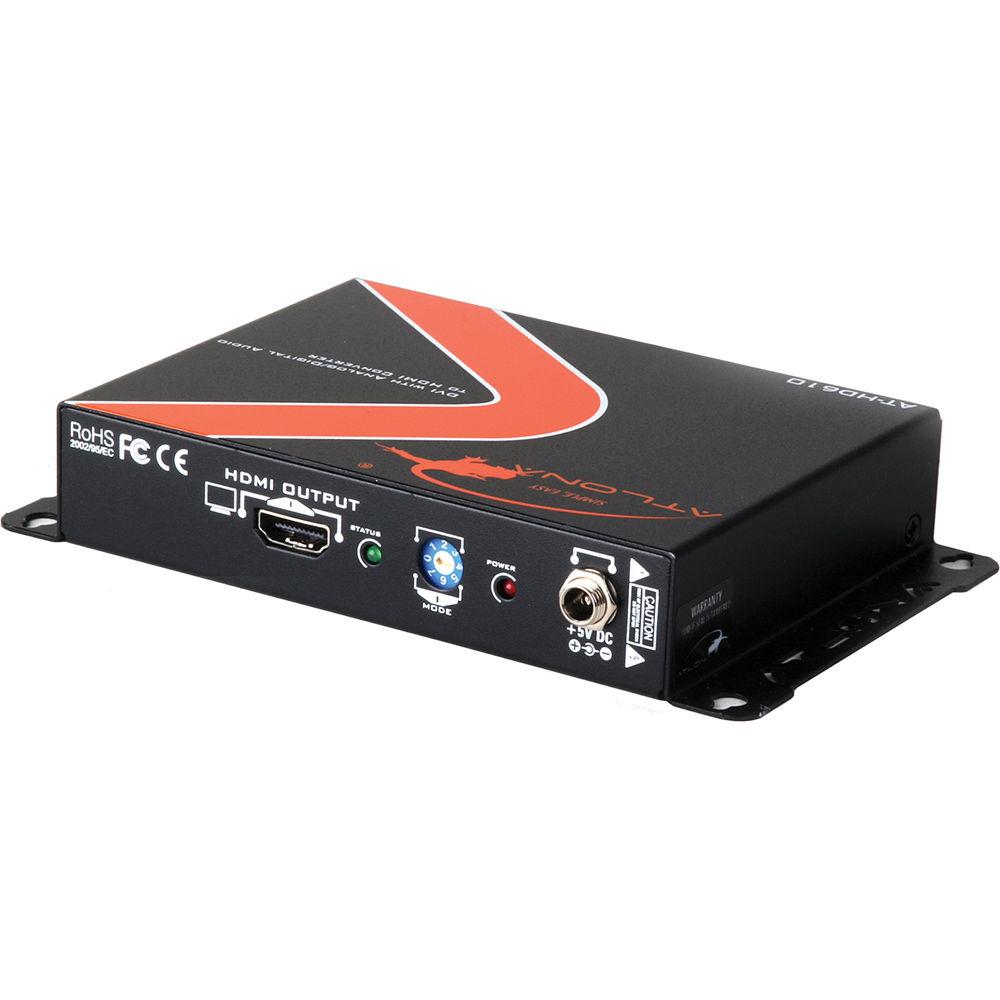

User Manual for Atlona DVI with Analog Digital Audio to HDMI Converter and Embedder Click to enlarge the picture
Contents of the user manual for the Atlona DVI with Analog Digital Audio
- Product category: Signal Converters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Signal Converters
 |
User manual for the Atlona DVI with Analog Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|

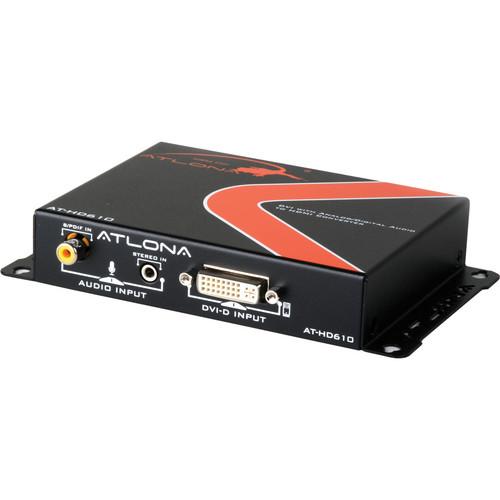

Product description The Atlona DVI with Analog/Digital Audio to HDMI Converter and Embedder allows you to take a DVI video signal and 3.5mm audio or a SPDIF audio signals and output them over a single HDMI cable. This allows for easy integration of audio and video from a computer to a display or audio receiver. It supports resolutions up to 1080p and 1920 x 1200. With an EDID learning mode, the DVI with Analog/Digital Audio to HDMI Converter and Embedder avoids compatibility issues with connected displays. - Allows you to embed a DVI, 3.5mm audio, and/or an SPDIF audio connection into a single HDMI cable
- Integrates audio and video from a computer to a display or audio receiver
- Supports resolutions up to 1080p or 1920 x 1200
- EDID learning mode - avoids compatibility issues with connected displays
- Silicon image chip-sets provide compatibility with 99.99% of AV gear
- HDMI and HDCP 2.0 compliant
- Mounting brackets for easy installation in a rack or standard mounting to a surface
- SPIDF and 3.5mm jack for analog audio input

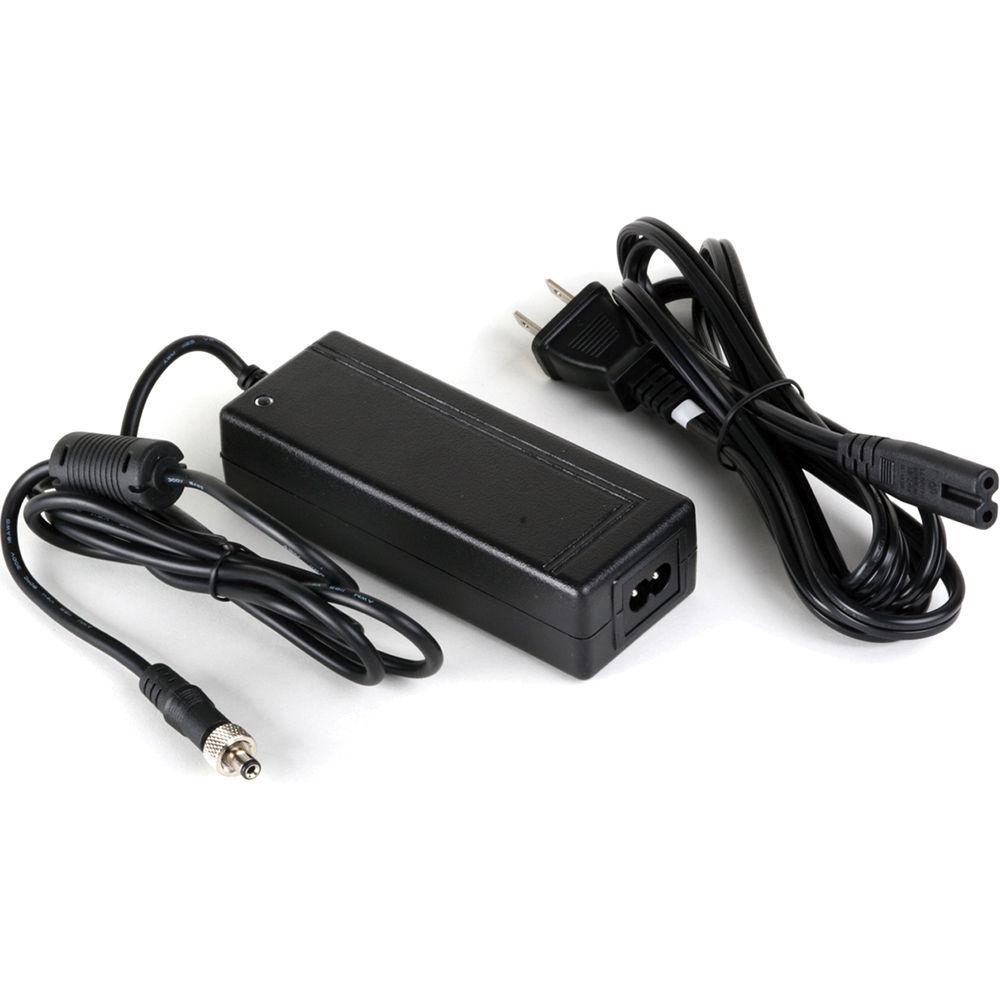

UPC: 846352001889 In the Box Atlona DVI with Analog/Digital Audio to HDMI Converter and Embedder 5 VDC Locking Power Supply Unit (110/240 VAC Universal) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona DVI with Analog Digital Audio to HDMI Converter and Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HD610 Specs | DVI Compliance | DVI 1.1 | | HDCP Compliance | Yes | | Video Bandwidth | Single-link 165 MHz (4.95 Gbps) | | Inputs | 1 x DVI
1 x SPDIF via RCA
1 x 3.5 mm | | Output | 1 x HDMI | | Power | 5 VDC, 2 A | | Dimensions | 4.9 x 3.7 x 1" (12.4 x 9.3 x 2.5 cm) | | Weight | 12 oz (340 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.5 x 6.9 x 3.1" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
