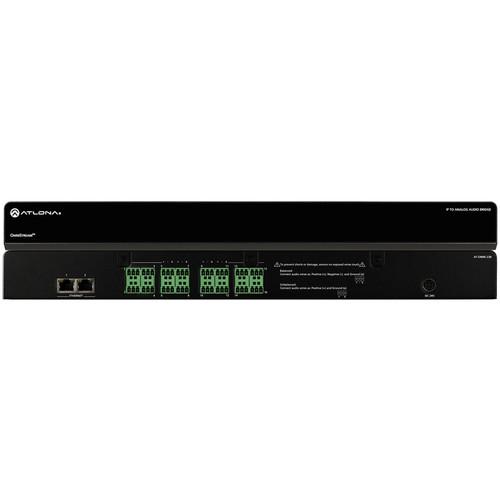

User Manual for Atlona Eight Stereo Pair OmniStream IP to Analog Audio Bridge Click to enlarge the picture
Contents of the user manual for the Atlona Eight Stereo Pair OmniStream IP
- Product category: DA & Extender/Repeater Accessories Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona DA & Extender/Repeater Accessories
|
User manual for the Atlona Eight Stereo Pair OmniStream IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Provided by third party: The Atlona OmniStream 238 receives audio streamed from OmniStream AV encoders, and delivers up to 16 audio outputs, configurable as eight stereo pairs or 16 mono channels. OmniStream features industry standard, AES67-compatible audio over IP streaming. Up to sixteen channels of PCM audio can be received by the OmniStream 238. An audio stream can be routed to one or more unbalanced or balanced outputs, each with programmable volume control. The OmniStream 238 is ideal for feeding audio from HDMI sources into a whole-house audio system, as well as multiple audio zones in a commercial AV application.
- Key Features
-
- Receives up to 16 audio streams from OmniStream AV encoders
- AES67-compatible audio over IP streaming
- Dante networked audio interface
- 16 balanced or unbalanced analog audio outputs
- Dedicated, programmable volume and mute control for each audio output
- Supports cascading up to eight units
- Easy to configure, simple to manage
- OmniStream AV over IP systems are remarkably easy to set up and manage - whether for a meeting room, residence, divisible room, or an entire university campus. Atlona Management System (AMS) 2.0 features automatic network device discovery, plus an intuitive web-based GUI that lets you configure virtual routing for AV, control, and data over the network - just as easily as you would with conventional AV matrix switching. AMS also streamlines and simplifies management of OmniStream systems through continuous system monitoring, notifications and alerts, event logging, multi-device configuration and backup, automated firmware updates, remote device control, and more.
- Dante audio networking
- The OmniStream 238 is also a Dante networked audio interface. Audinate Dante is a popular audio networking technology widely used in the commercial AV and professional audio industries. With Dante, the OmniStream 238 can be integrated with Dante-equipped DSPs and facility or enterprise-wide distributed audio systems for paging, background music, conferencing, and other applications.
- OmniStream product compatibility
- The OmniStream 238 is compatible with OmniStream Pro and OmniStream R-Type encoders, as well as the OmniStream 232 IP / analog audio bridge.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona Eight Stereo Pair OmniStream IP to Analog Audio Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-OMNI-238 Specs | | | Type | Audio over IP decoder | | Width | 17.2 in | | Depth | 25.3 in | | Height | 1.7 in | | Weight | 6 lbs | | | | Features | Power Over Ethernet support, Dante audio network interface, AES67 support | | | | Low Voltage Power | DC 24 V | | | | Terminals | (2) x network - RJ-45
(16) x balanced/unbalanced audio output - terminal block
(1) x DC power input | | | | Min Operating Temperature | 32
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
