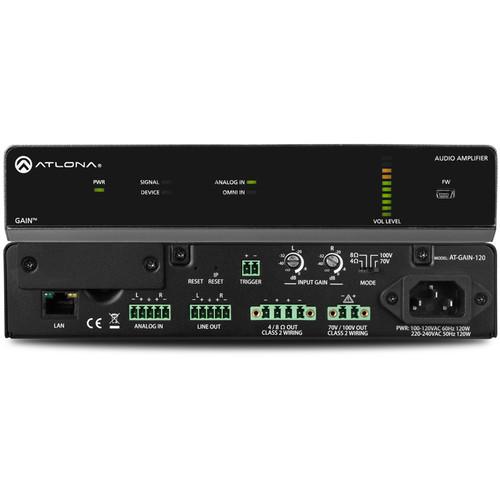

User Manual for Atlona GAIN-120 Stereo Mono Power Amplifier Click to enlarge the picture
Contents of the user manual for the Atlona GAIN-120 Stereo Mono Power Amplifier
- Product category: DA & Extender/Repeater Accessories Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona DA & Extender/Repeater Accessories
|
User manual for the Atlona GAIN-120 Stereo Mono Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Provided by third party: The Atlona Gain 120 is a compact power amplifier designed for low or high impedance applications. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system.
- Key Features
-
- Selectable low or high impedance operation
- Automatic standby
- Rear panel input level controls
- Balanced line level output for pass-through to an additional amplifier or audio system
- Integrated five-band equalizer
- TCP/IP control of volume level, muting, and EQ
UPC: 846352005207 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona GAIN-120 Stereo Mono Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-GAIN-120 Specs | | | Audio Channels | Stereo | | Functions | Amplifier | | Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 90 dB - THD - 0.1% | | Amplifier Output Details | 60 Watt - 4 Ohm - 2 channels (main)
60 Watt - 8 Ohm - 2 channels (main)
120 Watt - 1 channels (70/100V) | | Features | D-CLASS amplifier, independent gain control for each channel, 70V/100V or 4/8 Ohm operation | | | | Connectors | Balanced/unbalanced audio input (terminal block) - rear
Audio line-out (terminal block) - rear
Trigger (terminal block) - rear
Speakers output (terminal block) - rear
Network (RJ-45) - rear
USB (mini-USB Type B) - front | | | | ENERGY STAR Certified | Yes | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 120 Watt | | Power Consumption Stand by | 0.5 Watt | | | | Service & Support | Limited warranty - 10 years | | | | Width | 8.7 in | | Depth | 13 in | | Height | 1.7 in | | Weight | 19.84 lbs | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 18.3 x 11.5 x 4.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
