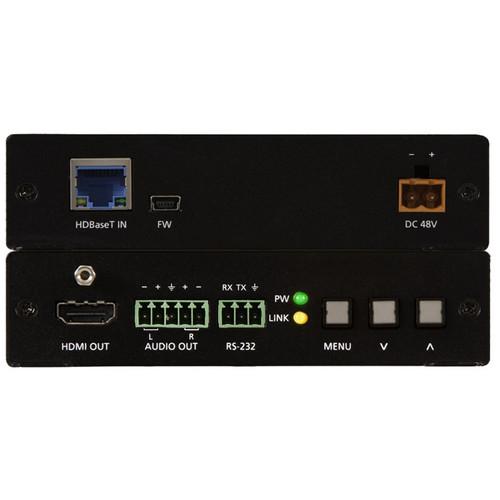

User Manual for Atlona HDBaseT Scaler Receiver with HDMI & Analog Audio Outputs Click to enlarge the picture
Contents of the user manual for the Atlona HDBaseT Scaler Receiver with HDMI
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona HDBaseT Scaler Receiver with HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Receive 1080p HDMI and VGA signals over category cable from up to 230' with this HDBaseT Scaler Receiver from Atlona. Used in combination with an HDVS-150-TX switching transmitter (available separately), this unit provides a compact, automated A/V system with the convenience of automatic input selection, display control, and HD scaling. The HDVS-150-RX powers the HDVS-150-TX remotely through Power over Ethernet, saving time and integration costs. It can be surface-mounted behind a display or above a projector.
The HDVS-150-RX offers image adjustment capability and automatically matches incoming signals to the display's native resolution. Integrated scaling and video processing help optimize image quality and switching performance. This receiver also features audio de-embedding and third-party RS-232 control of the scaler, switcher, and display. Featuring automatic display control, the HDVS-150-RX can trigger a display to power on automatically whenever a laptop or other device is connected to the HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-RX forces the display to power off. The HDVS-150-RX display control capability can also be triggered by an external control system. - Audio De-Embedding
-
- Provides two-channel, analog audio signal on balanced captive screw connectors
- Improves A/V system audio with the use of an external amplifier such as the AT-PA100-G2 (available separately)
- Long-Distance HDMI Extension
-
- Receives HDMI and VGA/audio signals up to 230' at 1080p over Cat 6a/7 and 197' at 1080p over Cat 5e/6
- Uses easy-to-integrate category cable for reliable system installation
- HD Video Scaler with HDMI Output and Input Resolution Control
-
- Scales video signals up to 1080p at 60 Hz and 1920 x 1200
- Selectable input resolution from 800 x 600 to 1920 x 1200 for a PC source
- Incoming signals can be automatically scaled to the display's native resolution
- EDID Management
-
- Manages EDID communications with a source connected to the HDVS-150-TX
- Allows integrators to set or match a PC's graphics resolution
- HDCP Management
-
- HDCP compliance can be disengaged through the on-screen menu, control software, or a control system
- Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
- RS-232 Scaler and Switcher Control
-
- Input switching (at the AT-HDVS-150-TX), image adjustments, resolution settings, and auto-set to display's native resolution can be made from a third-party control system
- Seamless integration with larger, control system-based A/V systems
- RS-232 Display Control
-
- Facilitates on/off display control
- Included software simplifies programming
- Eliminates need for complex control system in small A/V system
- Power over Ethernet for AT-HDVS-150-TX
-
- Industry-standard IEEE 802.3af PoE supplied by the receiver to the AT-HDVS-150-TX transmitter over HDBaseT
- No local AC outlet is required for powering the AT-HDVS-150-TX transmitter
- Field-Updatable Firmware
-
- Rear-panel USB port provides an easy means for device updates
UPC: 846352004767 In the Box Atlona HDBaseT Scaler Receiver with HDMI & Analog Audio Outputs External Universal Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona HDBaseT Scaler Receiver with HDMI & Analog Audio Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-150-RX Specs | | | Input | 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i at 50/59.94/60 Hz
720p at 25/29/30/50/59.94/60 Hz
576p, 576i, 480p, 480i
1920 x 1200RB
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1400 x 1050
1366 x 768
1280 x 1024
1280 x 960
1280 x 800
1280 x 768
1152 x 854
1024 x 768
800 x 600
720 x 400
640 x 480 | | Output | 1080p 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i 50/59.94/60 Hz
720p at 25/29/30/50/59.94/60 Hz
1920 x 1200
1680 x 1050
1680 x 1200
1400 x 1050
1366 x 768
1280 x 1024
1280 x 800
1024 x 768 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2 | | Color Depth | 8-, 10-, 12-bit | | | | Analog | PCM 2-channel (de-embedded) | | HDMI Out | PCM 2-channel | | HDBaseT | In: PCM 2-channel | | Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | Bit Rate | Up to 24-bit | | | | Transmission Range | Up to 197' / 60 m Over Cat 5e/6
Up to 230' / 70 m Over Cat 6a/7
Up to 30' / 10 m HDMI in/out | | | | Bandwidth | 6.75 Gb/s | | CEC | No | | HDCP Compliant | 1.4 | | | | Operating | 32 to 104°F / 0 to 40°C | | Storage | -4 to 140°F / -20 to 60°C | | Humidity | 20 to 90% non-condensing | | | | Consumption | 15 W (varies per paired transmitter) | | Supply | Input: 100-240 VAC ~ 50/60 Hz
Output: 48 VDC / 0.83 A | | | | Device | CE, FCC | | Power Supply | CE, FCC, Level VI, RoHS, cULus, RCM, CCC | | | | Dimensions | 1.18 x 4.80 x 4.92" / 3.0 x 12.2 x 12.5 cm | | Weight | 0.67 lb / 0.31 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.2 x 7.3 x 2.9" |
