User Manual for Atlona HDMI DVI to Composite and S-Video Down-Converter Click to enlarge the picture
Contents of the user manual for the Atlona HDMI DVI to Composite and
- Product category: Signal Converters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Signal Converters
 |
User manual for the Atlona HDMI DVI to Composite and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|

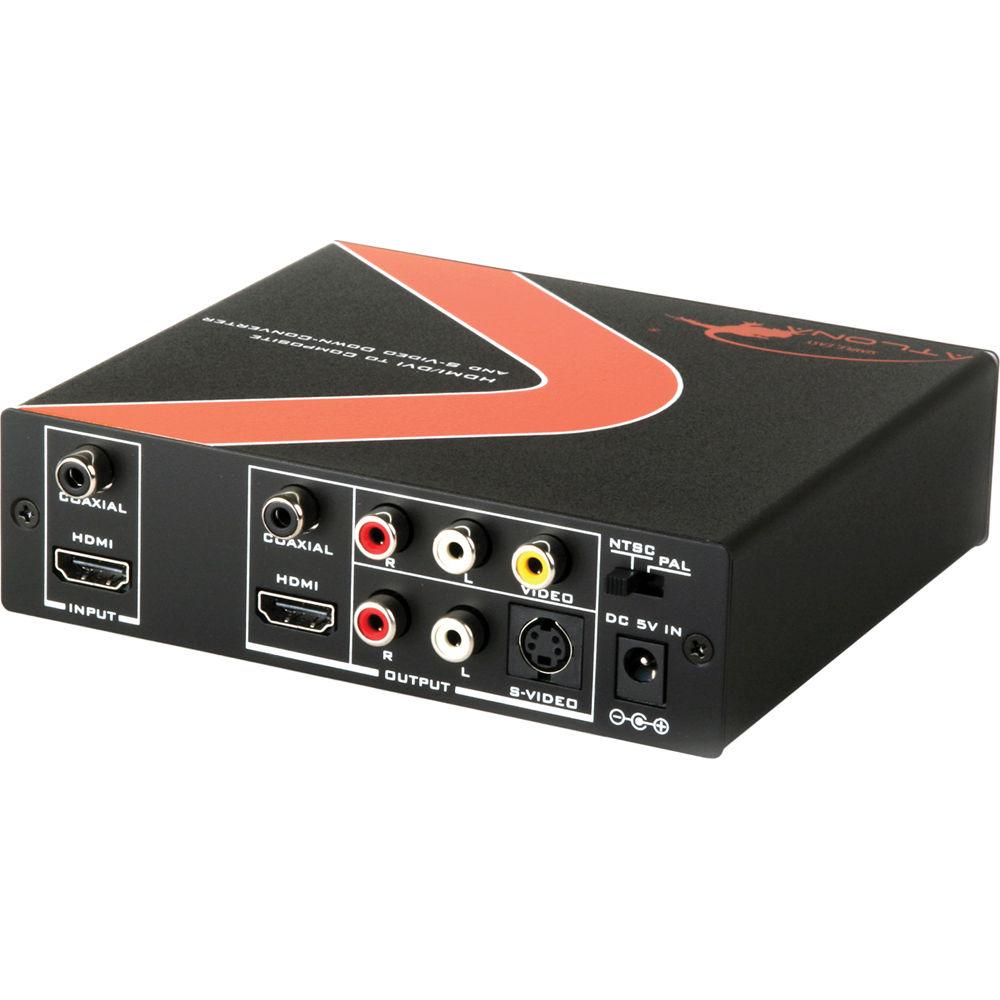

Product description The Atlona HDMI/DVI to Composite and S-Video Down-Converter automatically detects and down-converts the HDMI or DVI digital signal from a PC, Mac, GPS system, camcorder, or video game to analog S-Video or composite video with audio. It is capable of accepting any incoming resolution up to 1080p through HDTV input and up to 1600 x 1200 at 60 Hz (UXGA) through PC input.
Note: AT-HD530 is NOT-HDCP compatible and will not work with HDCP devices such as cable/satellite boxes and DVD players. It is also not compatible with 24 Hz or 30 Hz signals. - Automatically detects and down-converts the HDMI or DVI digital signal from a PC, Mac, GPS system, camcorder, or video game to analog S-Video or composite video with audio
- Accepts any incoming resolution up to 1080p through HDTV input and up to 1600 x 1200 at 60 Hz (UXGA) through PC input
- Converts the output either to NTSC or PAL format
- Output video format is selectable between composite video and S-Video

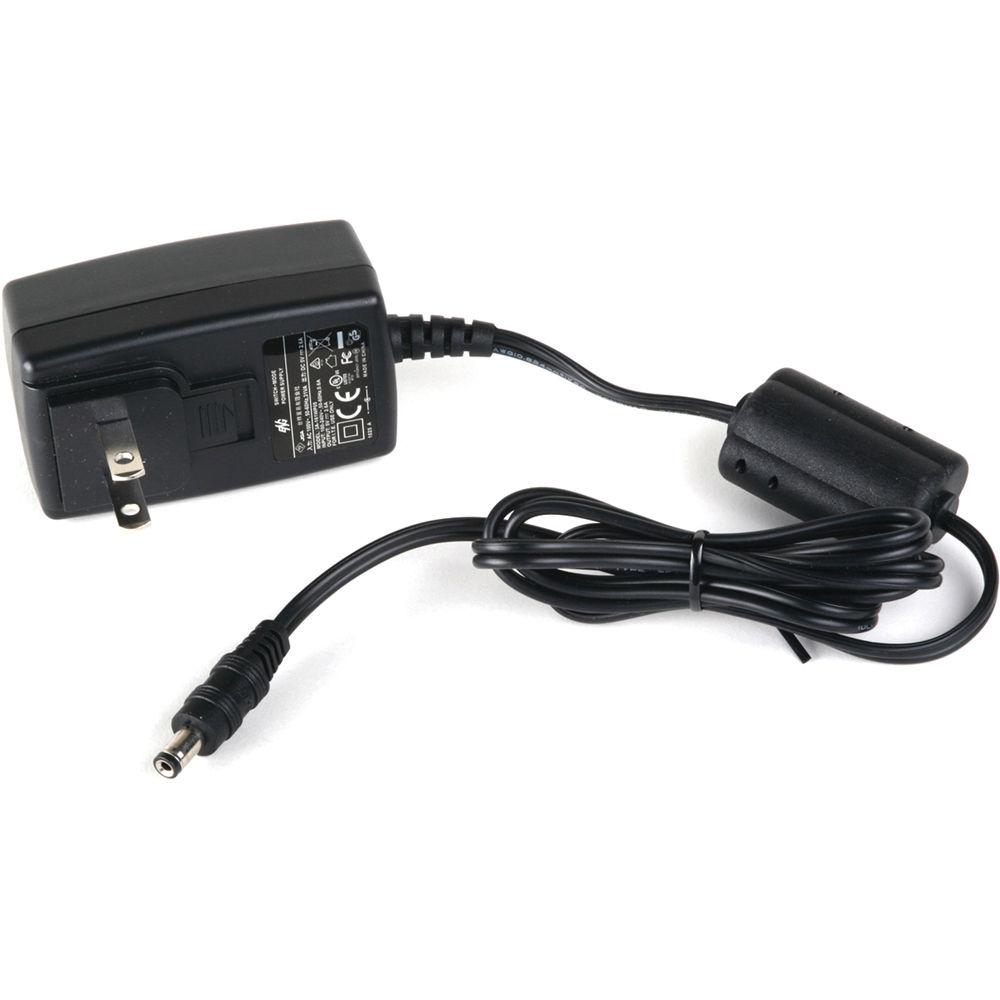

UPC: 878248001017 In the Box Atlona HDMI/DVI to Composite and S-Video Down-Converter 5 V Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona HDMI DVI to Composite and S-Video Down-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HD530 Specs | Video Input | HDMI | | Audio Input | Digital Coaxial (designed for DVI with Audio Applications) | | Outputs | 1 x Composite-Video with Audio
1 x S-Video with Audio
1 x HDMI loop-though
1 x Digital Coaxial loop-though | | Max. Resolution Support | HDMI: 1080p
PC: UXGA (1600 x 1200 at 60 Hz) | | Power Supply | 5 V, 2.6 A (universal) | | Dimensions (WxDxH) | 5.5 x 4.9 x 1.4" (13.9 x 12.4 x 3.5 cm) | | Weight | 1.2 lb (0.5 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.05 x 5.5 x 2.4" |
