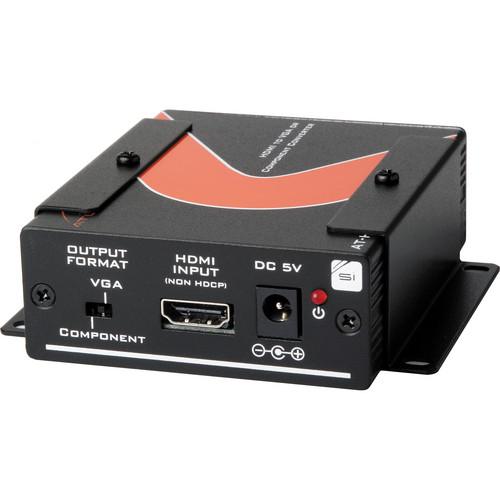

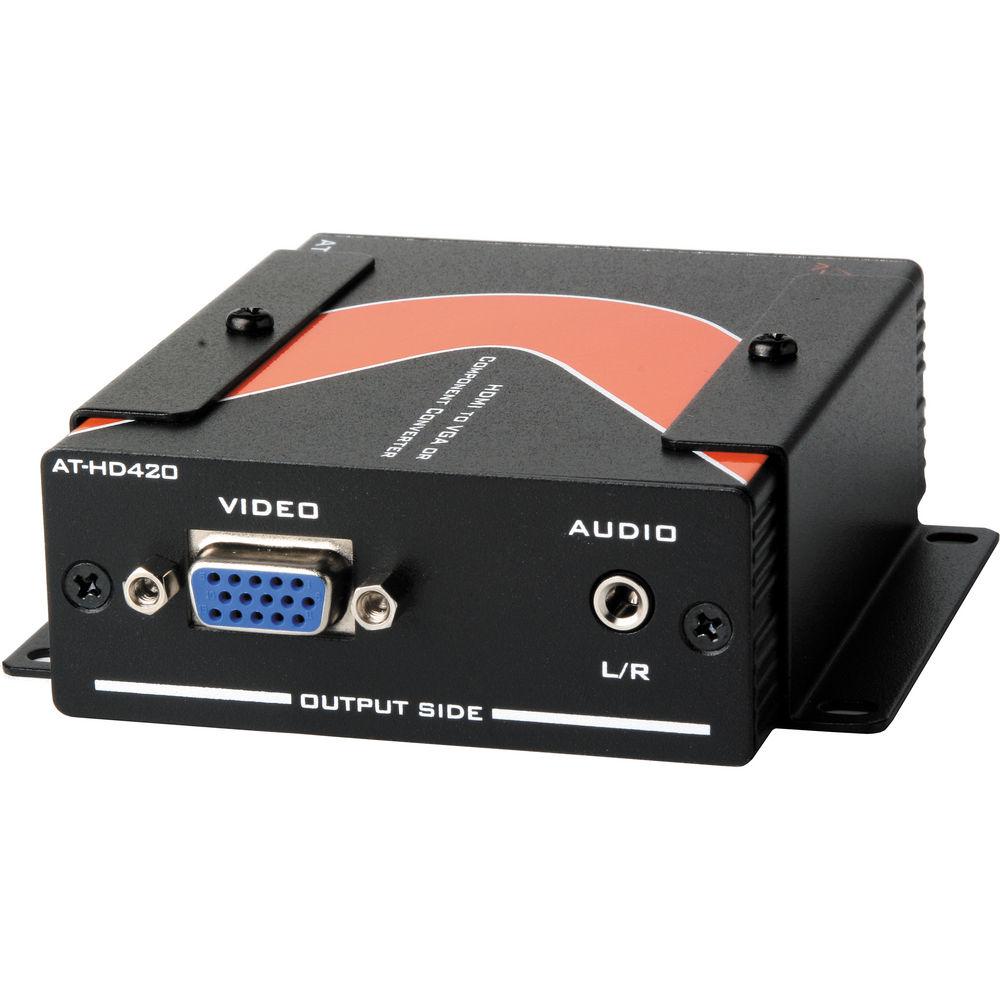

Product description The Atlona HDMI to VGA / Component & Stereo Audio Format Converter is used to convert a high-definition HDMI source with stereo audio to VGA or component video output for display on a PC monitor, projector, or TV. You can choose VGA or component video output from the converter. Offering compatibility with a wide range of PC monitors, the Converter supports VGA VESA resolutions up to 1920 x 1200 or component video up to 1080p.
De-embedding of audio signals allows the HDMI to VGA / Component converter to provide audio output on a separate 1/8” stereo interface. This allows you to connect a set of speakers, an AVR, or any other audio device. In addition, the unit supports down conversion from a DVI source to either VGA / component output.
Note: This converter is not HDCP compliant. - Used to convert a high-definition HDMI input source with stereo audio to VGA or component video output
- Allows you to select either VGA or a component video output from the converter
- Compatible with a wide range of PC monitors
- Supports VGA VESA resolutions up to 1920 x 1200 or component video up to 1080p
- De-embeds audio signals to offer output on a separate 1/8" stereo interface
- Allows you to connect a set of speakers, an AVR, or other audio devices
- Embedded EDID simplifies the installation procedure by syncing with the source and provides the appropriate output based on your selection
- DVI compatible for down converting DVI to VGA or DVI to component video

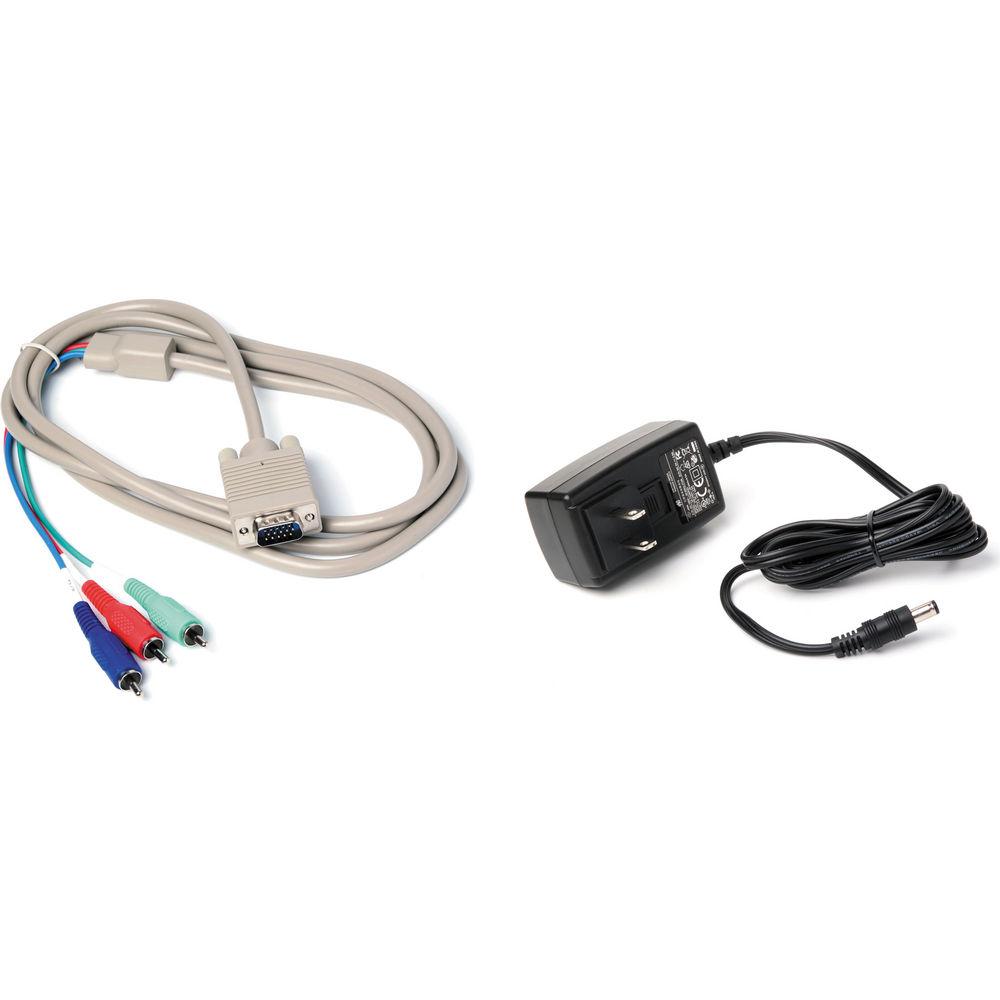

UPC: 846352003111 In the Box Atlona HDMI to VGA / Component & Stereo Audio Format Converter VGA to 3 RCA Adapter Cable 5 VDC Power Supply (110/220 VAC) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona HDMI to VGA Component & Stereo Audio Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HD420 Specs | Input | 1 X HDMI (Type A female) | | Output | 1 X VGA (HD15 female)
1 X 1/8" stereo audio (3.5 mm) | | Resolutions | Up to 1080p and 1920 X 1200 | | Compliance | EDID | | HDCP Compliant | No | | Power Supply | 5 VDC (110/220 VAC) | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Dimensions (WxDxL) | 2.99 x 1.18 x 3.62" (76 x 30 x 92 mm) | | Weight | 6 oz (172 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.2 x 4.7 x 2.5" |
