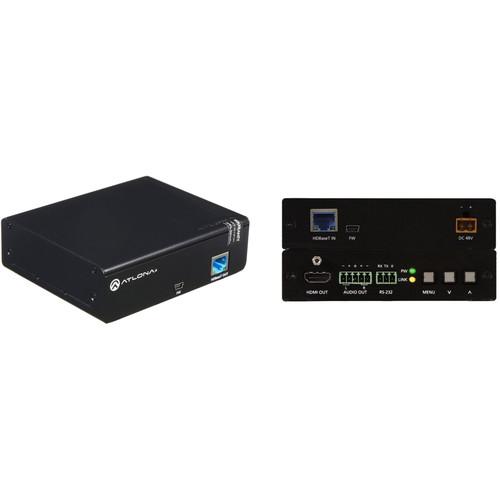

User Manual for Atlona HDMI VGA Switcher and HDBaseT PoE Transmitter HDBaseT Scaler Receiver Kit

• Product category: Video Extenders & Repeaters Atlona
• Brand: Atlona
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Atlona Video Extenders & Repeaters

Product description

• Atlona Three-Input HDMI/VGA Switcher & HDBaseT Transmitter with PoE Transmit 1080p HDMI and VGA signals over category cable up to 230' with this Three-Input HDMI/VGA Switcher & HDBaseT Transmitter from Atlona, featuring two HDMI inputs and one VGA with audio. Used in combination with an HDVS-150-RX receiver (available separately), this unit provides a compact, automated A/V system with the convenience of automatic input selection and display control. The switcher is remotely powered by the HDVS-150-RX through Power over Ethernet (PoE).

  Featuring automatic display control, the HDVS-150-TX can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-TX forces the display to power off. A power button on the front panel can be used for manual on/off control of the display. Surface mounting brackets are provided with the HDVS-150-TX for easy installation under a table or on a wall.
  3x1 HDBaseT Switcher
  • • Two HDMI inputs plus one VGA input with audio
    • Allows HDMI display devices to be used with legacy VGA sources
    ¹

    Please Note:

    Audio signals do not pass without an accompanying video signal close
  Point-to-Point Extension to AT-HDVS-150-RX Scaler Receiver
  • • Extends A/V up to 230' at 1080p or 1920 x 1200
    • Compact, automated A/V system with automatic input selection and display control
  Long-Distance HDMI Extension
  • • Transmits A/V up to 230' at 1080p or 130' at UHD 4K using Cat 6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
    ²

    Please Note:

    Allows UHD 4K transmission when used with a compatible HDBaseT receiver close
  Remotely Powered via PoE (Power over Ethernet)
  • • IEEE 802.3af PoE-powered device
    • Power for transmitter is supplied by AT-HDVS-150-RX over HDBaseT
  Automatic Input Selection Using Hot-Plug Detection
  • • Selects active input when sources are connected or if there is a change in source power status
    • Enables simplified, automatic system operation with no user intervention necessary
  Automatic Display Control (When Connected to HDVS-150-RX)
  • • Automatically changes display power state based on active or standby mode of the switcher (in conjunction with the HDVS-150-RX)
    • Control signals to display are transmitted via RS-232
    • Eliminates the need for a complex control system
  Front Panel Input Selection and On/Off Controls
  • • Overrides auto-switching when more than one active source is present
    • Simple manual operation allows presenter to maintain control of A/V system
  Field-Updatable Firmware
  • • Rear-panel USB port provides an easy means for device updates
  Front Panel Power and Input Selection Status LEDs
  • • LED indicators provide power and input selection status information
    • Easy setup and troubleshooting
  Application Examples
  • • In education environments, the HDVS-150-TX can be placed in a lectern for use with sources such as a laptop and document camera
    • In corporate environments, the switcher can be installed below a boardroom conference table to allow presenters to easily connect their laptops to the system
  UPC: 846352004774
• Atlona HDBaseT Scaler Receiver with HDMI & Analog Audio Outputs Receive 1080p HDMI and VGA signals over category cable from up to 230' with this HDBaseT Scaler Receiver from Atlona. Used in combination with an HDVS-150-TX switching transmitter (available separately), this unit provides a compact, automated A/V system with the convenience of automatic input selection, display control, and HD scaling. The HDVS-150-RX powers the HDVS-150-TX remotely through Power over Ethernet, saving time and integration costs. It can be surface-mounted behind a display or above a projector.

  The HDVS-150-RX offers image adjustment capability and automatically matches incoming signals to the display's native resolution. Integrated scaling and video processing help optimize image quality and switching performance. This receiver also features audio de-embedding and third-party RS-232 control of the scaler, switcher, and display. Featuring automatic display control, the HDVS-150-RX can trigger a display to power on automatically whenever a laptop or other device is connected to the HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-RX forces the display to power off. The HDVS-150-RX display control capability can also be triggered by an external control system.
  Audio De-Embedding
  • • Provides two-channel, analog audio signal on balanced captive screw connectors
    • Improves A/V system audio with the use of an external amplifier such as the AT-PA100-G2 (available separately)
  Long-Distance HDMI Extension
  • • Receives HDMI and VGA/audio signals up to 230' at 1080p over Cat 6a/7 and 197' at 1080p over Cat 5e/6
    • Uses easy-to-integrate category cable for reliable system installation
  HD Video Scaler with HDMI Output and Input Resolution Control
  • • Scales video signals up to 1080p at 60 Hz and 1920 x 1200
    • Selectable input resolution from 800 x 600 to 1920 x 1200 for a PC source
    • Incoming signals can be automatically scaled to the display's native resolution
  EDID Management
  • • Manages EDID communications with a source connected to the HDVS-150-TX
    • Allows integrators to set or match a PC's graphics resolution
  HDCP Management
  • • HDCP compliance can be disengaged through the on-screen menu, control software, or a control system
    • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
  RS-232 Scaler and Switcher Control
  • • Input switching (at the AT-HDVS-150-TX), image adjustments, resolution settings, and auto-set to display's native resolution can be made from a third-party control system
    • Seamless integration with larger, control system-based A/V systems
  RS-232 Display Control
  • • Facilitates on/off display control
    • Included software simplifies programming
    • Eliminates need for complex control system in small A/V system
  Power over Ethernet for AT-HDVS-150-TX
  • • Industry-standard IEEE 802.3af PoE supplied by the receiver to the AT-HDVS-150-TX transmitter over HDBaseT
    • No local AC outlet is required for powering the AT-HDVS-150-TX transmitter
  Field-Updatable Firmware
  • • Rear-panel USB port provides an easy means for device updates
  UPC: 846352004767

• Three-Input HDMI/VGA Switcher & HDBaseT Transmitter with PoE bcdsqxfedqybvqesaww
• Surface-Mounting Brackets
• Limited 10-Year Warranty

• HDBaseT Scaler Receiver with HDMI & Analog Audio Outputs

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Atlona Three-Input HDMI/VGA Switcher & HDBaseT Transmitter with PoE

  Video	4096 x 2160 24/25/30/50/60 3840 x 2160 24/25/30/50/60 2048 x 1080p 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 576p, 576i 480p, 480i
  VESA	2560 x 2048, 2560 x 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200, 1600 x 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024, 1280 x 800, 1280 x 768 1152 x 768 1024 x 768 800 x 600 640 x 480
  Color Space	YUV, RGB
  Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
  Color Depth	8-, 10-, 12-bit

  Analog In	PCM 2-channel
  HDMI In	PCM 2-channel
  HDBaseT	Out: PCM 2-channel
  Sample Rate	32, 44.1, 48, 88.2, 96, 176.4 & 192 kHz
  Bit Rate	Up to 24-bit

  Transmission Range	4K Up to 115' / 35 m over Cat 5e/6 Up to 130' / 40 m over Cat 6a/7 Up to 15' / 5 m HDMI in/out 1080p Up to 197' / 60 m over Cat 5e/6 Up to 230' / 70 m over Cat 6a/7 Up to 30' / 10 m HDMI in/out

  Bandwidth	10.2 Gb/s
  CEC	Yes
  HDCP	1.4

  Operating	32 to 122°F / 0 to 50°C
  Storage	-4 to 140°F / -20 to 60°C
  Humidity	20 to 90% non-condensing

  Power Consumption	18.7 W (when paired)
  Certification	CE, FCC
  Dimensions	1.50 x 5.00 x 4.02" / 3.8 x 12.7 x 102 cm
  Weight	5.16 lb / 2.34 kg

  Box Dimensions (LxWxH)	8.6 x 7.5 x 3.0"

• Atlona HDBaseT Scaler Receiver with HDMI & Analog Audio Outputs

  Input	1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i at 50/59.94/60 Hz 720p at 25/29/30/50/59.94/60 Hz 576p, 576i, 480p, 480i 1920 x 1200RB 1680 x 1050 1600 x 1200 1600 x 900 1440 x 900 1400 x 1050 1366 x 768 1280 x 1024 1280 x 960 1280 x 800 1280 x 768 1152 x 854 1024 x 768 800 x 600 720 x 400 640 x 480
  Output	1080p 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i 50/59.94/60 Hz 720p at 25/29/30/50/59.94/60 Hz 1920 x 1200 1680 x 1050 1680 x 1200 1400 x 1050 1366 x 768 1280 x 1024 1280 x 800 1024 x 768
  Color Space	YUV, RGB
  Chroma Subsampling	4:4:4, 4:2:2
  Color Depth	8-, 10-, 12-bit

  Analog	PCM 2-channel (de-embedded)
  HDMI Out	PCM 2-channel
  HDBaseT	In: PCM 2-channel
  Sample Rate	32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz
  Bit Rate	Up to 24-bit

  Transmission Range	Up to 197' / 60 m Over Cat 5e/6 Up to 230' / 70 m Over Cat 6a/7 Up to 30' / 10 m HDMI in/out

  Bandwidth	6.75 Gb/s
  CEC	No
  HDCP Compliant	1.4

  Operating	32 to 104°F / 0 to 40°C
  Storage	-4 to 140°F / -20 to 60°C
  Humidity	20 to 90% non-condensing

  Consumption	15 W (varies per paired transmitter)
  Supply	Input: 100-240 VAC ~ 50/60 Hz Output: 48 VDC / 0.83 A

  Device	CE, FCC
  Power Supply	CE, FCC, Level VI, RoHS, cULus, RCM, CCC

  Dimensions	1.18 x 4.80 x 4.92" / 3.0 x 12.2 x 12.5 cm
  Weight	0.67 lb / 0.31 kg

  Box Dimensions (LxWxH)	11.2 x 7.3 x 2.9"
