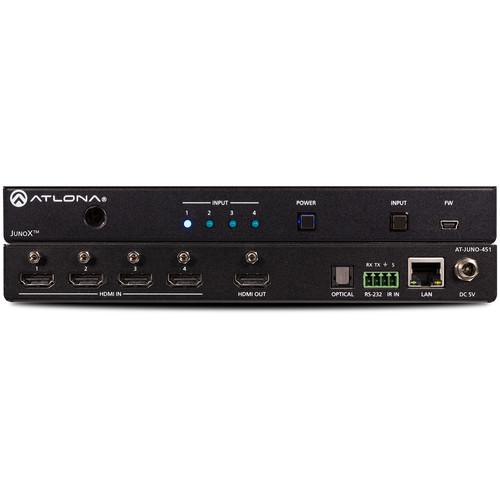

Product description Designed to facilitate the display of HDR content, the JunoX 451 HDBT 4K HDR 3 x 1 HDMI/ 1 x HDBaseT Switcher from Atlona features one HDBaseT input, three HDMI inputs, and one HDMI output. It supports up to DCI/UHD 4K video at 60 Hz with 4:4:4 sampling, and offers HDMI data rates up to 18 Gb/s. High-dynamic range (HDR) functions include HDR 10 and Dolby Vision support. The JunoX 451 HDBT is compatible with the separately available Atlona UHD-PRO3, UHD-CAT, and SW Series for HDBaseT extensions up to 10 Gb/s. Suitable for both residential and commercial applications, the JunoX 451 HDBT's features include automatic input switching, EDID management, and Ethernet, RS-232, and IR control. Input source selection is based on detection of the 5V hot plug detect (HPD) signal and active video, ensuring reliable auto-switching for all video sources, including devices that maintain the HPD line at the 5V high state but may not be delivering active video. Configure, control, and manage the JunoX 451 HDBT using the AMS (Atlona Management System) software platform. Designed for IP-controllable Atlona products, AMS reduces installation time, and enables remote monitoring and support of multiple Atlona devices over your network. The JunoX 451 HDBT switcher comes with an IR remote control, a power supply, and mounting plates. Note: For HDR and 4K60 4:4:4 content (HDMI data rates exceeding 10 Gb/s), the AT-JUNO-451-HDBT is not compatible with transmitters for the AT-HDR-EX-70-2PS, AT-HDR-EX-70C-KIT, or AT-HDR-EX-100CEA-KIT. - Key Features
-
- An HDBaseT input receives signals at distances up to 330' at 1080p with Cat 5e/6, or at 4K HDR using Cat 6/6a/7 cable
- One HDBaseT and three HDMI inputs, one HDMI output
- Compatible with DCI/UHD 4K and HDR-ready sources and displays
- Supports HDR 10 and Dolby Vision at 60 Hz
- HDMI data rates up to 18 Gb/s
- HDMI 2.0a support, HDCP 2.2 compliance, EDID management
- Reliable auto-switching based on detection of the 5V hot plug detect (HPD) signal, in addition to active video
- TCP/IP, RS-232, and IR control options
- Delivers return audio from a television via ARC to an optical digital-audio output
- A TOSLINK digital audio output provides a return-audio pathway from a television to an AV receiver or soundbar
- Manage remotely using the downloadable Atlona Management System software
UPC: 846352005993 In the Box Atlona JunoX 451 HDBT 4K HDR 3 x 1 HDMI / 1 x HDBaseT Switcher 2 x Mounting Plate 4 x Rubber Feet 4 x Screws IR Remote Control DC Power Supply (5V) IEC Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona JunoX 451 HDBT 4K HDR 3 x 1 HDMI 1 x HDBaseT Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-JUNO Specs | | | Input | HDBaseT: 1 x RJ45
HDMI: 3 x HDMI 2.0 type A | | Output | HDMI: 1 x HDMI 2.0 type A
Optical: 1 x TOSLINK | | Other | RS-232/IR: 1 x 5-pin captive screw
LAN: 1 x RJ45
5 VDC Input: 1 x 5.5 mm barrel, locking
Firmware Updates: 1 x USB Mini-B
Video Input Indicators: 5 x LED, blue | | | | Video | UHD/HD/SD:
4096 x 2160: 60/50/30/25/24
3840 x 2160: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | VESA | 2560 x 2048, 2560 x 1600, 2048 x 1536
1920 x 1200
1680 x 1050, 1600 x 1200, 1600 x 900
1440 x 900, 1400 x 1050
1366 x 768, 1360 x 768
1280 x 1024, 1280 x 800 1280 x 768
1152 x 768
1024 x 768
800 x 600 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | HDR Support | HDR10, Dolby Vision at 60 Hz | | | | Input | HDMI / HDBaseT:
PCM 2-channel
LPCM 5.1, LPCM 7.1
Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
DTS-HD Master Audio, DTS:X | | Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | Maximum Bit Rate | 24-bit | | | | Maximum Resolution / Distance | UHD 4K via HDMI In/Out: 16.4' / 5 m
1080p HDMI In/Out: 32.8' / 10 m
UHD 4K via Cat 5e: 295' / 90 m
1080p via Cat 5e: 330' / 100 m
UHD 4K via Cat 6/6a/7: 330' / 100 m
1080p via Cat 6/6a/7: 330' / 100 m | | Bandwidth | HDBaseT: 18 Gb/s | | Standards | HDMI: 2.0
USB: 2.0
HDCP: 2.2 | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity (Non-Condensing) | 20 to 90% | | | | Consumption | 6.6 W | | Idle Consumption | 5.9 W | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz
Output: 5 VDC | | | | Dimensions | 8.6 x 6 x 1" / 219 x 152 x 26 mm | | Weight | 1.81 lb / 0.82 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 15.5 x 8.6 x 2.8" |
