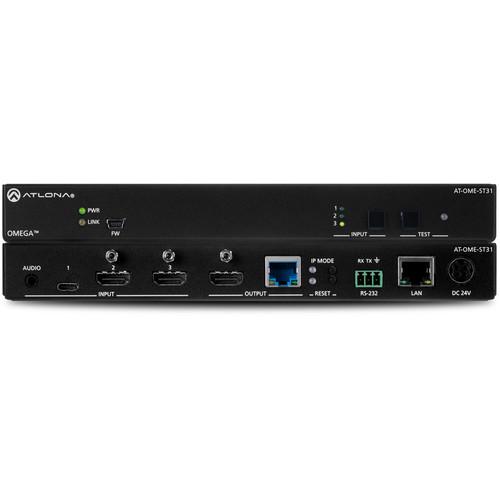

User Manual for Atlona OME-ST31 Omega 4K UHD 3-Channel HDMI USB-C Switcher and HDBaseT Transmitter Click to enlarge the picture
Contents of the user manual for the Atlona OME-ST31 Omega 4K UHD 3-Channel
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona OME-ST31 Omega 4K UHD 3-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The OME-ST31 Omega 4K/UHD 3-Channel HDMI/USB-C Switcher and HDBaseT Transmitter from Atlona is a three-input switcher with a USB Type-C input, two HDMI inputs. It offers mirrored HDMI and HDBaseT outputs and is HDCP 2.2 compliant. The USB Type-C input is ideal for AV interfacing for Mac, Chromebook, and Windows PCs, as well as smartphones and tablets. A video signal up to 4K/60 4:2:0 can be transmitted over HDBaseT with PoE at up to 330'. All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gb/s. Additionally, 4K downscaling to 1080p is available for the HDMI output when connected to an HD sink. The OME-ST31 is designed for use with Omega series receivers and switchers, select HDVS series receivers, an AT-UHD-EX-100CE-RX receiver, and other Atlona switchers with HDBaseT inputs. |
Upload User Manual
Have you got an user manual for the Atlona OME-ST31 Omega 4K UHD 3-Channel HDMI USB-C Switcher and HDBaseT Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona omega Specs | | | Inputs | 2 x 19-pin HDMI Type A, female input
1 x USB Type-C, female
1 x RJ45, LAN port
1 x RS-232, bidirectional control
1 x 3.5mm jack, audio input
1 x 4-pin locking barrel, DC power input | | Outputs | 1 x 19-pin HDMI Type-A, female output
1 x RJ45, HDBaseT output | | Buttons | IP Mode, Reset, Input, and Display | | Indicators | 1 x LED green, Power
1 x LED amber, Link
3 x LED green, USB, HDMI 1 and HDMI 2 | | | | Video Resolution | UHD/HD/SD:
4096 x 2160 @ 60/30/25/24 Hz
3840 x 2160 @ 60/30/25/24 Hz
1080p @ 60/59.9/50/30/29.97/25/24/23.98 Hz
1080i @ 60/59.94/50 Hz
720p @ 60/59.94/50 Hz
576p @ 50 Hz
576i @ 50 Hz
480p @ 60/59.96 Hz
480i @ 60 Hz
VESA:
2560
