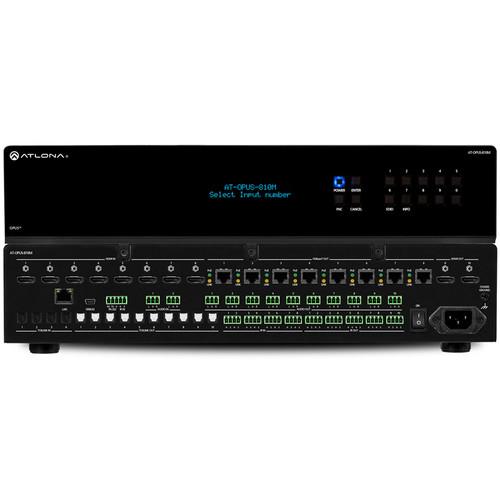

User Manual for Atlona OPUS 4K HDR 8 x 10 HDMI to HDBaseT Matrix Switcher

Click to enlarge the picture
Atlona OPUS 4K HDR 8 x 10 HDMI to HDBaseT Matrix Switcher Contents of the user manual for the Atlona OPUS 4K HDR 8 x
  • Product category: Routers & Switchers Atlona
  • Brand: Atlona
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Atlona Routers & Switchers

User manual for the Atlona OPUS 4K HDR 8 x contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Atlona product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!



Product description

The 2 RU OPUS 4K HDR 8 x 10 HDMI to HDBaseT Matrix Switcher from Atlona is designed for high dynamic range (HDR) formats. This matrix switcher is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gb/s. It enables flexible routing to eight HDBaseT outputs plus two additional HDMI outputs, and is compatible with the AT-OPUS-RX receiver or AT-JUNO-451-HDBT switcher for transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330' over Cat 6a/7 cable. Visually lossless VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 signal extension over HDBaseT with no latency. The matrix switcher is equipped with a comprehensive host of audio and control system integration features, making it ideal for a wide range of residential and commercial applications requiring multi-zone AV distribution.
    HDBaseT Outputs for Transmission of HDMI, Ethernet, Power, and Control
    • Extends HDMI up to 330' at 4K HDR using Cat 6a/7 cable
    • Bidirectional extension of RS-232, IR, and Ethernet control signals
    • Delivers 4K HDR extension to AT-OPUS-RX receivers or AT-JUNO-451-HDBT switchers with HDBaseT input
    Two HDMI Outputs
    • Includes two 4K HDR HDMI outputs
    • Provides additional flexibility to facilitate a variety of output needs and destinations
    4K/UHD Capability at 60 Hz with 4:4:4 Chroma Sampling
    • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
    • Compatible with 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz, as well as HLG (Hybrid Log-Gamma)
    • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
    HDCP 2.2 Compliant
    • Adheres to latest specification for high-bandwidth Digital Content Protection
    • Allows protected content stream to pass between authenticated devices
    Visually Lossless VESA Display Stream Compression
    • Enables HDBaseT transmission of HDMI up to 18 Gb/s using extremely light video compression
    • Innovative signal extension solution delivers very high, pristine image quality
    Power over Ethernet (PoE)
    • Industry standard IEEE 802.3af PoE is supplied over HDBaseT
    • Delivers power to the AT-OPUS-RX, as well as other compatible HDBaseT receivers
    • Allows convenient receiver installation at a display or projector without the need for local AC power
    Flexible, Independent Audio Matrix Switcher
    • Provides routing for de-embedded HDMI input audio, TOSLINK digital and analog stereo audio sources, plus return audio from televisions via the AT-OPUS-RX receiver
    • Flexible options for integrating with whole-house audio systems
    Multi-Channel Audio Compliant
    • Passes through multi-channel audio formats from the HDMI inputs
    • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
    EDID Management
    • Manages EDID communications between source, switcher, and displays; allows integrators to force a source to transmit preferred video resolution and audio format
    • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
    HDCP Management
    • Automatically reports HDCP compliance status to the source based on the sink device
    • HDCP compliance can also be disengaged through AMS or a control system
    • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems
    Integrated HDBaseT Link Status Monitoring
    • Tests integrity of the HDBaseT cable link between each output and the receiver
    • Web GUI provides real-time link status, plus detailed HDBaseT and HDMI signal information
    • Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality
    Provides HDMI Signal Regeneration for Source Devices
    • Allows HDMI 1.2 sources such as cable television set-top boxes to be used in newer systems
    • Addresses the lack of support for the HDMI 1.3 clock stretching protocol required in HDBaseT extenders
    Intuitive GUI-Based Configuration Using Integrated Web Server
    • Offers menu-based configuration of network settings, RS-232 settings, I/O routing for video and audio, EDID and HDCP management, and audio settings
    • Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
    TCP/IP, RS-232, and IR Control
    • Flexible control options for compatibility with Atlona Velocity and third-party control systems
    • Reduces integration time and costs
    • Includes a convenient handheld IR remote control
    IP to RS-232 Translation
    • Converts TCP/IP commands to RS-232 commands for output to external devices over HDBaseT
    • Enables single IP connection to control processor to control both IP and RS-232 connected devices at remote endpoints
    Comprehensive IR Control Management for Sources and Displays
    • Direct interfacing of IR from a control processor to each HDBaseT output
    • Allows remote IR control of source devices from OPUS-RX locations
    Easy to Configure and Manage with AMS (Atlona Management System)
    • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
    • Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
    Other Features
    • Device can be updated in the field via AMS or the web GUI
    • Temperature-based fans maintain low internal temperature while never allowing fan noise to rise above -20 dB SPL at 3.2'
    • Front panel button controls and LCD menu display
    • Installs easily in rack mounted systems with included 19" rack mount brackets
In the Box Atlona OPUS 4K HDR 8 x 10 HDMI to HDBaseT Matrix Switcher (2 RU)
  • IR Remote Control
  • Rack-Mounting Brackets
  • Rack-Mounting Hardware
  • Power Cable
  • Captive Screw Connectors
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Atlona OPUS 4K HDR 8 x 10 HDMI to HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Atlona AT-OPUS-810M Specs

    Inputs/Outputs 8 x 19-Pin HDMI Type-A, Female Inputs
    2 x 3-Pin Captive Screw, Audio Inputs
    8 x 2-Pin Captive Screw, IR Inputs
    4 x S/PDIF, TOSLINK Inputs
    1 x RJ45, LAN Port
    2 x 19-Pin HDMI Type-A, Female Outputs
    8 x RJ45, HDBaseT Outputs
    10 x 3-Pin Captive Screw, Audio Outputs
    1 x Mini-USB, Debug Firmware Port
    1 x 3-Pin Captive Screw, RS-232
    1 x 2-Pin Captive Screw, Bidirectional IR
    10 x 2-Pin Captive Screw, IR Outputs
    10 x S/PDIF, TOSLINK Outputs
    Video Resolution UHD/HD/SD:
    4096 x 2160 24/25/30/50/60 Hz
    3840 x 2160 24/25/30/50/60 Hz
    2048 x 1080p
    1080p 23.98/24/25/29.97/30/50/59.94/60 Hz
    1080i 50/59.94/60 Hz
    720p 50/59.94/60 Hz
    576p
    576i
    480p
    480i

    VESA:
    2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600
    Color Space YUV, RGB
    Chroma Subsampling 4:4:4, 4:2:2, and 4:2:0
    Color Depth 8- / 10- / 12-bit
    HDR HDR10 & HLG @ 60 Hz and Dolby Vision @ 30 Hz
    Audio HDMI Input/Output:
    PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X

    TOSLINK:
    PCM 2Ch, Dolby Digital, DTS 5.1
    Audio Sample Rate 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
    Audio Bit Rate 24-bit maximum
    Cable Distance HDMI at 4K/UHD: 16.4' / 5 m
    HDMI at 1080p: 32.8' / 10 m
    Cat 5e/6 at 4K/UHD: 295' / 90 m
    Cat 5e/6 at 1080p: 328' / 100 m
    Cat 6a/7 at 4K/UHD: 328' / 100 m
    Cat 6a/7 at 1080p: 328' / 100 m
    Signal Bandwidth: 18 Gb/s
    HDMI: 2.0
    CEC: On Output, by Trigger
    HDCP: Up to 2.2
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -40 to 158°F / -40 to 70°C
    Humidity 20 to 90% RH
    Power Consumption Operating: 160 W
    Idle: 115 W
    Internal Power Supply 100 to 240 VAC, 50/60 Hz
    Certifications Unit: CE, FCC
    Power Supply: CE, FCC, UL, TUV, RoHS
    Rack Size 2 RU
    Dimensions 3.5 x 17.2 x 11.8" / 8.8 x 43.8 x 30.0 cm without Feet
    3.9 x 17.2 x 11.8" / 9.9 x 4.4 x 30.0 cm with Feet
    Weight 11.9 lb / 5.4 kg
