User Manual for Atlona PTZ Camera for HDVS-300 Soft Codec Conferencing System Click to enlarge the picture
Contents of the user manual for the Atlona PTZ Camera for HDVS-300 Soft
- Product category: PTZ Cameras Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona PTZ Cameras
 |
User manual for the Atlona PTZ Camera for HDVS-300 Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|

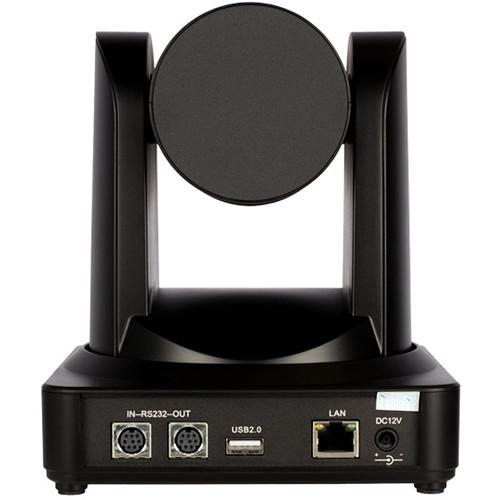

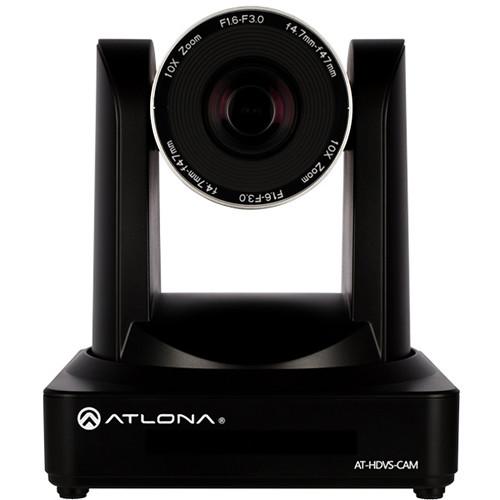

Product description Provided by third party: The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use in soft codec conferencing applications. It features a USB interface for video and camera control. The HDVS-CAM delivers high performance, professional-quality imaging with video resolutions, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms.

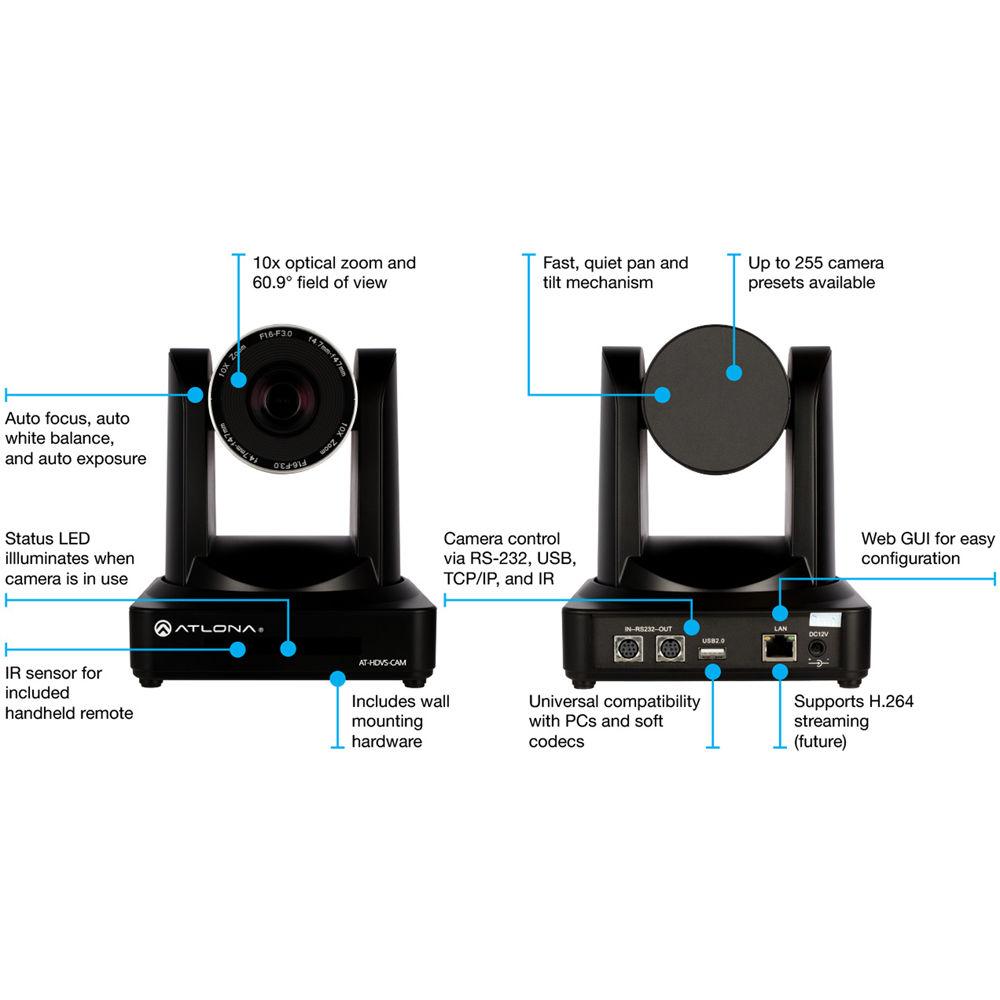

- Key Features
-
- Designed for soft codec applications
- USB 2.0 interface for video and camera control
- Compatible with a wide range of soft codecs and unified communications (UC) platforms
- High performance imaging, fine detail, and color rendering
- Fast and accurate auto focus, plus auto white balance and auto exposure modes
- Fast and quiet pan and tilt mechanism
UPC: 846352005351 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona PTZ Camera for HDVS-300 Soft Codec Conferencing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-CAM Specs | | | Device Type | Conference camera | | Camera Mount Type | Wall mount | | Connectivity Technology | Wired | | Width | 5.9 in | | Depth | 5.9 in | | Height | 6.6 in | | Weight | 3.09 lbs | | | | Type | Color - pan / tilt / zoom | | Max Digital Video Resolution | 1920 x 1080 | | Video Modes | 720p, 1080/30p | | Minimum Illumination | 0.5 lux F1.8 - AGC on | | Video Capture | 1920 x 1080 @ 30 fps | | Features | Sharpness control, auto exposure control, color control, saturation control, brightness control, contrast control, 255 preset positions, WebEx compatible, auto gain control, auto white balance, Pelco Protocol, unified communications platform compatible, Skype for Business compatible, Microsoft Teams compatible, Microsoft Lync compatible, Google Hangouts compatible, Zoom compatible, RingCentral Meetings compatible, Slack compatible | | | | Optical Zoom | 10 x | | Focal Length | 4.7 mm - 47 mm | | Lens Iris | F/1.6-3.0 | | Focus Adjustment | Automatic, manual | | Horizontal Field of View (degree) | 6.43 - 60.9 | | | | Range (degree) | -170 to +170 | | Speed (degree/sec) | Up to 180 | | | | Range (degree) | -30 to +90 | | Speed (degree/sec) | Up to 80 | | | | Network Protocols | HTTP, TCP/IP | | Control Interface | RS-232, VISCA | | | | Ports | LAN - RJ-45
Serial RS-232 input
USB 2.0 - 4 pin USB Type A
Serial RS-232 output | | | | Included Accessories | Remote control, wall mount bracket, lens cap, screw kit | | Cables Included | 1 x USB cable - external
1 x serial cable - external | | Compliant Standards | CCC, FCC Part 15, cULus | | | | Power Requirements | DC 12 V - 1 A | | Power Device | Power adapter - external AC 120/230 V (50/60 Hz) 12 Watt | | Battery | AAA type x 2 | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 14
