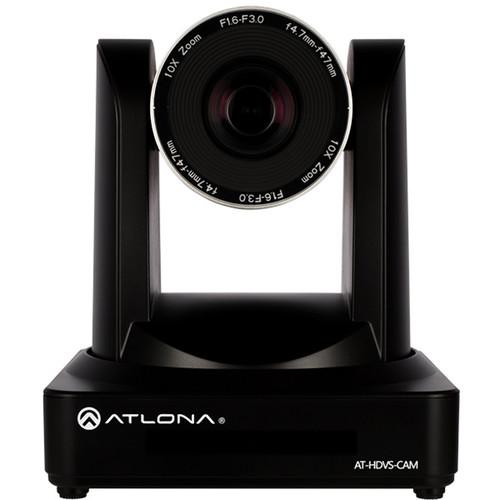

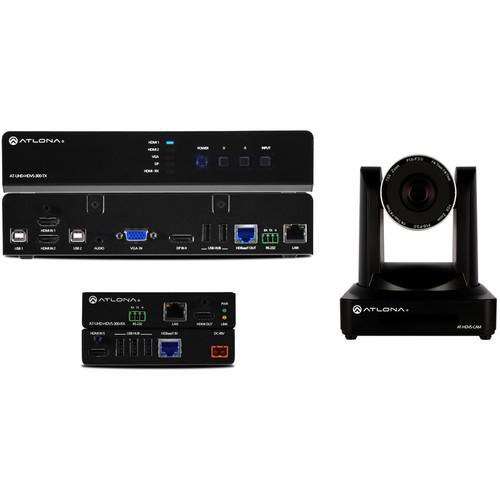

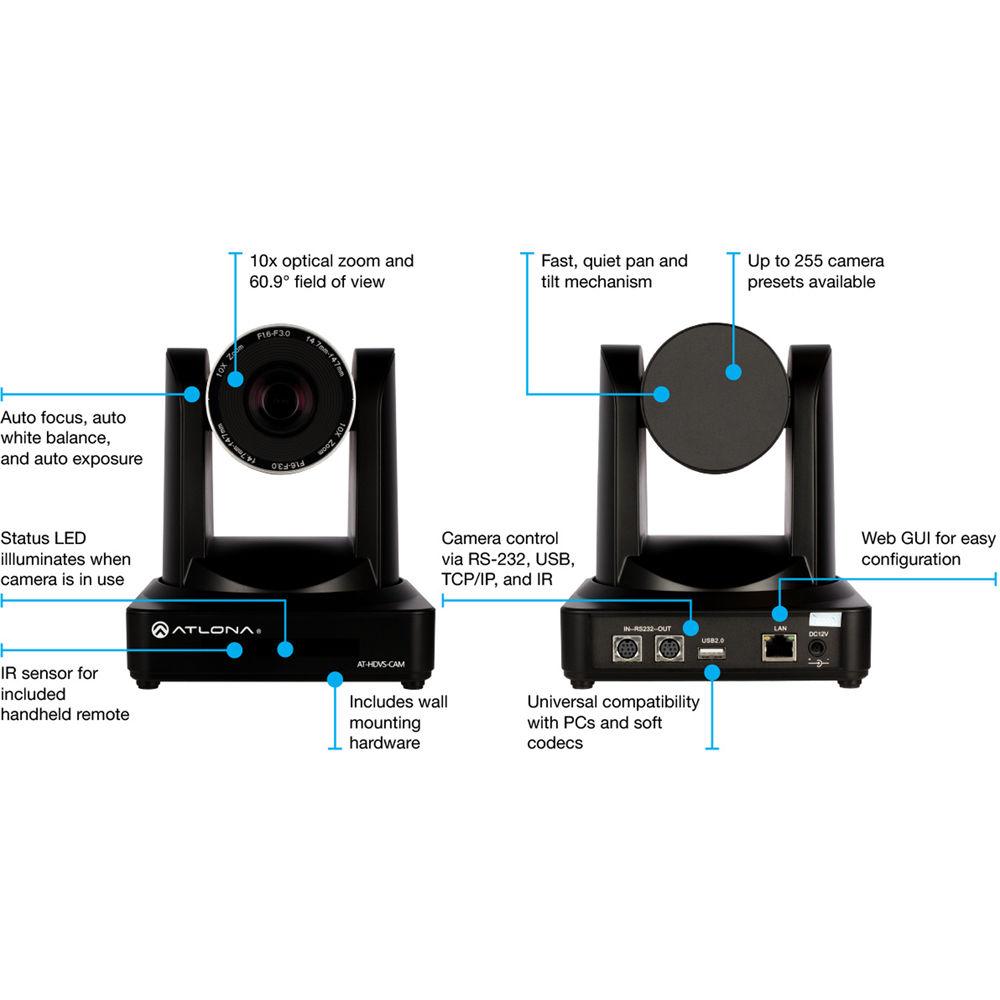

Product description Provided by third party: The Atlona AT-UHD-HDVS-300-C-KIT provides a complete integration solution for huddle spaces and meeting rooms using PC-based conferencing codecs such as Skype for Business, WebEx, and GoToMeeting. It includes AV switching, USB and HDMI extension, and integrated system control, plus the AT-HDVS-CAM, an enterprise-grade PTZ camera. The switcher and extender system offers five video inputs for HDMI, DisplayPort, and analog video signals. To simplify conference room device management, the system provides two USB type B connectors for host computers. Two built-in USB hubs, one on the transmitter and one on the receiver, allow for numerous Human Interface Devices (HID), as well as USB microphones and speakerphones plus the HDVS-CAM. For the HDMI inputs, the HDVS-300-C-KIT is compatible with sources and displays up to 4K/UHD @ 60 Hz with 4:2:0 color subsampling. Audio, video, data, control, USB, and Ethernet transmission is carried over a single, Ethernet-enabled HDBaseT link up to 330 feet (100 meters).
- Key Features
-
- Complete soft codec conferencing integration solution with enterprise-grade PTZ camera
- Integrates PCs and touch displays as well as USB mics and speakerphones
- 5
|
Upload User Manual
Have you got an user manual for the Atlona Soft Codec Conferencing System with PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-CAM Specs | | | Device Type | Video conferencing kit | | Dimensions & Weight Details | Transmitter - Width 8.8 in Depth 10.3 in Height 1.7 in Weight 2.6 lbs
Receiver - Width 4.3 in Depth 5 in Height 1 in Weight 617.3 lbs
Camera - Width 5.9 in Depth 5.9 in Height 6.6 in Weight 3.1 lbs | | Built-In Devices | FHD camera | | | | Monitor Features | HID Compliant | | | | Type | Digital video camera (color) - external | | Digital Video Capture Resolution | 1280 x 720, 640 x 480, 320 x 240, 352 x 288, 176 x 144, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 1024 x 576, 320 x 180, 960 x 540 | | | | Type | External | | Supported Display Graphics | HDTV (1920x1080), 1280x720, 3840x2160, 4096x2160, 2048x1080 | | Digital Video Standard | High-Definition Multimedia Interface (HDMI), DisplayPort | | | | Type | Remote control | | Connectivity Technology | Wireless | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Network / Transport Protocol | TCP/IP, DHCP | | Features | Manageable, wall mountable, input selection buttons, ceiling mountable, HDBaseT technology, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, Pan, Tilt, Zoom (PTZ) control signals transmission, EDID Management, LPCM 5.1 support, Dolby Atmos support, DTS:X support, volume control, surface mountable, Dolby Digital support, automatic input selection, automatic display control | | Compliant Standards | USB 2.0, HDCP 1.4, Pelco-D, Pelco-P | | Capacity | Camera presets: 255 | | | | Interfaces | 3 x audio / video - HDMI input - 19 pin HDMI Type A
1 x audio - input - mini-phone 3.5 mm
1 x audio / video - DisplayPort input - 20 pin DisplayPort
2 x network - RJ-45
2 x USB - 4 pin USB Type B
1 x display / video - VGA input - 15 pin HD D-Sub (HD-15)
5 x USB - 4 pin USB Type A
1 x HDBaseT - output - RJ-45
2 x serial - RS-232 - 3 pin terminal block
1 x audio / video - HDMI output - 19 pin HDMI Type A
1 x HDBaseT - input - RJ-45 | | | | Cables Included | 1 x USB cable | | Mounting Kit | Included | | Compliant Standards | CCC, FCC, RoHS, cULus, CEC, RCM, HDCP 1.4 | | | | Power Device | Power supply - external | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 23 Watt | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
