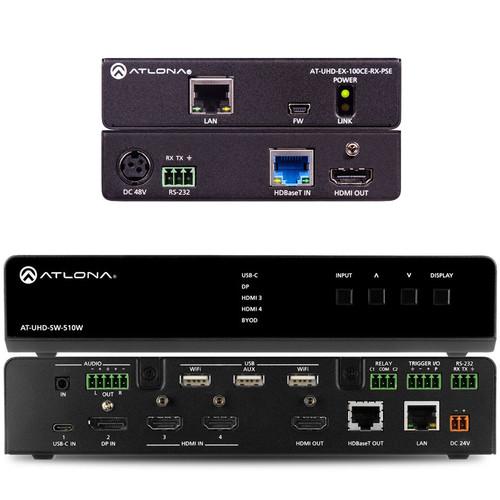

User Manual for Atlona SW-510W 4K UHD Universal Switcher and HDBaseT Receiver Kit Click to enlarge the picture
Contents of the user manual for the Atlona SW-510W 4K UHD Universal Switcher
- Product category: Routers & Switchers Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Routers & Switchers
|
User manual for the Atlona SW-510W 4K UHD Universal Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description The SW-510W 4K/UHD Universal Switcher and HDBaseT Receiver Kit from Atlona includes the AT-UHD-SW-510W 4K/UHD 5-Input Universal Switcher and the AT-UHD-EX-100CE-RX-PSE 4K/UHD HDMI over HDBaseT Receiver. The 5x2 multi-format switcher has wireless presentation capability and features HDMI, DisplayPort, and USB-C inputs, as well as wireless connectivity for mobile devices. The receiver connects to the switcher via an HDBaseT output for passing 4K signals to a display. It supports AV signals up to 328' over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. - 4K/UHD 5-Input Universal Switcher with Wireless Presentation Link The 4K/UHD 5-Input Universal Switcher with Wireless Presentation Link from Atlona is a 5x1 multi-format switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, as well as wireless connectivity for mobile devices. This HDCP 2.2 compliant switcher features an HDMI output and a mirrored HDBaseT output that can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections.
Equipped with a USB-C port, the switcher can be used with Mac, Chromebook, and Windows computers. All inputs and the local HDMI output are compatible with video signals up to 4K/UHD at 60 Hz with 4:4:4 chroma sampling, as well as data rates up to 18 Gb/s. With simultaneous 18 Gb/s HDMI and 10 Gb/s HDBaseT outputs, the switcher is suitable for presentation scenarios such as primary and confidence displays in a corporate auditorium or lecture hall. The HDBaseT output extends video, audio, control, and Ethernet up to 328'. - Two HDMI, one DisplayPort, one USB-C input, and a dedicated wireless AV input
- Provides Wi-Fi connectivity for an iOS, Android, Mac, Chromebook, or Windows-based device
- Includes dual IEEE 802.11ac Wi-Fi access points - secondary access point required for Miracast (Wi-Fi Direct)
- Integrated access point can be segregated from the facility network for security reasons
- Allows screen mirroring without the need for a separate app
- Supports wireless video up to 1920 x 1080 at 30 Hz (4:2:0) (up to 1920 x 1080 at 60 Hz with Miracast)
- Supports Miracast over Infrastructure for use of facility Wi-Fi or Ethernet network
- Prevents unauthorized access (room hijacking) or content sharing with user-defined or randomly generated security authentication codes
- Ensures presentation content is not received by SW510W units in adjacent rooms
- Automatically changes display power state, and switches between inputs based on device connection or disconnection from the switcher
- Works for both wired and wireless source devices
- Enables effortless, automated system operation without the need for an external control system
- USB-C charging for laptops, tablets, and smartphones
- Simple one-cable connection for AV and charging
- Compatible with 4K HDR10 and Dolby Vision 60 Hz
- HDBaseT output transmits AV, control, and Ethernet up to 330' at 1920 x 1080 with CAT5e/6 or 4K/UHD using CAT6a/7 cable
- Mirrored 18 Gb/s HDMI and 10 Gb/s HDBaseT outputs provide flexible options for AV system designs and applications
- Allows protected content stream to pass between devices
- HDCP 2.2 supported only for wired AV connections
UPC: 846352005146 - 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328') The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.
- 4K/UHD Capability
- • Compatible with Ultra High Definition sources and displays
• Full support of 4K/UHD streaming services and playback devices - HDCP 2.2 Compliant
- • Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices - PSE - Power Sourcing Equipment
- • Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
• Eliminates the need for the receiver to be powered remotely or by a power-injection device - AV, Ethernet, Power, and Control over HDBaseT
- • Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display 1 Please Note: Note: Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX-PSE receiver when used with the UHD-PRO3 Series matrix switchers. close - Extended Distance HDMI Extension
- • Receives HDMI signals up to 328' @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation - Extends RS-232, CEC, and Ethernet Control Signals
- • Control signals travel over HDBaseT link to device for maximum control system flexibility
• Simplifies integration of source, control system, and display 2 Please Note: Note: The AT-UHD-EX-100CE-RX-PSE does not include I/O ports for IR control signals extended over HDBaseT. If IR over HDBaseT is required, please refer to the AT-UHD-EX-100CE-RX. close - Rear Panel I/O Connectors
- • Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter - Multi-Channel Audio Compliant
- • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
• Allows any multi-channel audio stream to be used within a professional audio system - Field Updatable Firmware
- • Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment - Front Panel Power and Link Status LEDs
- • LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting - Low-Profile 1" High Quarter-Rack Enclosure Width
- • Easy installation into confined spaces behind displays and above projectors
• Keeps devices out of sight when placed in public spaces UPC: 846352004910 In the Box Bundle Items 4K/UHD 5-Input Universal Switcher with Wireless Presentation Link ayefdbqqtd 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328') Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona SW-510W 4K UHD Universal Switcher and HDBaseT Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4K/UHD 5-Input Universal Switcher with Wireless Presentation Link
| | | Resolutions | UHD/HD/SD:
4096 x 2160 at 60/30/25/24 Hz, 3840 x 2160 at 60/30/25/24 Hz, 1080p at 60/59.9/50/30/29.97/25/24/23.98 Hz, 1080i at 60/59.94/50 Hz, 720p at 60/59.94/50 Hz, 576p at 50 Hz, 576i at 50 Hz, 480p at 60/59.96 Hz, 480i at 60 Hz
VESA:
2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1366 x 768, 1360 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480
HDMI output supports 4K/UHD at 50/60 Hz with 4:4:4 chroma sampling
HDBaseT output supports 4K/UHD at 50/60 Hz with 4:2:0 chroma sub-sampling | | USB | USB-C: Up to 4K/UHD at 60 Hz for devices supporting USB-C alternate mode video output | | Wireless Capability | Up to 1920 x 1080 at 30 Hz 4:2:0 (up to 1920 x 1080 at 60 Hz with Miracast), dependent on wireless signal quality | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-/10-/12-bit | | HDR | HDR10 and Dolby Vision at 60 Hz | | | | Formats | Pass-Through Formats: PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X | | Analog Input | Unbalanced 2-channel, 3.5 mm | | Analog Output | Balanced / unbalanced 2-channel, 5-pin captive screw | | Sample Rate | 32/44.1/48/88.2/96/176.4/192 kHz | | Bit Rate | 24-bit (maximum) | | Distance | HDMI IN/OUT:
4K/UHD: 15' (5 m)
1920 x 1080: 30' (10 m)
CAT5e/6:
4K/UHD: 230' (70 m)
1920 x 1080: 330' (100 m)
CAT6a/7:
4K/UHD: 330' (100 m)
1920 x 1080: 330' (100 m) | | | | Bandwidth | 18 Gb/s (For HDMI 2.0 output, HDBaseT output limited to 10 Gb/s) | | HDCP/CEC Support | CEC Support: Yes HDCP: 2.2 (wired device connections, only) | | | | Port | USB Type-C: USB-C for AV input (Alternate Mode), USB 2.0 Type-A for Wi-Fi antenna modules (3 ports) | | Power | USB-C Power: Up to 60 W / 3 A at 20 V | | Charging Capability | USB-C Device Charging Capability:
Up to 20 V, 3 A
Output: 60 W at 20 V, 36 W at 12 V, 15 W at 5 V | | | | Ethernet Ports | RJ45 | | Protocols | DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, Telnet, SSH, TCP/IP, UDP | | Ethernet Speed | 10/100/1000 Mb/s | | Addressing | DHCP, static | | Wi-Fi | IEEE 802.11n/ac 2.5 GHz / 5 GHz | | Wi-Fi Protocols | WEP, WPA, PSK, WPA2 PSK, WPA Enterprise, WPA2 Enterprise | | Antenna | Two included | | | | RS-232 | Bidirectional, 3-pin captive screw | | Relay Mode | 3-pin captive screw, normally open (NO), with adjustable toggle and pulse modes
Electrical rating: 48 V at 1 A | | Trigger Connectivity | 4-pin captive screw
Electrical Rating: 30 V at 1 A (maximum) | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90%, non-condensing (RH) | | Certification | CE, FCC, UL | | Power Consumption | Full Load: 121 W
35 to 40 W (Idle) | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 5 VDC | | Dimensions | With Feet: 1.8 x 8.5 x 10.2" (4.8 x 21.5 x 25.9 cm)
Without Feet: 1.7 x 8.5 x 10" (4.4 x 21.5 x 25.4 cm) | | Weight | 3.7 lb (1.7 kg) | | | | Box Dimensions (LxWxH) | 17.0 x 12.55 x 4.05" | - 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328')
| Video Resolution | 4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60Hz
720p @ 50/59.94/60 Hz
576p, 576i, 480p, 480i Note: Support for 4096 x 2160 @ 50/60Hz and 3840 x 2160 @ 50/60Hz at chroma subsampling 4:2:0 8-bit only | | VESA | 2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YCbCr, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-bit, 10-bit, 12-bit | | Analog Audio Input | Formats:
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | | Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Bit Rate | Up to 24-bit | | Distance | Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m) | | Signal | Bandwidth: 10.2 Gbps
CEC: Pass-through
HDCP: Supports up to 2.2 | | Certification | Unit: CE, FCC
Power Supply: CE, FCC, RoHS, cULus, RCM, CCC | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing | | Power | Consumption: 15.2 W (When paired with TX)
Supply Input: 100~240 VAC, 50/60 Hz
Supply Output: 48 VDC /0.83 A | | Dimensions (H x W x D) | Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm)
With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 11.15 x 7.4 x 3.0" |
