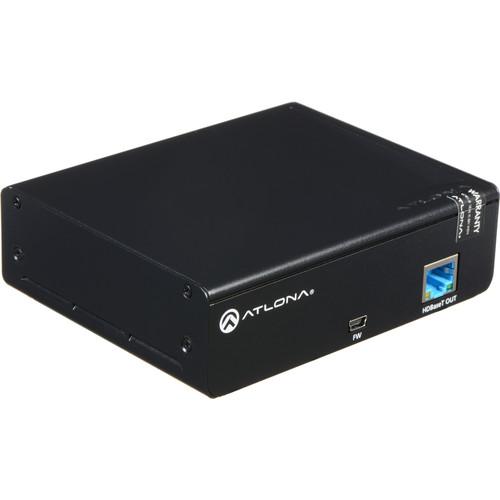

User Manual for Atlona Three-Input HDMI VGA Switcher & HDBaseT Transmitter with PoE Click to enlarge the picture
Contents of the user manual for the Atlona Three-Input HDMI VGA Switcher &
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona Three-Input HDMI VGA Switcher & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Transmit 1080p HDMI and VGA signals over category cable up to 230' with this Three-Input HDMI/VGA Switcher & HDBaseT Transmitter from Atlona, featuring two HDMI inputs and one VGA with audio. Used in combination with an HDVS-150-RX receiver (available separately), this unit provides a compact, automated A/V system with the convenience of automatic input selection and display control. The switcher is remotely powered by the HDVS-150-RX through Power over Ethernet (PoE).
Featuring automatic display control, the HDVS-150-TX can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-TX forces the display to power off. A power button on the front panel can be used for manual on/off control of the display. Surface mounting brackets are provided with the HDVS-150-TX for easy installation under a table or on a wall. - 3x1 HDBaseT Switcher
-
- Two HDMI inputs plus one VGA input with audio
- Allows HDMI display devices to be used with legacy VGA sources
1 Please Note: Audio signals do not pass without an accompanying video signal close - Point-to-Point Extension to AT-HDVS-150-RX Scaler Receiver
-
- Extends A/V up to 230' at 1080p or 1920 x 1200
- Compact, automated A/V system with automatic input selection and display control
- Long-Distance HDMI Extension
-
- Transmits A/V up to 230' at 1080p or 130' at UHD 4K using Cat 6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
2 Please Note: Allows UHD 4K transmission when used with a compatible HDBaseT receiver close - Remotely Powered via PoE (Power over Ethernet)
-
- IEEE 802.3af PoE-powered device
- Power for transmitter is supplied by AT-HDVS-150-RX over HDBaseT
- Automatic Input Selection Using Hot-Plug Detection
-
- Selects active input when sources are connected or if there is a change in source power status
- Enables simplified, automatic system operation with no user intervention necessary
- Automatic Display Control (When Connected to HDVS-150-RX)
-
- Automatically changes display power state based on active or standby mode of the switcher (in conjunction with the HDVS-150-RX)
- Control signals to display are transmitted via RS-232
- Eliminates the need for a complex control system
- Front Panel Input Selection and On/Off Controls
-
- Overrides auto-switching when more than one active source is present
- Simple manual operation allows presenter to maintain control of A/V system
- Field-Updatable Firmware
-
- Rear-panel USB port provides an easy means for device updates
- Front Panel Power and Input Selection Status LEDs
-
- LED indicators provide power and input selection status information
- Easy setup and troubleshooting
- Application Examples
-
- In education environments, the HDVS-150-TX can be placed in a lectern for use with sources such as a laptop and document camera
- In corporate environments, the switcher can be installed below a boardroom conference table to allow presenters to easily connect their laptops to the system
UPC: 846352004774 In the Box Atlona Three-Input HDMI/VGA Switcher & HDBaseT Transmitter with PoE Surface-Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona Three-Input HDMI VGA Switcher & HDBaseT Transmitter with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-150-TX Specs | | | Video | 4096 x 2160 24/25/30/50/60
3840 x 2160 24/25/30/50/60
2048 x 1080p
1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080i 50/59.94/60
1280 x 720p 50/59.94/60
576p, 576i
480p, 480i | | VESA | 2560 x 2048, 2560 x 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200, 1600 x 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024, 1280 x 800, 1280 x 768
1152 x 768
1024 x 768
800 x 600
640 x 480 | | Color Space | YUV, RGB | | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | | Color Depth | 8-, 10-, 12-bit | | | | Analog In | PCM 2-channel | | HDMI In | PCM 2-channel | | HDBaseT | Out: PCM 2-channel | | Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4 & 192 kHz | | Bit Rate | Up to 24-bit | | | | Transmission Range | 4K
Up to 115' / 35 m over Cat 5e/6
Up to 130' / 40 m over Cat 6a/7
Up to 15' / 5 m HDMI in/out
1080p
Up to 197' / 60 m over Cat 5e/6
Up to 230' / 70 m over Cat 6a/7
Up to 30' / 10 m HDMI in/out | | | | Bandwidth | 10.2 Gb/s | | CEC | Yes | | HDCP | 1.4 | | | | Operating | 32 to 122°F / 0 to 50°C | | Storage | -4 to 140°F / -20 to 60°C | | Humidity | 20 to 90% non-condensing | | | | Power Consumption | 18.7 W (when paired) | | Certification | CE, FCC | | Dimensions | 1.50 x 5.00 x 4.02" / 3.8 x 12.7 x 102 cm | | Weight | 5.16 lb / 2.34 kg | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.6 x 7.5 x 3.0" |
