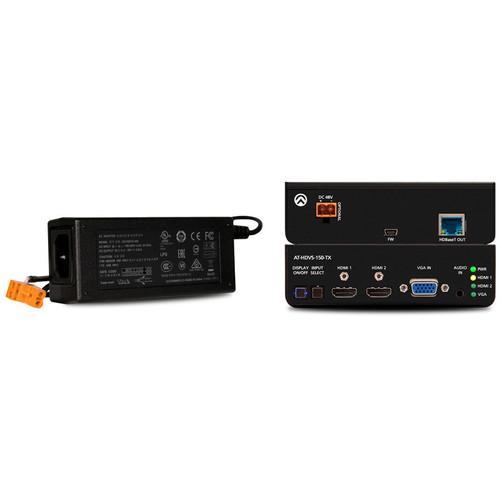

Product description Provided by third party: The Atlona AT-HDVS-150-TX-PSK is a 3 x 1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 1080p, plus embedded audio can be transmitted up to 230 feet (70 meters), and up to 130 feet (40 meters) for 4K/UHD video @ 60 Hz with 4:2:0 chroma subsampling. The HDVS-150-TX-PSK is identical to the AT-HDVS-150-TX, with the addition of local powering capability and an external power supply.
- Key Features
-
- Rear panel USB port provides an easy means for device updates
- Ensures long-term system return on investment
- LED indicators provide power and input selection status information
- Provides easy setup and troubleshooting
- Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver
- Selects active input when sources are connected or if there is a change in source power status
- Enables simplified, automatic system operation with no user intervention necessary
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona Three-Input HDMI VGA to HDBaseT Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-150-TX-PSK Specs | | | Device Type | Video/audio extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Max Resolution | 4096 x 2160 | | Max Transfer Distance | 230 ft | | Status Indicators | Port status, power | | Features | HDCP compliant, 4K resolution support, HDBaseT technology | | Compliant Standards | HDCP 1.4 | | | | Interfaces | 2 x HDMI (input) - 19 pin HDMI Type A
1 x VGA (input) - HD-15
1 x mini-USB
1 x audio (input) - mini jack
1 x HDBaseT (output) - RJ-45 | | | | Compliant Standards | FCC, CEC | | | | Power Over Ethernet (PoE) | PoE | | Power Consumption Operational | 18.7 Watt | | | | Width | 5 in | | Depth | 4 in | | Height | 1.5 in | | Weight | 5.16 lbs | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
