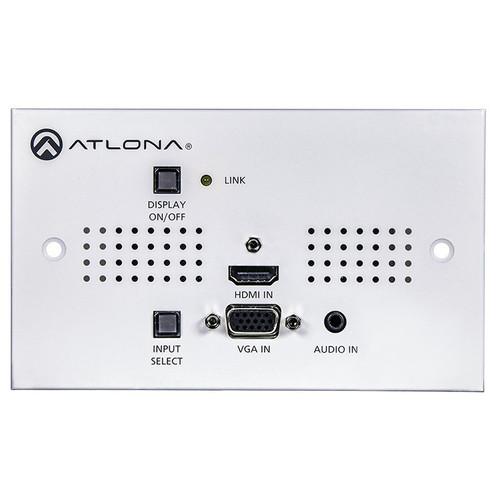

Product description Provided by third party: The Atlona AT-HDVS-150-TX-WP features an HDMI input plus VGA input with 3.5mm audio connector and a two-gang, US two-gang wall plate. An optional face plate without buttons is also available (AT-HDVS-TX-WP-NB). Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-150-TX-WP combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60 Hz with embedded audio, VGA input signals up to 1920 x 1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX fits inside any 40 mm deep two-gang electrical box or mud ring and is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
The Atlona AT-HDVS-150-TX-WP switcher expands the input capabilities of the AT-UHD-CLSO-824. Each remote switcher provides input access for up to two devices with controls for input selection and can control the power state of a display or projector when used with a third party control system. The HDVS series is designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integrator benefits.
- Key Features
-
- US, 2-gang wall plate
- 2 x 1 HDBaseT switcher
- Long distance HDMI extension
- Auto-switching
- Front panel input select button
- Auto display control
- Front panel Display On/Off control
- Two-input wall plate switcher for HDMI and VGA inputs with HDBaseT output
- The Atlona AT-HDVS-150-TX-WP features an HDMI input plus VGA input with 3.5mm audio connector and a two-gang, US two-gang wall plate. An optional face plate without buttons is also available (AT-HDVS-TX-WP-NB). Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-150-TX-WP combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60 Hz with embedded audio, VGA input signals up to 1920 x 1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX fits inside any 40 mm deep two-gang electrical box or mud ring and is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
- Remote input extension
- The Atlona AT-HDVS-150-TX-WP switcher expands the input capabilities of the AT-UHD-CLSO-824. Each remote switcher provides input access for up to two devices with controls for input selection and can control the power state of a display or projector when used with a third party control system. The HDVS series is designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integrator benefits.
UPC: 846352004880 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona Two-Input HDMI VGA to HDBaseT UK Wall Plate Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-HDVS-150-TX-WP-UK Specs | | | Device Type | Video/audio extender | | Form Factor | In-wall mountable | | Localization | United Kingdom | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI, VGA | | Data Transfer Rate | 10.2 Gbps | | Max Resolution | 4096 x 2160 @ 60 Hz | | Max Transfer Distance | 230 ft | | Status Indicators | Link/activity | | Features | 4K resolution support, HDBaseT technology, CEC passthrough | | Compliant Standards | HDCP 1.4 | | | | Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A
1 x audio (input) - mini jack
1 x VGA (input) - HD-15
1 x HDBaseT (PoE) - RJ-45 | | | | Included Accessories | Mounting screws | | Mounting Kit | Included | | Compliant Standards | FCC | | | | Power Over Ethernet (PoE) | PoE | | Power Consumption Operational | 18.7 Watt | | | | Depth | 1.6 in | | Weight | 13.05 oz | | | | Service & Support | Limited warranty - 10 years | | | | Min Operating Temperature | 32
