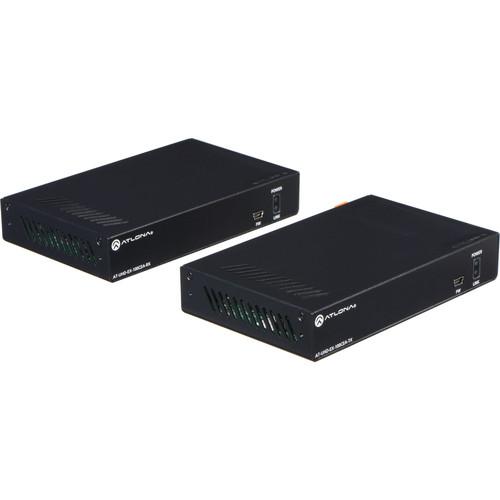

User Manual for Atlona UHD 4K HDMI Extender over 100M HDBaseT TX RX with Ethernet, Control and PoE, and Return Optical Audio Click to enlarge the picture
Contents of the user manual for the Atlona UHD 4K HDMI Extender over
- Product category: Video Extenders & Repeaters Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona Video Extenders & Repeaters
|
User manual for the Atlona UHD 4K HDMI Extender over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Provided by third party: The Premium Extender for Residential Systems The AT-UHD-EX-100CEA-KIT is a premium HDBaseT extender pair for residential systems that require audio from the TV to be amplified by an AVR near the set top box located at some distance from the TV. Return audio may be any audio signal including Dolby or DTS up to 5.1 (based on limitations of optical audio standard). The kit utilizes HDBaseT technology specifically designed to support audio extension based on HDBaseT 2.0 compared with some other solutions which use HDBaseT control channels to transmit return audio which may cause latency or quality issues. The AT-UHD-EX-100CEA-KIT is ideal for use in residential installations with AVRs and STBs located in a separate area from the TV at longer distances than HDMI cables can support. The receiver to transmitter audio pathway supports digital audio from: - Off-air tuners in many TVs
- Game systems located in the same room as TV
- Smart TVs with internal apps such as Amazon Prime Video, Hulu and Netflix
4K/UHD HDMI Over 100M HDBaseT TX/RX with Ethernet, Control and PoE and Return Optical Audio The Atlona AT-UHD-EX-100CEA-KIT is an HDBaseT™ transmitter/receiver kit for HDMI transmission up to 328 feet (100 meters) over category cable with Ethernet pass through, RS-232 and IR control, Power over Ethernet, and optical audio from receiver to transmitter. This extender kit transmits video signals up to 4K/UHD @ 60Hz, 8-bit color, 4:2:0 chroma subsampling with embedded multi-channel audio and remote 48V power for the receiver. A digital audio pathway returning back across the HDBaseT link from a smart TV to an AVR routes multi-channel audio using TOSLINK optical connectors. Additionally, the kit extends Ethernet, RS-232, and 12 volt-based IR control commands. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature one-third rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management. Configured and Managed by AMS The AT-UHD-EX-100CEA-KIT also supports the Atlona Management System (AMS), a powerful network software platform that integrates product configuration, management and updating. Specially designed for IP-controllable Atlona Products, the Atlona Management System reduces installation time and enables remote monitoring and support.
Features 4K/UHD capability - Compatible with Ultra High Definition sources and displays
- Full support of 4K/UHD streaming services and playback devices
HDCP 2.2 compliant - Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between devices
Receiver to transmitter digital audio pathway - Routes multi-channel audio from TV to AVR on same extender and cable as video from set top box to TV
- Eliminates extra cable needed to bring high quality audio from embedded TV apps
Ethernet, RS-232, and Bi-Directional IR - No additional control cables required
- Saves time and money during installation
Remote -powered receiver - Power for receiver is supplied by transmitter over HDBaseT; meets HDBaseT certification requirements
- Saves time and integration costs; ensures interoperability and safety requirements
Extended distance HDMI extension - Transmits HDMI signals up to 328 ft (100m) @ 1080P and 328 ft (100m) @ 4K/UHD using CAT6a/7 cable
UPC: 846352004866 In the Box Atlona UHD 4K HDMI Extender over 100M HDBaseT TX/RX with Ethernet, Control and PoE, and Return Optical Audio 1 x Transmitter 1 x Receiver User Guide Desktop Power Supply for Transmitter Detachable Power Cable IR Emitter P/N AT-IR-CS-TX Mounting Brackets 10 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona UHD 4K HDMI Extender over 100M HDBaseT TX RX with Ethernet, Control and PoE, and Return Optical Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-UHD-EX-100CEA-KIT Specs | | | Connectivity Technology | Wired | | Number of Input Devices Supported | 1 | | Number of Output Devices Supported | 1 | | Maximum Operating Distance | 328.08 ft | | | | Graphics Modes | 4K | | Maximum Video Resolution | 4096 x 2160 | | | | Network (RJ-45) | Yes | | HDMI In | Yes | | HDMI Out | Yes | | USB | Yes | | Serial Port | Yes | | Number of Network (RJ-45) Ports | 4 | | Number of HDMI Inputs | 1 | | Number of HDMI Outputs | 1 | | | | Media Type Supported | Twisted Pair | | Twisted Pair Cable Standard | Category 7 | | | | Height | 1" | | Width | 5.7" | | Depth | 3.5" | | Form Factor | Rack-mountable | | Weight (Approximate) | 14.46 oz | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 14.0 x 8.2 x 2.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
