ATN 5-20x X-Sight 4K Pro Digital

Search your instruction manual in PDF to download

User Manual for ATN 5-20x X-Sight 4K Pro Digital Night Vision Riflescope

Click to enlarge the picture
ATN 5-20x X-Sight 4K Pro Digital Night Vision Riflescope Contents of the user manual for the ATN 5-20x X-Sight 4K Pro Digital
  • Product category: Day/Night Systems ATN
  • Brand: ATN
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ATN Day/Night Systems

User manual for the ATN 5-20x X-Sight 4K Pro Digital contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ATN product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!



Product description

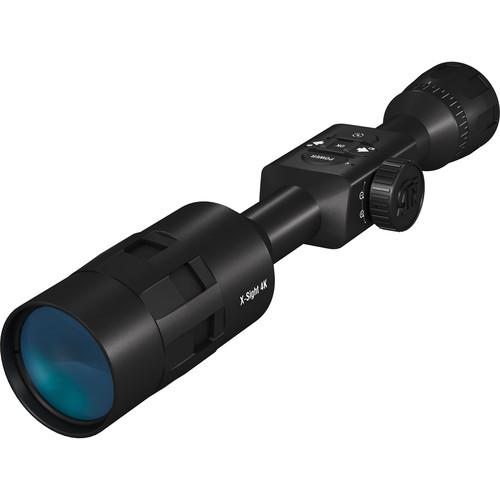

Update your collection with the ATN5-20x X-Sight 4K Pro Digital Night Vision Riflescope. Unlike common riflescopes, this digital night/day vision scope uses a 3864 x 2218 digital imaging sensor, a color display, and sophisticated electronics with wireless capability to deliver and capture images while still featuring a 30mm maintube for compatibility with your old rings. Using this scope enables you to see your targets or game during the day or in low light, record, and broadcast your activities and achievements directly from the scope via built-in Wi-Fi. For instance, its Dual Stream Video capability broadcasts videos over Wi-Fi and simultaneously records them on an external memory card. Other useful features include the electronic compass and a multitude of in-view functions, reticles, and ballistics calculators. Its Obsidian IV dual core processor seamlessly manages sensors, the micro-display, and Wi-Fi/Bluetooth connectivity. It allows you to activate and use layers of functionalities, various reticle patterns, and windage and ballistics data and calculators. Another highlight of this riflescope's capabilities is its Recoil-Activated Video (RAV), which automatically starts video recording (1080p at 30/60/120 fps) when a built-in accelerator senses a recoil. It allows you to stay completely immersed in action while also automatically capturing important moments right after you pull the trigger.

Other noteworthy highlights are the Smart Rangefinder, which estimates distances to your target and automatically adjusts point of impact, and the Ballistic Calculator, which takes into account your firearm, caliber, ammunition, range, wind, and aiming angle and makes trajectory corrections. This scope also has many built-in sensors that stamp your images and videos with date, time, and location.

The black anodized aluminum housing is durable and lightweight. It offers water resistance so you can use this scope in many weather conditions. On the top of this optic you will find a compact control pad with menu buttons and a knurled digital zoom knob on the left side. For attaching to your firearm, the scope includes three Picatinny/Weaver 30mm rings: two standard rings and one cantilever ring.
    Digital Night/Day Sensor
    • Night/Day vision ATN Ultra HD 4K M265 sensor
    • 3864 x 2218 resolution
    • ATN Obsidian IV dual core
      Optical Performance
      • 5-20x magnification via a side zoom wheel
      • High-definition (HD) objective optics
      • 5° angle of view
      • 33' minimum focus distance
      • 90mm eye relief
        Electronic Sensors
        • ATN Obsidian IV dual core
        • Wi-Fi and Bluetooth
        • Built-in microSD memory slot with a 64GB capacity
        • USB Type-C port for charging and PC connection
        • Electronic compass
        • 3D gyroscope
        • E-barometer
        • 3D accelerator
        • Microphone
          Display & Video Recording
          • 1280 x 720 HD display
          • 1080p videos at 30/60/120 fps recording resolution
          • Black hot, white hot, and color mode
          • Smooth Zoom provides seamless magnification adjustments
          • Captures JPEG images and MP4 videos
          • Dual Stream allows simultaneous streaming and recording
            Use and Handling
            • Intuitive user interface
            • Compact control pad on the top
            • Rotary zoom dial knob on the left side
            • In-view sensor readouts and status indicators
            • Smart Rangefinder feature estimates distances and adjusts point of impact
            • Ballistic Calculator makes corrections for your firearm, caliber, ammunition, range, wind, and aiming angle
            • One Shot Zero allows an easy way to zero the scope
            • RAV: recoil-activated video recording
              Construction Details
              • Aluminum alloy construction
              • 30mm maintube diameter
              • Impact-resistant electronics
              • Two straight and one cantilever 30mm Picatinny/Weaver rings are included
              • Weather-resistant performance
              UPC: 658175115069 In the Box ATN 5-20x X-Sight 4K Pro Digital Night Vision Riflescope (Matte Black)
            • Eyecup
            • Sunshade
            • IR850 Infrared Illuminator
            • 30mm Ring
            • 30mm Ring with Two Picatinny Points
            • 30mm Cantilever Ring
            • Cantilever Lower Ring Half
            • Upper Ring Half with Picatinny Mounting Points
            • USB Type-C Cable
            • Scope Cover
            • Lens Cloth
            • Limited 2-Year Warranty
            Table of Contents




Upload User Manual

Have you got an user manual for the ATN 5-20x X-Sight 4K Pro Digital Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

ATN X-Sight Specs

Array Configuration 3864 x 2218 ATN 4K M265 Sensor
Night and day vision capability
Magnification 5-20x
Field of View 5° maximum
Minimum Focus Distance 32.8' / 10.0 m
Eye Relief 90 mm
Maintube Diameter 30 mm
Processor ATN Obsidian IV dual core
Display 1280 x 720p HD display
Video Output Resolution 1080p at 30/60/120 fps
Image Format JPEG
Video Format MP4
Integrated Sensors 3D gyroscope
3D accelerometer
E-compass
Microphone
Wi-Fi Yes
Bluetooth Yes
External Memory microSD: 4-64 GB, class 10
Ports microSD
USB Type-C
Mobile Devices iOS & Android
Battery / Runtime 1 x Internal lithium rechargeable battery / 18 hours
Weatherproofing Weather resistant
Dimensions 14.9 x 3.0 x 3.0" / 37.9 x 7.6 x 7.6 cm
Weight 35.6 oz / 1.01 kg
Package Weight 4.71 lb
Box Dimensions (LxWxH) 16.9 x 6.55 x 3.85"

Rating

100% users recommend this product to others. And what about you?
Rating: 5.0 of 5

This product has already been rated by 33 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to ATN 5-20x X-Sight 4K Pro Digital Night Vision Riflescope

Subject: ERR msg on ATN X-SIGHT 4K PRO 5x20
