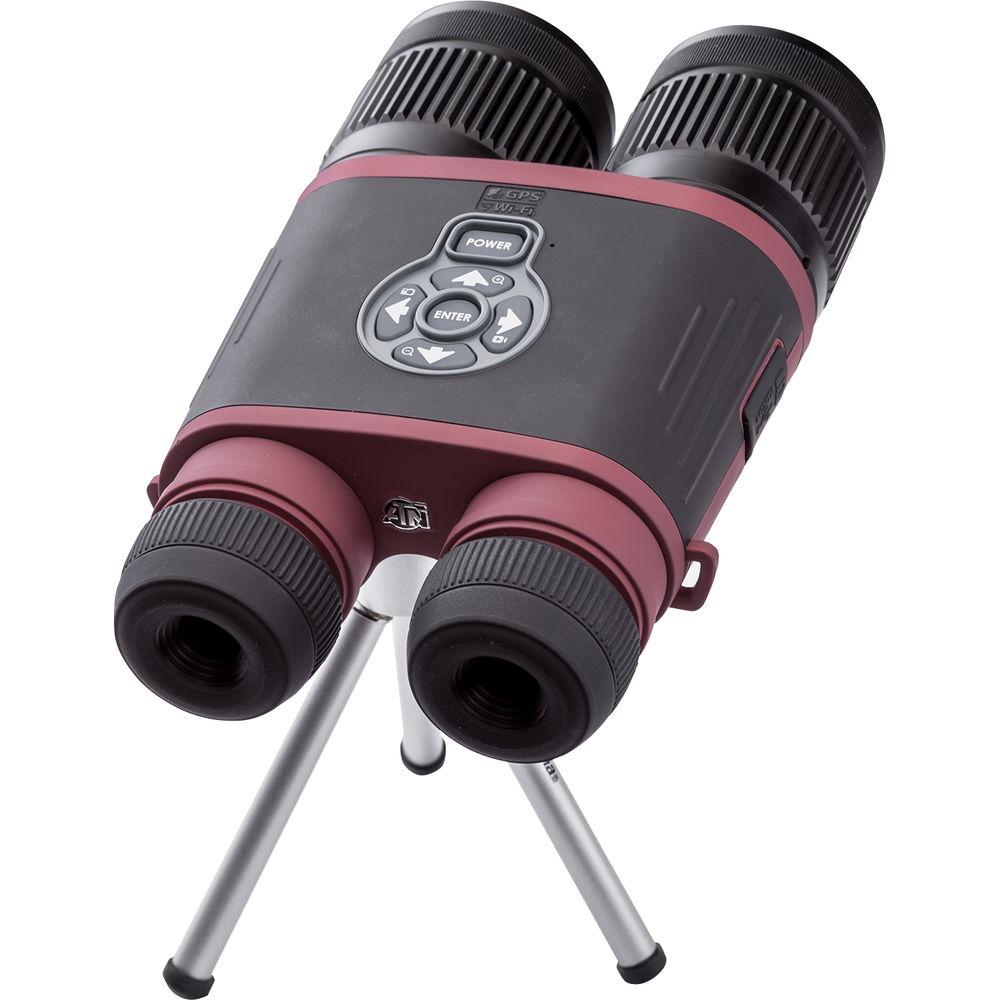

User Manual for ATN BinoX THD 384 4.5-18x50 Thermal Biocular Click to enlarge the picture
Contents of the user manual for the ATN BinoX THD 384 4.5-18x50 Thermal
- Product category: Thermal Imagers ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Thermal Imagers
 |
User manual for the ATN BinoX THD 384 4.5-18x50 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|
Product description Expand your hunting and outdoor activities with the ATN BinoX THD 384 4.5-18x50 Thermal Biocular with digital image stabilization. This imaging device allows users to see thermal signature of game, people, and warm objects through fog, smoke, and light foliage. In addition to simple viewing, the biocular allows saving your digital data on a microSD memory card (4-64GB). It also houses a multitude of electronic sensors to tag and stamp your images and videos with data. Along with infrared imagery, the 960 x 540 micro-display provides in-view readouts for a built-in GPS receiver, E-Compass, altimeter, and other sensors and functions. At 1 GHz processing speed, the Obsidian processor seamlessly manages sensors, a micro-display, 1080p HD video recording with sound, and Wi-Fi connectivity. Using the ATN Obsidian app, you can remotely review and share on social media the stored digital data. You can also relay it to a monitor via a built-in micro-HDMI port. Beyond its digital capabilities, the optical system features 4.5-18x magnification, a wide 6 x 4.7° field of view, and 33' minimum focusing distance.

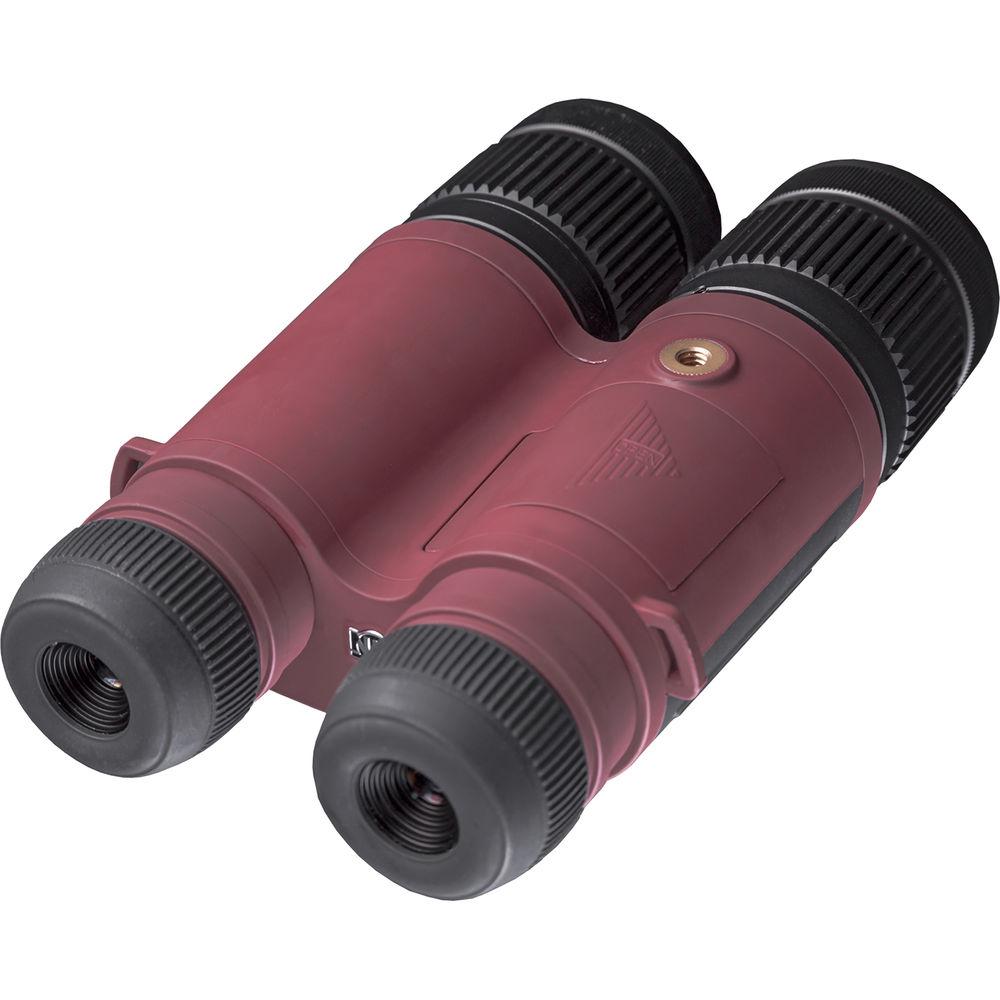

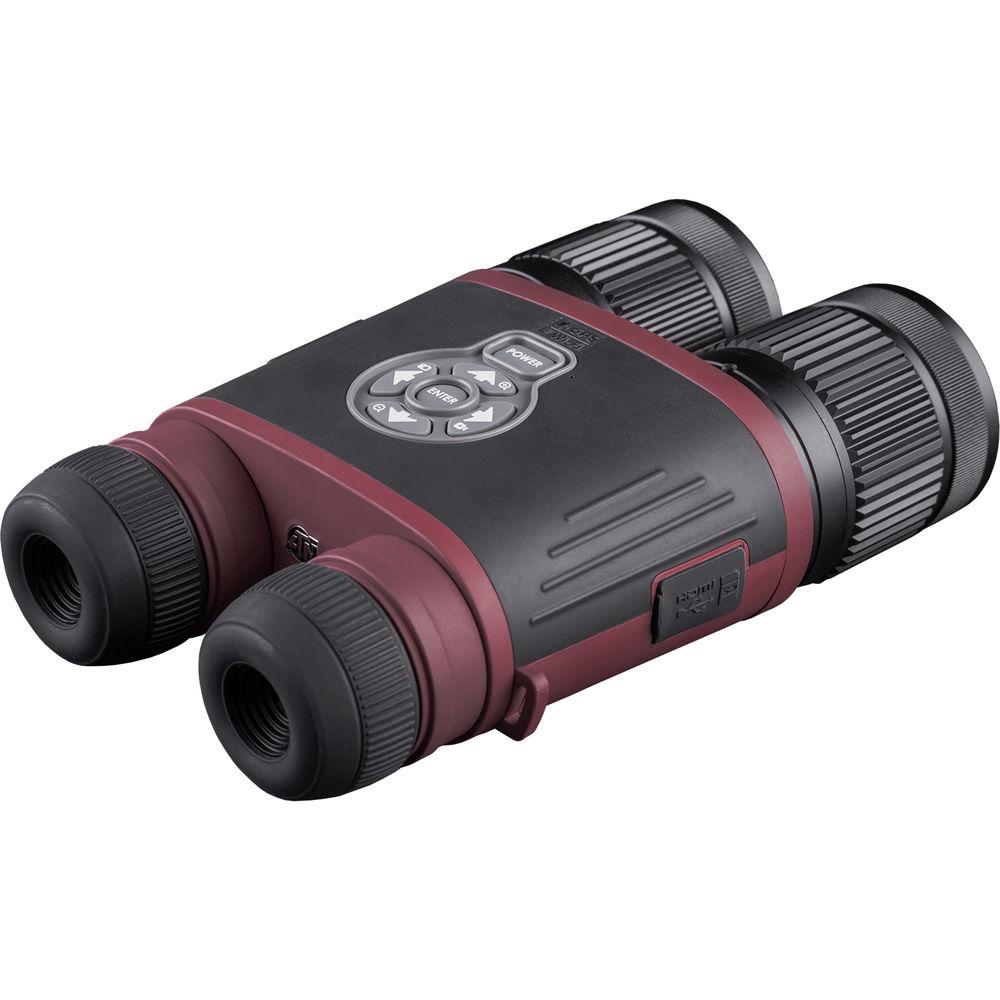

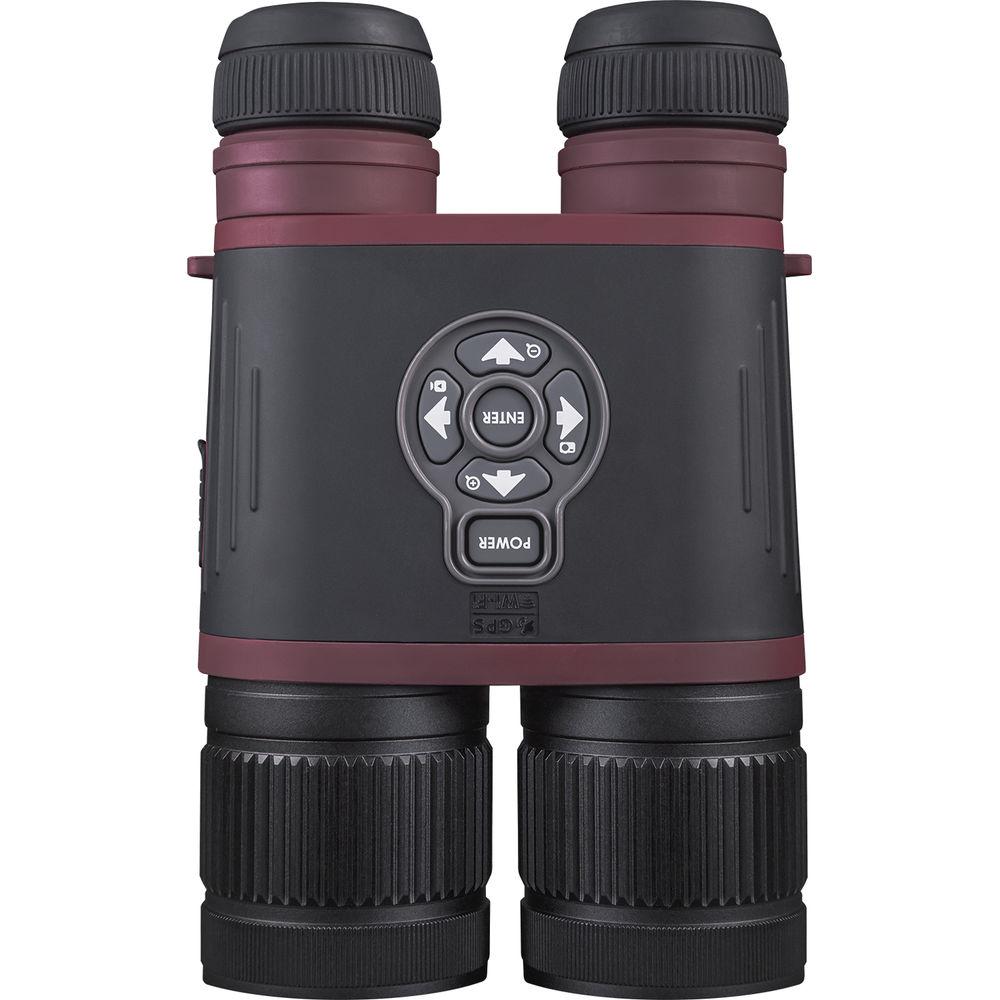

The ergonomic and housing is made of durable polymer with rubber armor. It is impact- and weather-resistant. To get the most out of your experience, it provides twist-up eyecups, diopter adjustment, and an adjustable interpupillary distance. On the top, you will find an easy-to-reach control pad, which will grant you access to the device's functions and features. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Thermal Imager
-
- 384 x 288 amorphous silicon array
- 50mK sensitivity
- 7-14µm spectral range
- Optical System
-
- 4.5-18x magnification
- 50mm objective diameter
- 33' minimum focus distance
- 6 x 4.7° angular field of view
- 10-30 mm eye relief
- Digital Imaging & Video Recording
-
- Digital image stabilization

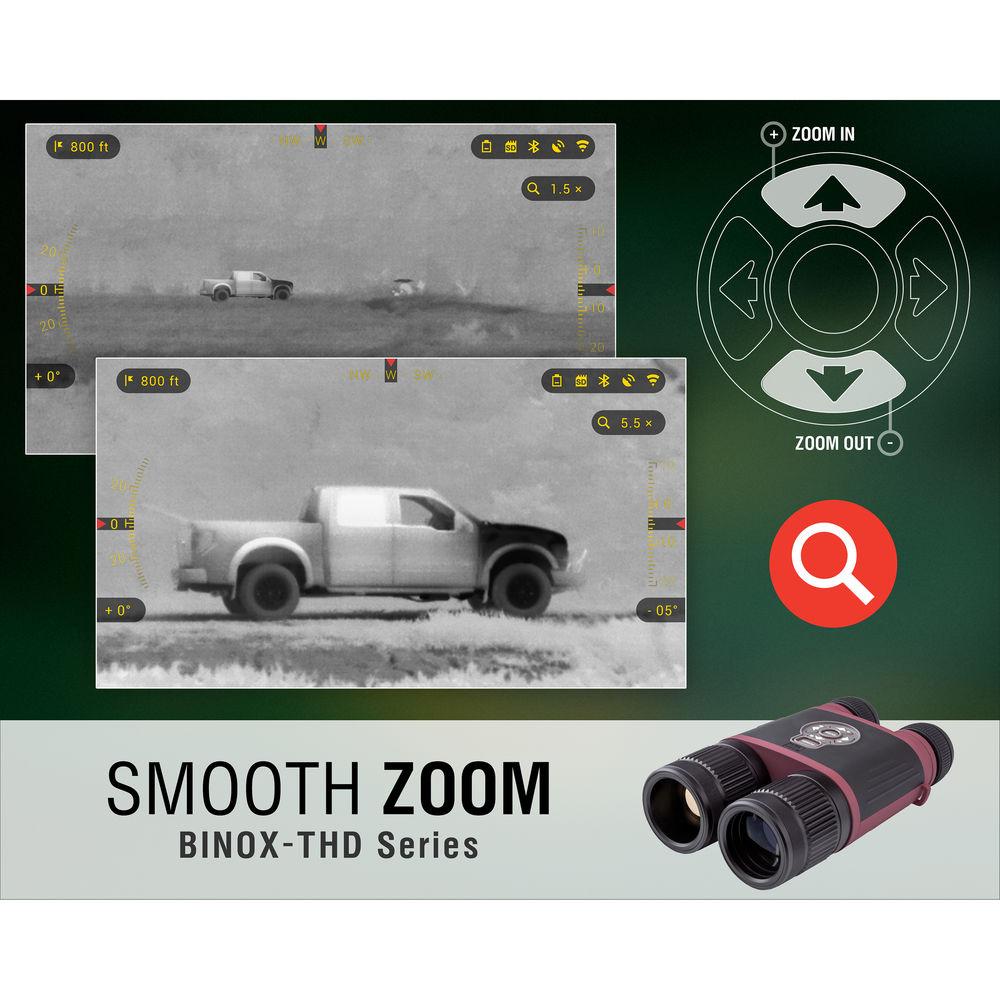

- Smooth zoom

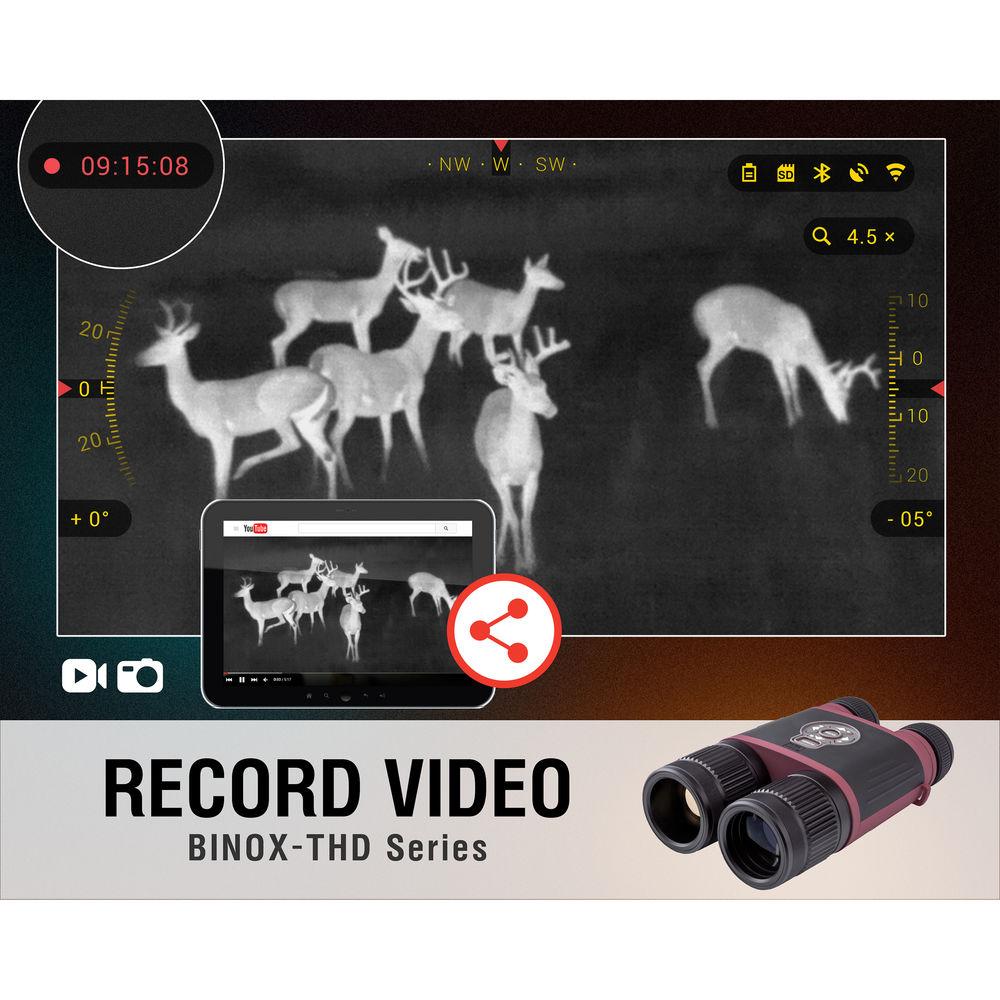

- 1080p full HD recording

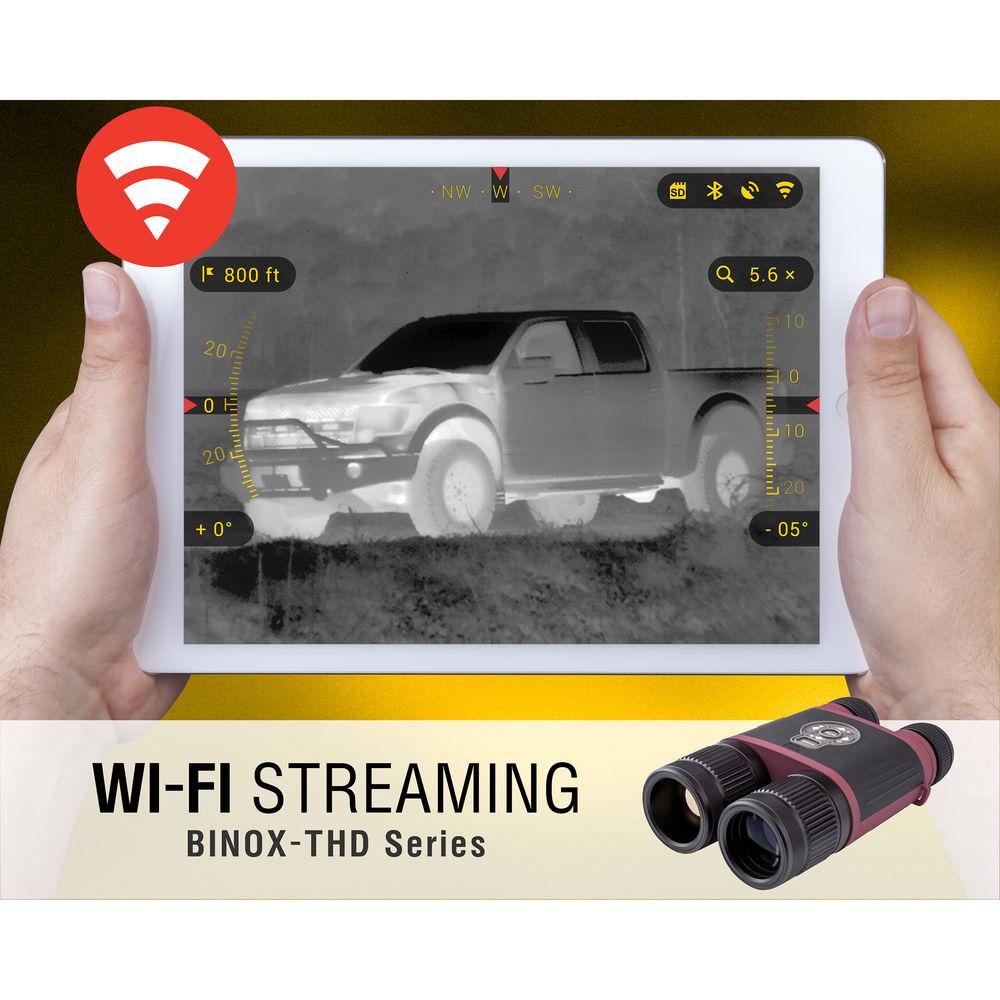

- ATN Obsidian app allows you to control your device, view a live stream, and review your data via Wi-Fi
- Use and Handling
-
- Intuitive user interface
- In-view sensor readouts and status indicators
- 60-70mm interpupillary distance
- Focusing wheel located on right ocular
- Two individual diopter adjustments for each eye
- Electronics Compatibility
-

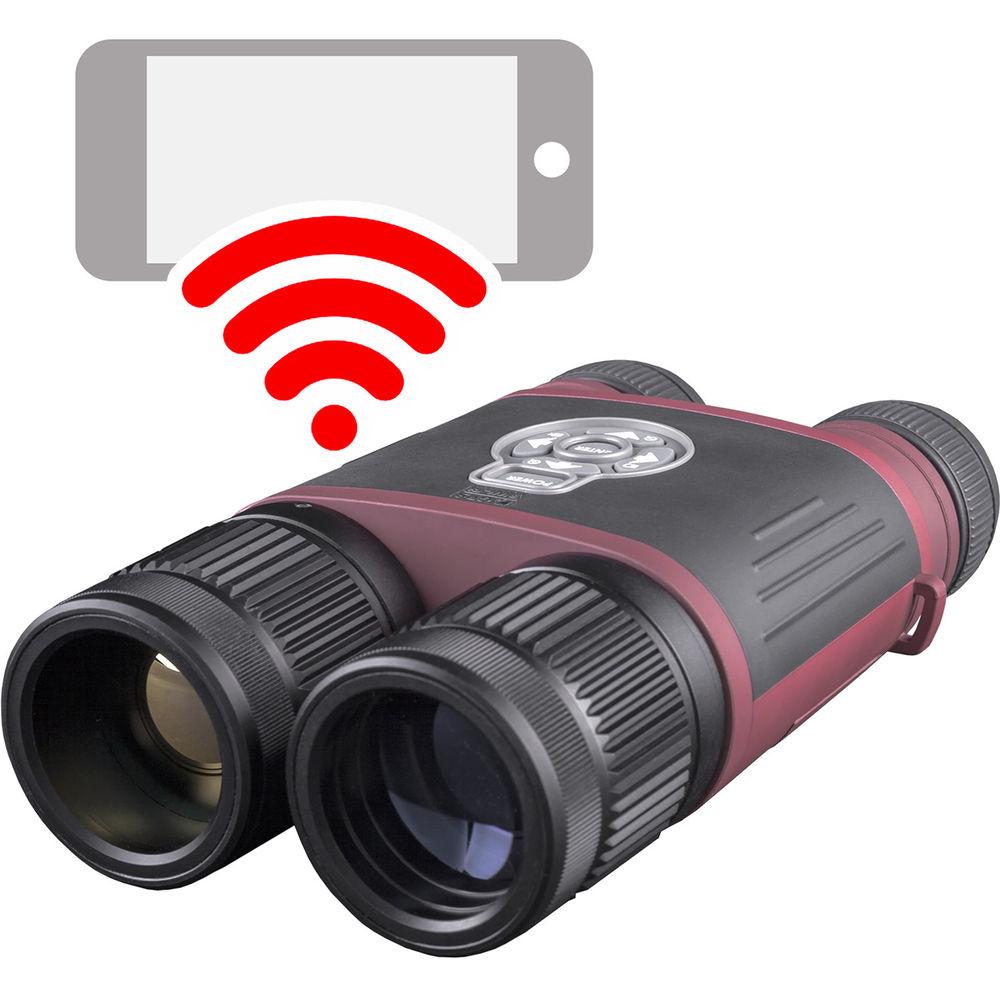

- Wi-Fi capability
- ATN Obsidian app allows remote reviewing, control, and sharing on social media
- Compatible with iOS and Android smart devices
- Onboard internal memory 4-64GB
- Built-in microSD memory slot
- Micro-HDMI and micro-USB ports
- GPS, E-Compass, 3D Gyroscope
-
- GPS: geotagging and elevation
- GS3 3D gyroscope
- E-compass
- E-barometer
- 3D accelerator
- 3D magnetometer Altimeter
- Microphone
- Construction Details
-
- Polymer construction
- Twist-up rubber eyecups
- Weather-resistant
UPC: 658175114611 In the Box ATN BinoX THD 384 4.5-18x50 Thermal Biocular (9 Hz, Matte Black) - 3 x CR123A Batteries
- Soft Carry Case
- Neck Strap
- 2 x Lens Caps
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN BinoX THD 384 4.5-18x50 Thermal Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN TIBNBXH384HZ9 Specs | Array Configuration | 384 x 288 amorphous silicon sensor | | Sensitivity | <50mK | | Spectral Response | 7-14 µm | | Magnification | 4.5-18x | | Angular Field of View | 6 x 4.7° | | Objective Lens Diameter | 50mm | | Eye Relief | 10-30 mm | | Interpupillary Distance | 60-70 mm | | PC Compatible | Yes | | Image Format | JPG | | Digital Video Format | MOV | | Video Recording Resolution | 1280 x 960 at 30 fps | | Integrated Sensors | GS3 3D gyroscope
3D accelerometer
3D magnetometer
E-compass
Microphone | | Video Out | NTSC | | Wi-Fi | Yes | | Compatible Mobile Operating Systems | iOS, Android | | External Memory | 4-64 GB | | Ports | microSD
Micro-USB
Micro-HDMI | | Battery / Runtime | 3 x CR123A batteries / 6-8 hours | | Weatherproofing | Weather-resistant | | Dimensions | 8.2 x 5.0 x 2.3" / 20.8 x 12.7 x 5.9 cm | | Weight | 29.6 oz / 839.2 g |
