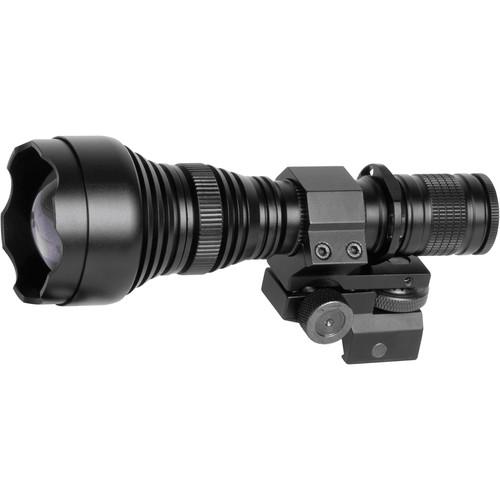

User Manual for ATN IR850 Pro Long-Range Infrared Illuminator Click to enlarge the picture
Contents of the user manual for the ATN IR850 Pro Long-Range Infrared Illuminator
- Product category: Laser Sights & Illuminators ATN
- Brand: ATN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATN Laser Sights & Illuminators
|
User manual for the ATN IR850 Pro Long-Range Infrared Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATN product will considerably shorten its lifespan!
|
Product description Enhance the visibility and range provided by your night vision device with the ATN IR850 Pro Long-Range Infrared Illuminator. This powerful LED illuminator can dramatically increase visibility in ultra-low light conditions or total darkness and produces 850mW of output power. It emits at 850nm and features an aspherical lens design for better beam management at longer ranges. The included adjustable mount also provides a mounting option to Picatinny/Weaver rails and has two-axis adjustments for aligning it with you line of sight.
For durability, the housing is crafted from lightweight and durable aluminum alloy and covered with an anti-scratch hard anodized finish. It is waterproof, rated IPX8, and has a protective crenellated bezel around the lens. Thanks to the flashlight-style design it also can be used as a handheld device and has a removable hexagonal anti-roll grip ring. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. UPC: 658175112990 In the Box ATN IR850 Pro Long-Range Infrared Illuminator (Matte Black) Charger 18650 Rechargeable Battery Adjustable Picatinny/Weaver Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATN IR850 Pro Long-Range Infrared Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATN ACMUIR85PR Specs | Lamp Type | LED | | Max Output / Runtime | 850 mW / Not provided by manufacturer | | Wavelength | 850 nm | | Beam Angle | Not provided by manufacturer | | Battery | 1 x 18650 battery | | Water Resistance | IPX8, waterproof | | Operating Temperature | -4 to 104°F / -20 to 40°C | | Dimensions | Length: 6.9" / 16.0 cm
Bell Diameter: 2.75" / 5.4 cm
Handle Diameter: 1" / 2.5 cm
Tailcap Diameter: 1.1" / 2.7 cm | | Weight | 13.4 oz / 380.0 g (with mount) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.2 x 4.5 x 2.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
